Cam levers, stainless steel with external thread, plastic thrust...

go back

Products
- Product news
  - New products
    - Cam levers, stainless steel with internal or external thread, plastic thrust washer and stainless steel stud
      - Cam levers, stainless steel with external thread, plastic thrust washer and stainless steel stud

Item description/product images

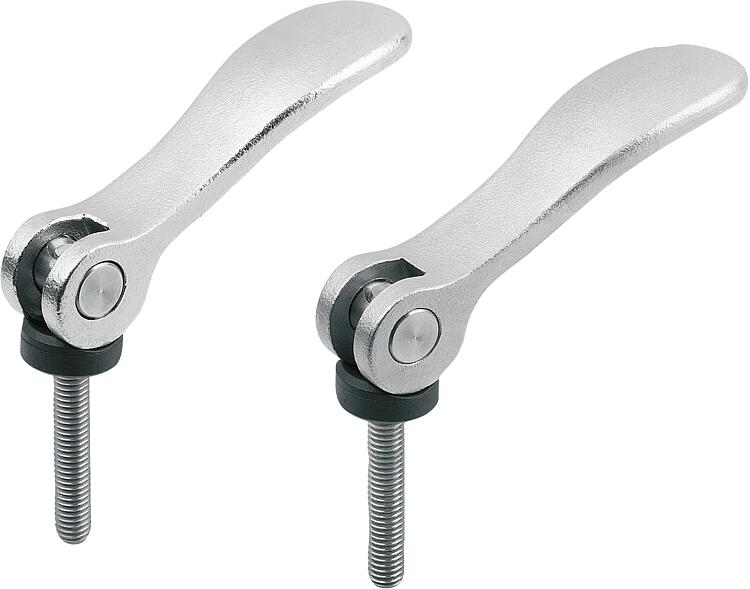

DescriptionProduct description:These cam levers have a technically optimised plastic thrust washer.
The thrust washer is made of a special high-performance plastic that guarantees very good wear and creep resistance. Material:

Handle stainless steel 1.4308.
Thrust washer high performance carbon-fibre reinforced thermoplastic.
Hinge pin and stud stainless steel 1.4305.

Version:Handle electropolished or abrasive blasted.
Thrust washer, black.
Hinge pin and stud bright.Note:Plastics are subject to creeping under load (retardation).Accessory:For slightly curved contact faces, a stainless steel washer B0570 can also be ordered.
This washer can be mounted between the thrust washer and the contact face.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

B0564_AG_Datasheet_32165_Cam_levers_stainless_steel_with_external_thread_plastic_thrust_washer_and_stainless_steel_stud--en

216 kB

Drawings

Item selection/filter

Order No.	Surface finish body	D	D1	D2	B	B1	H	H1	A	A1	L	Travel S	Clamping force F (kN)	Hand force FH N	Price
B0564.9512003X10	electropolished	M3	10,7	6	14,4	11,5	9	13,5	36,2	41,7	10	1	1,5	90	12.85 €
B0564.9512003X15	electropolished	M3	10,7	6	14,4	11,5	9	13,5	36,2	41,7	15	1	1,5	90	12.85 €
B0564.9512003X30	electropolished	M3	10,7	6	14,4	11,5	9	13,5	36,2	41,7	30	1	1,5	90	12.85 €
B0564.9512004X10	electropolished	M4	10,7	6	14,4	11,5	9	13,5	36,2	41,7	10	1	1,5	90	12.85 €
B0564.9512004X15	electropolished	M4	10,7	6	14,4	11,5	9	13,5	36,2	41,7	15	1	1,5	90	12.85 €
B0564.9512004X30	electropolished	M4	10,7	6	14,4	11,5	9	13,5	36,2	41,7	30	1	1,5	90	12.85 €
B0564.0512004X15	electropolished	M4	13,8	8	18	13	11,4	17,2	52,3	59,1	15	1	2,5	100	13.67 €
B0564.0512004X20	electropolished	M4	13,8	8	18	13	11,4	17,2	52,3	59,1	20	1	2,5	100	13.67 €
B0564.0512004X30	electropolished	M4	13,8	8	18	13	11,4	17,2	52,3	59,1	30	1	2,5	100	13.67 €
B0564.0512005X20	electropolished	M5	13,8	8	18	13	11,4	17,2	52,3	59,1	20	1	2,5	100	13.67 €
B0564.0512005X30	electropolished	M5	13,8	8	18	13	11,4	17,2	52,3	59,1	30	1	2,5	100	13.67 €
B0564.0512005X40	electropolished	M5	13,8	8	18	13	11,4	17,2	52,3	59,1	40	1	2,5	100	14.18 €
B0564.0512005X50	electropolished	M5	13,8	8	18	13	11,4	17,2	52,3	59,1	50	1	2,5	100	14.18 €
B0564.1512005X20	electropolished	M5	16	9	21,5	15	14,7	22,2	70,4	79,2	20	1,2	4	120	16.07 €
B0564.1512005X30	electropolished	M5	16	9	21,5	15	14,7	22,2	70,4	79,2	30	1,2	4	120	16.07 €
B0564.1512005X40	electropolished	M5	16	9	21,5	15	14,7	22,2	70,4	79,2	40	1,2	4	120	16.68 €
B0564.1512005X50	electropolished	M5	16	9	21,5	15	14,7	22,2	70,4	79,2	50	1,2	4	120	16.68 €
B0564.1512006X20	electropolished	M6	16	9	21,5	15	14,7	22,2	70,4	79,2	20	1,2	4	120	16.07 €
B0564.1512006X30	electropolished	M6	16	9	21,5	15	14,7	22,2	70,4	79,2	30	1,2	4	120	16.07 €
B0564.1512006X40	electropolished	M6	16	9	21,5	15	14,7	22,2	70,4	79,2	40	1,2	4	120	16.68 €
B0564.1512006X50	electropolished	M6	16	9	21,5	15	14,7	22,2	70,4	79,2	50	1,2	4	120	16.68 €
B0564.2512008X25	electropolished	M8	25	11	33,3	24	18,3	28,8	96	108	25	1,5	8	350	21.87 €
B0564.2512008X30	electropolished	M8	25	11	33,3	24	18,3	28,8	96	108	30	1,5	8	350	21.87 €
B0564.2512008X40	electropolished	M8	25	11	33,3	24	18,3	28,8	96	108	40	1,5	8	350	22.53 €
B0564.2512008X50	electropolished	M8	25	11	33,3	24	18,3	28,8	96	108	50	1,5	8	350	22.53 €
B0564.2512010X25	electropolished	M10	25	11	33,3	24	18,3	28,8	96	108	25	1,5	8	350	21.87 €
B0564.2512010X30	electropolished	M10	25	11	33,3	24	18,3	28,8	96	108	30	1,5	8	350	21.87 €
B0564.2512010X40	electropolished	M10	25	11	33,3	24	18,3	28,8	96	108	40	1,5	8	350	22.53 €
B0564.2512010X50	electropolished	M10	25	11	33,3	24	18,3	28,8	96	108	50	1,5	8	350	22.53 €
B0564.9512303X10	blasted	M3	10,7	6	14,4	11,5	9	13,5	36,2	41,7	10	1	1,5	90	11.57 €
B0564.9512303X15	blasted	M3	10,7	6	14,4	11,5	9	13,5	36,2	41,7	15	1	1,5	90	11.57 €
B0564.9512303X30	blasted	M3	10,7	6	14,4	11,5	9	13,5	36,2	41,7	30	1	1,5	90	11.57 €
B0564.9512304X10	blasted	M4	10,7	6	14,4	11,5	9	13,5	36,2	41,7	10	1	1,5	90	11.57 €
B0564.9512304X15	blasted	M4	10,7	6	14,4	11,5	9	13,5	36,2	41,7	15	1	1,5	90	11.57 €
B0564.9512304X30	blasted	M4	10,7	6	14,4	11,5	9	13,5	36,2	41,7	30	1	1,5	90	11.57 €
B0564.0512304X15	blasted	M4	13,8	8	18	13	11,4	17,2	52,3	59,1	15	1	2,5	100	12.28 €
B0564.0512304X20	blasted	M4	13,8	8	18	13	11,4	17,2	52,3	59,1	20	1	2,5	100	12.28 €
B0564.0512304X30	blasted	M4	13,8	8	18	13	11,4	17,2	52,3	59,1	30	1	2,5	100	12.28 €
B0564.0512305X20	blasted	M5	13,8	8	18	13	11,4	17,2	52,3	59,1	20	1	2,5	100	12.28 €
B0564.0512305X30	blasted	M5	13,8	8	18	13	11,4	17,2	52,3	59,1	30	1	2,5	100	12.28 €
B0564.0512305X40	blasted	M5	13,8	8	18	13	11,4	17,2	52,3	59,1	40	1	2,5	100	12.76 €
B0564.0512305X50	blasted	M5	13,8	8	18	13	11,4	17,2	52,3	59,1	50	1	2,5	100	12.76 €
B0564.1512305X20	blasted	M5	16	9	21,5	15	14,7	22,2	70,4	79,2	20	1,2	4	120	14.46 €
B0564.1512305X30	blasted	M5	16	9	21,5	15	14,7	22,2	70,4	79,2	30	1,2	4	120	14.46 €
B0564.1512305X40	blasted	M5	16	9	21,5	15	14,7	22,2	70,4	79,2	40	1,2	4	120	15.01 €
B0564.1512305X50	blasted	M5	16	9	21,5	15	14,7	22,2	70,4	79,2	50	1,2	4	120	15.01 €
B0564.1512306X20	blasted	M6	16	9	21,5	15	14,7	22,2	70,4	79,2	20	1,2	4	120	14.46 €
B0564.1512306X30	blasted	M6	16	9	21,5	15	14,7	22,2	70,4	79,2	30	1,2	4	120	14.46 €
B0564.1512306X40	blasted	M6	16	9	21,5	15	14,7	22,2	70,4	79,2	40	1,2	4	120	15.01 €
B0564.1512306X50	blasted	M6	16	9	21,5	15	14,7	22,2	70,4	79,2	50	1,2	4	120	15.01 €
B0564.2512308X25	blasted	M8	25	11	33,3	24	18,3	28,8	96	108	25	1,5	8	350	19.66 €
B0564.2512308X30	blasted	M8	25	11	33,3	24	18,3	28,8	96	108	30	1,5	8	350	19.66 €
B0564.2512308X40	blasted	M8	25	11	33,3	24	18,3	28,8	96	108	40	1,5	8	350	20.28 €
B0564.2512308X50	blasted	M8	25	11	33,3	24	18,3	28,8	96	108	50	1,5	8	350	20.28 €
B0564.2512310X25	blasted	M10	25	11	33,3	24	18,3	28,8	96	108	25	1,5	8	350	19.66 €
B0564.2512310X30	blasted	M10	25	11	33,3	24	18,3	28,8	96	108	30	1,5	8	350	19.66 €
B0564.2512310X40	blasted	M10	25	11	33,3	24	18,3	28,8	96	108	40	1,5	8	350	20.28 €
B0564.2512310X50	blasted	M10	25	11	33,3	24	18,3	28,8	96	108	50	1,5	8	350	20.28 €
