Clevis joints stainless steel DIN 71752
B0432

Clevis joints stainless steel DIN 71752

go back

Item description/product images

DescriptionMaterial:

Stainless steel 1.4305.

Version:Bright.
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 B0432_Datasheet_33901_Clevis_joints_stainless_steel_DIN_71752--en 193 kB

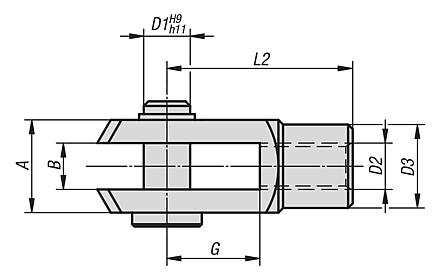

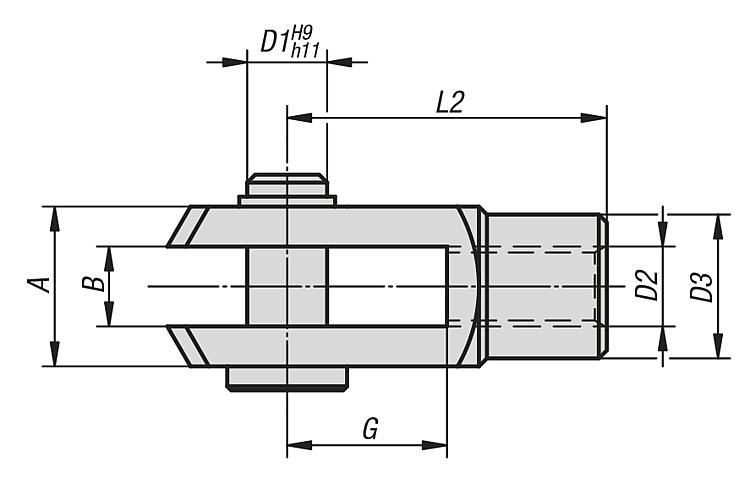

Drawings

Clevis joints stainless steel DIN 71752

Item selection/filter

Order No.

Version

BGD1D2D3L2ACADAcc.PriceOrder
B0432.0510RH thread5105M592010 8.95 €
B0432.0612RH thread6126M6102412 9.92 €
B0432.0816RH thread8168M8143216 13.83 €
B0432.0832RH thread8328M8144816 15.24 €
B0432.10120RH thread102010M10x1,25184020 17.20 €
B0432.1020RH thread102010M10184020 16.39 €
B0432.1040RH thread104010M10186020 19.06 €
B0432.12124RH thread122412M12x1,25204824 26.52 €
B0432.12148RH thread124812M12x1,25207224 30.01 €
B0432.1224RH thread122412M12204824 22.64 €
B0432.1248RH thread124812M12207224 28.60 €
B0432.1428RH thread142814M14245627 36.26 €
B0432.16132RH thread163216M16x1,5266432 48.26 €
B0432.1632RH thread163216M16266432 45.94 €
B0432.2040RH thread204020M20348040 60.76 €
B0432.05101LH thread5105M592010 9.07 €
B0432.06121LH thread6126M6102412 10.00 €
B0432.08161LH thread8168M8143216 14.30 €
B0432.10201LH thread102010M10184020 19.11 €
B0432.12241LH thread122412M12204824 27.92 €
B0432.16321LH thread163216M16266432 59.33 €
B0432.20401LH thread204020M20348040 90.74 €
