B0403

Side clamps

go back

Products
- Product overview
  - Clamping elements
    - Side clamp
      - Side clamps

Item description/product images

Show/filter all items

DescriptionMaterial:Steel.Version:Case-hardened and black oxidised.Note:This is a quick-action side clamp where workpieces are clamped by rotating a cam wheel which exerts pressure on the swivel jaw, simultaneously producing a positive down force.

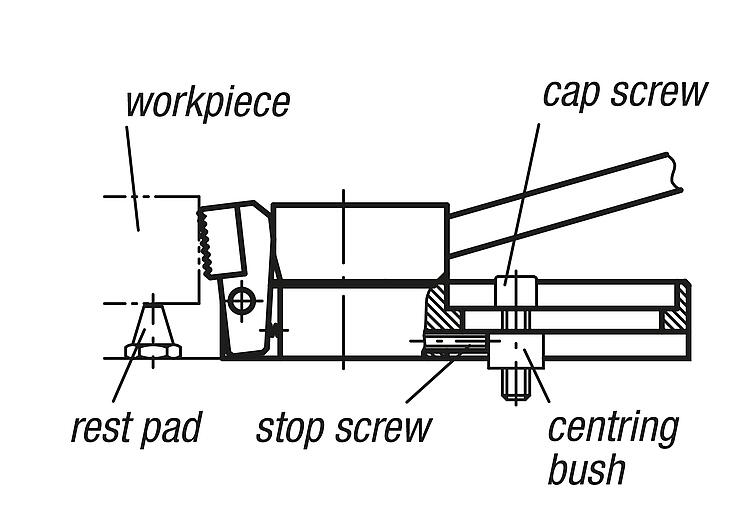

Using the stop screw and centring bush (see diagram), the side clamp can be mounted and positioned on a modular grid system.

The versions B0403.006010, B0403.006015, B0403.006030 and B0403.006035 have 2 round carbide inserts.Clamping force:B0403.006... = 3800 N
B0403.010... = 7200 N

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet B0403 Side clamps

269 kB

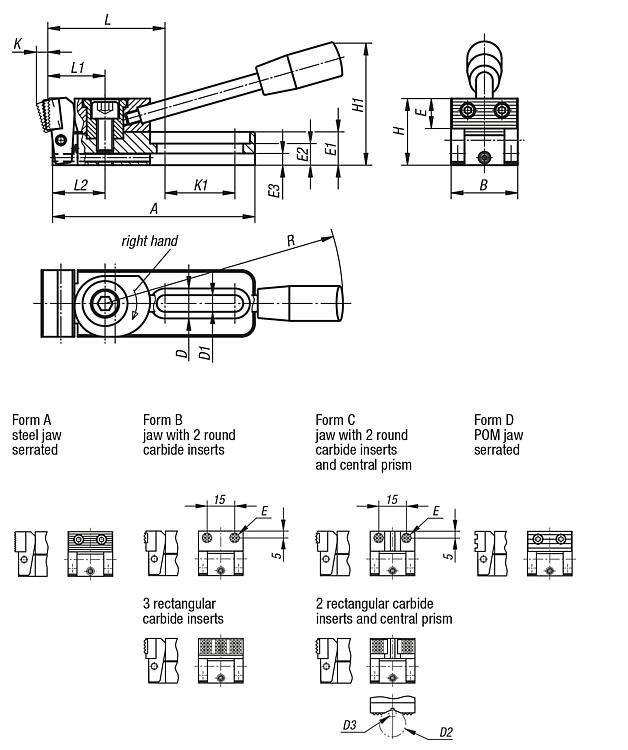

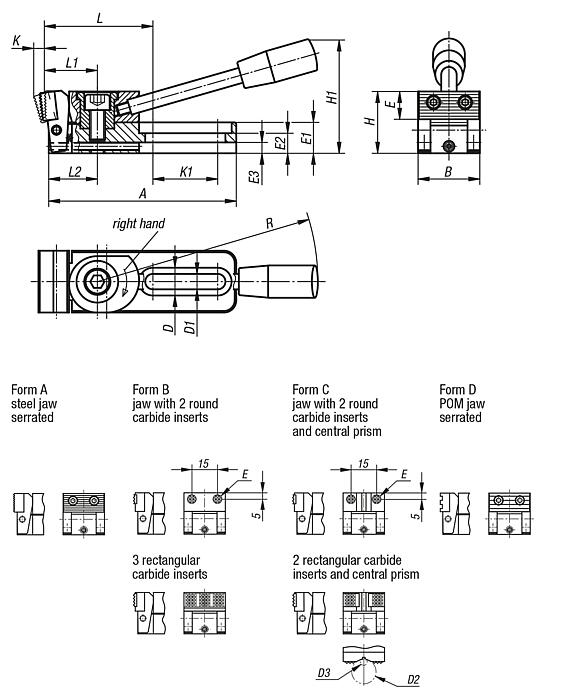

Drawings (total overview)

Side clamps

More information

Drawings

Item selection/filter

Order No.	Form	Version 1	A	B	D	D1	E	E1	E2	E3	H	H1	K	K1	L	L1	L2	R	F=Retaining force N	Price
B0403.006005	A	right	78	25	12	6,2	11	12	8	4	25	45	4	26	46,5	22	20	110	3800	134.34 €
B0403.010005	A	right	121,5	40	18	10,2	18	20	13	7	40	74	6	42	71	35	31,5	143	7200	192.17 €
B0403.006025	A	left	78	25	12	6,2	11	12	8	4	25	45	4	26	46,5	22	20	110	3800	134.34 €
B0403.010025	A	left	121,5	40	18	10,2	18	20	13	7	40	74	6	42	71	35	31,5	143	7200	192.17 €

Side clamps

More information

Drawings

Item selection/filter

Order No.	Form	Version 1	A	B	D	D1	E	E1	E2	E3	H	H1	K	K1	L	L1	L2	R	F=Retaining force N	Price
B0403.006010	B	right	78	25	12	6,2	ø8	12	8	4	24	45	3,5	26	46,5	22	20	110	3800	134.50 €
B0403.010010	B	right	121,5	40	18	10,2	12,7	20	13	7	39	74	5,5	42	73	35	31,5	143	7200	220.26 €
B0403.006030	B	left	78	25	12	6,2	ø8	12	8	4	24	45	3,5	26	46,5	22	20	110	3800	134.50 €
B0403.010030	B	left	121,5	40	18	10,2	12,7	20	13	7	39	74	5,5	42	73	35	31,5	143	7200	220.26 €

Side clamps

More information

Drawings

Item selection/filter

Order No.	Form	Version 1	A	B	D	D1	D2 max.	D3 min.	E	E1	E2	E3	H	H1	K	K1	L	L1	L2	R	F=Retaining force N	Price
B0403.006015	C	right	78	25	12	6,2	9,5	2,5	ø8	12	8	4	24	45	3,5	26	46,5	22	20	110	3800	139.06 €
B0403.010015	C	right	121,5	40	18	10,2	27	4,5	12,7	20	13	7	39	74	5,5	42	73	35	31,5	143	7200	218.70 €
B0403.006035	C	left	78	25	12	6,2	9,5	2,5	ø8	12	8	4	24	45	3,5	26	46,5	22	20	110	3800	138.85 €
B0403.010035	C	left	121,5	40	18	10,2	27	4,5	12,7	20	13	7	39	74	5,5	42	73	35	31,5	143	7200	218.70 €

Side clamps

More information

Drawings

Item selection/filter

Order No.	Form	Version 1	A	B	D	D1	E	E1	E2	E3	H	H1	K	K1	L	L1	L2	R	F=Retaining force N	Price
B0403.006020	D	right	78	25	12	6,2	11	12	8	4	25	45	4	26	46,5	22	20	110	3800	134.50 €
B0403.010020	D	right	121,5	40	18	10,2	18	20	13	7	40	74	6	42	70,5	35	31,5	143	7200	193.71 €
B0403.006040	D	left	78	25	12	6,2	11	12	8	4	25	45	4	26	46,5	22	20	110	3800	136.99 €
B0403.010040	D	left	121,5	40	18	10,2	18	20	13	7	40	74	6	42	70,5	35	31,5	143	7200	193.71 €
