B0565_IGCam levers, plastic with internal thread, plastic thrust washer |
go back |
|
Item description/product images |
|
|

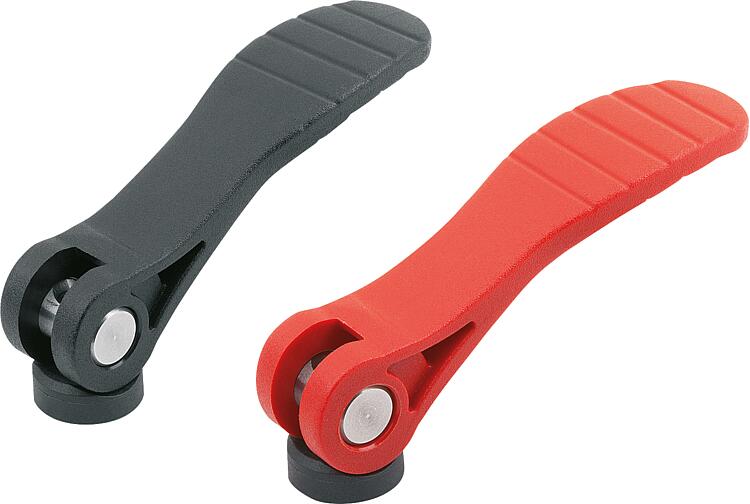

DescriptionProduct description:These cam levers have a technically optimised plastic thrust washer.
The thrust washer is made of a special high-performance plastic that guarantees very good wear and creep resistance. Material:Handle PA 6.6 fibreglass reinforced plastic
Thrust washer high performance carbon-fibre reinforced thermoplastic.
Hinge pin stainless steel 1.4305. Version:Grip black or traffic red RAL3020.
Thrust washer black.
Hinge pin bright.Note:Plastics are subject to creeping under load (retardation).Accessory:For slightly curved contact faces, a stainless steel washer B0570 can also be ordered.
This washer can be mounted between the thrust washer and the contact face. DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Component
material | Main
colour | D | D1 | D2 | B | B1 | H | H1 | A | A1 | Travel
S | Clamping
force
F (kN) | Hand
force
FH N | CAD | Acc. | Price | Order |
|---|
| B0565.1521105 | steel | black | M5 | 16 | 9 | 22 | 16 | 14 | 23,2 | 71,5 | 79,6 | 1,15 | 2,5 | 125 | | | 5.04 € | | | B0565.1521106 | steel | black | M6 | 16 | 9 | 22 | 16 | 14 | 23,2 | 71,5 | 79,6 | 1,15 | 2,5 | 125 | | | 5.04 € | | | B0565.2521108 | steel | black | M8 | 25 | 11 | 33 | 24,2 | 16,3 | 27,9 | 100 | 110 | 1,5 | 5 | 170 | | | 5.90 € | | | B0565.1531105 | stainless steel | black | M5 | 16 | 9 | 22 | 16 | 14 | 23,2 | 71,5 | 79,6 | 1,15 | 2,5 | 125 | | | 7.61 € | | | B0565.1531106 | stainless steel | black | M6 | 16 | 9 | 22 | 16 | 14 | 23,2 | 71,5 | 79,6 | 1,15 | 2,5 | 125 | | | 7.61 € | | | B0565.2531108 | stainless steel | black | M8 | 25 | 11 | 33 | 24,2 | 16,3 | 27,9 | 100 | 110 | 1,5 | 5 | 170 | | | 8.85 € | | | B0565.15218405 | steel | traffic red RAL 3020 | M5 | 16 | 9 | 22 | 16 | 14 | 23,2 | 71,5 | 79,6 | 1,15 | 2,5 | 125 | | | 5.04 € | | | B0565.15218406 | steel | traffic red RAL 3020 | M6 | 16 | 9 | 22 | 16 | 14 | 23,2 | 71,5 | 79,6 | 1,15 | 2,5 | 125 | | | 5.04 € | | | B0565.25218408 | steel | traffic red RAL 3020 | M8 | 25 | 11 | 33 | 24,2 | 16,3 | 27,9 | 100 | 110 | 1,5 | 5 | 170 | | | 5.90 € | | | B0565.15318405 | stainless steel | traffic red RAL 3020 | M5 | 16 | 9 | 22 | 16 | 14 | 23,2 | 71,5 | 79,6 | 1,15 | 2,5 | 125 | | | 7.61 € | | | B0565.15318406 | stainless steel | traffic red RAL 3020 | M6 | 16 | 9 | 22 | 16 | 14 | 23,2 | 71,5 | 79,6 | 1,15 | 2,5 | 125 | | | 7.61 € | | | B0565.25318408 | stainless steel | traffic red RAL 3020 | M8 | 25 | 11 | 33 | 24,2 | 16,3 | 27,9 | 100 | 110 | 1,5 | 5 | 170 | | | 8.85 € | |
