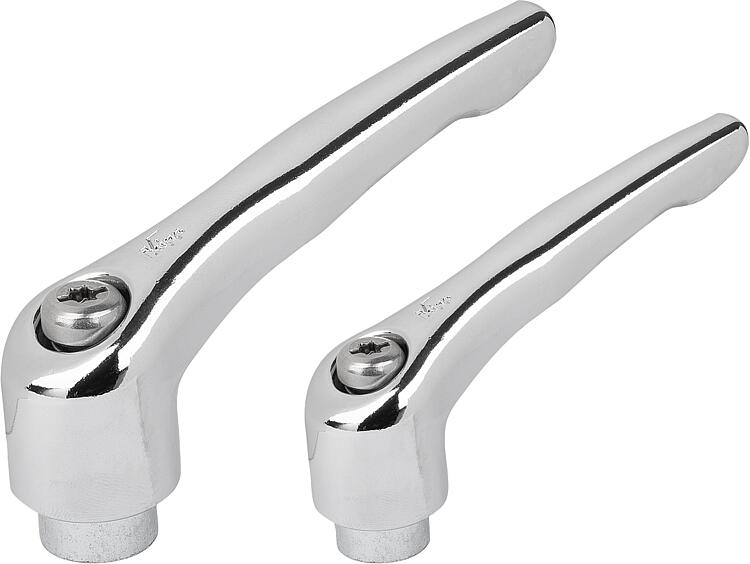

B0233_HVClamping levers, zinc with internal thread, steel parts... |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Handle die-cast zinc DIN EN 12844.
Steel parts grade 5.8.Version:Handle high-gloss chromed.
Steel parts trivalent blue-passivated.On request:Other threads, colours and special versions.
Dimension “H1” available in other lengths at extra charge. DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Main
colour | Surface finish
body | Size | X | T | D | D1 | D2 | H | H1 | H2 | H3 | H4 | A | A1 | B | No. of
teeth
| CAD | Acc. | Price | Order |
|---|
| B0233.9036 | silver | high-gloss chromed | 9 | M3 | 6 | 8 | 11 | 11,5 | 21,4 | 4 | 11,9 | 24 | 27 | 22 | 27,7 | 6,4 | 12 |  | | 5.55 € | | | B0233.9046 | silver | high-gloss chromed | 9 | M4 | 6 | 8 | 11 | 11,5 | 21,4 | 4 | 11,9 | 24 | 27 | 22 | 27,7 | 6,4 | 12 | | | 5.55 € | | | B0233.9056 | silver | high-gloss chromed | 9 | M5 | 6 | 8 | 11 | 11,5 | 21,4 | 4 | 11,9 | 24 | 27 | 22 | 27,7 | 6,4 | 12 | | | 5.55 € | | | B0233.0036 | silver | high-gloss chromed | 0 | M3 | 9 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | | | 5.84 € | | | B0233.0046 | silver | high-gloss chromed | 0 | M4 | 9 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | | | 5.84 € | | | B0233.0056 | silver | high-gloss chromed | 0 | M5 | 9 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 30 | 33 | 30 | 37 | 7 | 16 | | | 5.84 € | | | B0233.1046 | silver | high-gloss chromed | 1 | M4 | 9 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | | | 5.84 € | | | B0233.1056 | silver | high-gloss chromed | 1 | M5 | 9 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | | | 5.84 € | | | B0233.1066 | silver | high-gloss chromed | 1 | M6 | 9 | 10 | 13 | 14 | 24,5 | 4 | 14,5 | 31 | 34 | 40 | 47 | 7 | 16 | | | 5.84 € | | | B0233.2066 | silver | high-gloss chromed | 2 | M6 | 12 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | | | 7.35 € | | | B0233.2086 | silver | high-gloss chromed | 2 | M8 | 12 | 13,5 | 18,5 | 19 | 28,5 | 6,5 | 17,5 | 42,5 | 45,5 | 65 | 74,5 | 9,5 | 20 | | | 7.35 € | | | B0233.3086 | silver | high-gloss chromed | 3 | M8 | 14 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | | | 8.06 € | | | B0233.3106 | silver | high-gloss chromed | 3 | M10 | 14 | 16 | 21 | 22 | 37 | 10 | 24 | 54,5 | 58,5 | 80 | 91 | 11 | 22 | | | 8.06 € | | | B0233.4106 | silver | high-gloss chromed | 4 | M10 | 17 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | | | 9.41 € | | | B0233.4126 | silver | high-gloss chromed | 4 | M12 | 17 | 19 | 27 | 27,5 | 43 | 10 | 27 | 63 | 67,5 | 95 | 109 | 13 | 24 | | | 9.41 € | | | B0233.5126 | silver | high-gloss chromed | 5 | M12 | 23 | 23 | 31 | 32 | 49 | 12 | 31,5 | 73 | 77,5 | 110 | 126 | 15 | 26 | | | 11.79 € | | | B0233.5166 | silver | high-gloss chromed | 5 | M16 | 23 | 23 | 31 | 32 | 49 | 12 | 31,5 | 73 | 77,5 | 110 | 126 | 15 | 26 | | | 11.79 € | |
