B0582Cam-action indexing plungers, stainless steel with square sleeve |
go back |
|
Item description/product images |
|
|
DescriptionProduct description:Cam-action indexing plunger are used where any change in locking position due to lateral forces should be prevented.
Turning the grip through 180° retracts the indexing pin, enabling a change in the indexed position.
The notch ensures that the grip remains in this position and the indexing pin remains retracted.
Material:Grip 1.4308.
Sleeve 1.4301.
Indexing pin 1.4305.
Spring 1.4310.
Grip cap thermoplastic PA.Version:Sleeve and grip bright.
Indexing pin ground and left bright.
Spring bright.

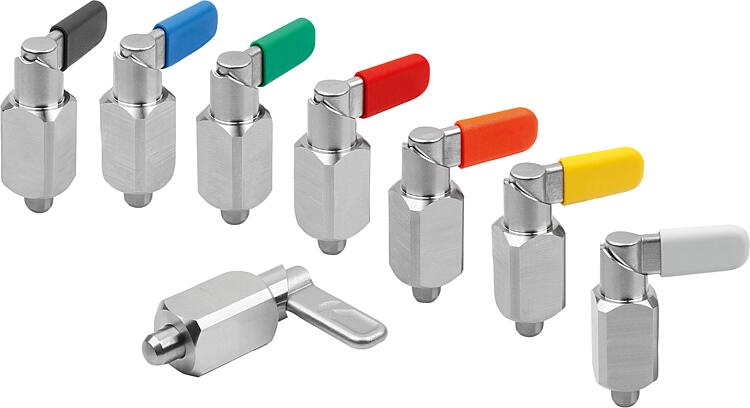

Grip cap in various colours:
-black grey RAL 7021
-pure orange RAL 2004
-colza yellow RAL 1021
-traffic red RAL 3020
-signal green RAL 6032
-traffic blue RAL 5017
-light grey RAL 7035Note:The square sleeve makes these plungers suitable for welding. To prevent overheating the spring, positioning with spot welding is recommended.Advantages:Turning the grip through 180° retracts the pin.
Optionally available with coloured plastic grip caps.
Square sleeve for welding.On request:Special versions.
Accessory:Positioning bushes B0063.

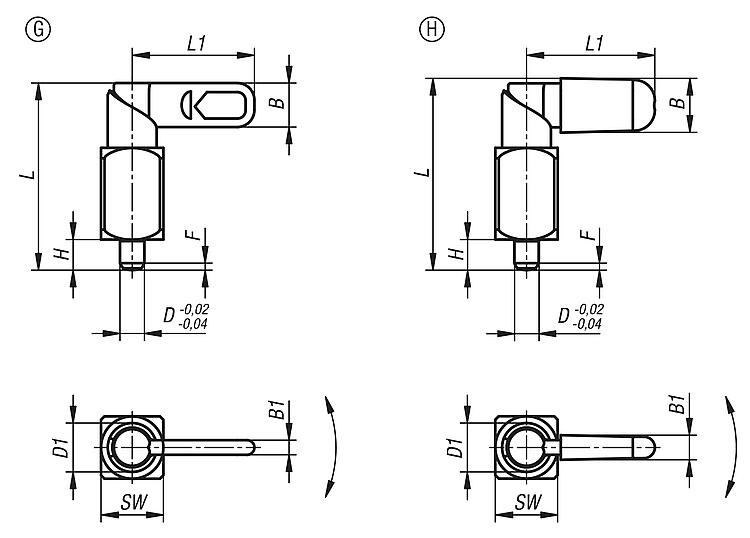

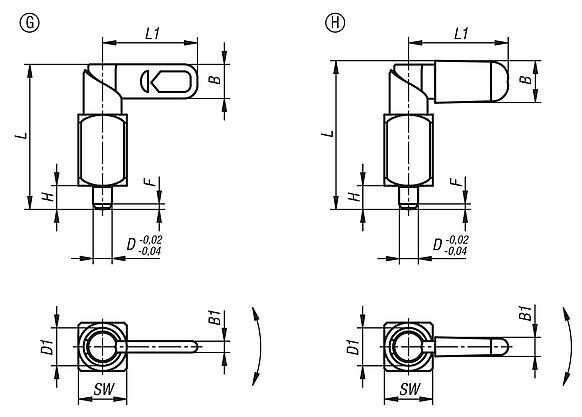

Drawing reference:Form G: without grip cap
Form H: with grip cap DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Drawings (total overview) |

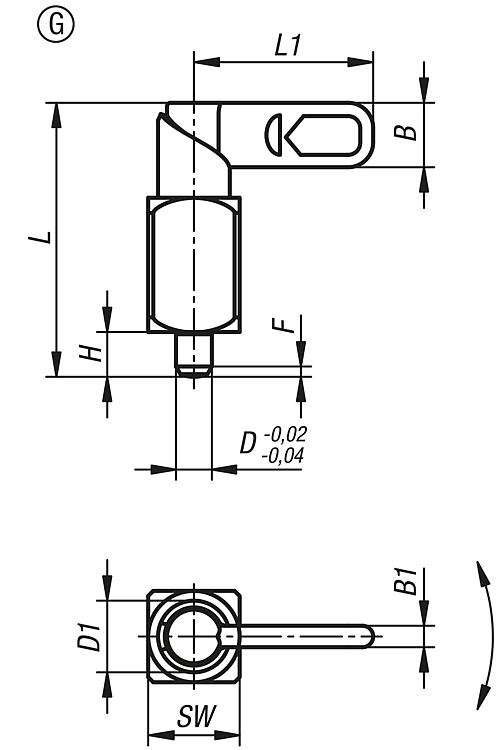

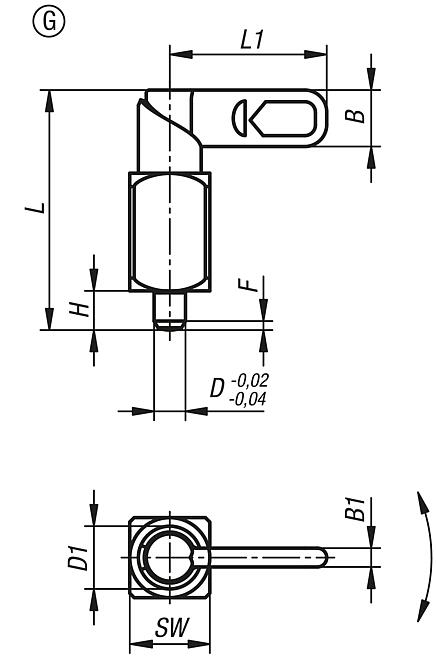

Cam-action indexing plungers, stainless steel with square sleeve, Form G, without grip cap |
More information |
| Order No. | Form | D | D1 | L | L1 | B | B1 | H | Fx30° | SW | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | CAD | Acc. | Price | Order |
|---|
| B0582.1100410 | G | 4 | 10 | 38,5 | 25 | 9 | 3 | 6 | 1 | 12 | 8 | 14 |  | | 14.42 € | | | B0582.1100510 | G | 5 | 10 | 38,5 | 25 | 9 | 3 | 6 | 1,3 | 12 | 8 | 14 | | | 14.42 € | | | B0582.1100610 | G | 6 | 10 | 38,5 | 25 | 9 | 3 | 6 | 1,8 | 12 | 8 | 14 | | | 17.51 € | | | B0582.1100512 | G | 5 | 12 | 47,4 | 30 | 10,8 | 3,6 | 8 | 1,3 | 16 | 8 | 14 | | | 14.42 € | | | B0582.1100612 | G | 6 | 12 | 47,4 | 30 | 10,8 | 3,6 | 8 | 1,8 | 16 | 8 | 14 | | | 17.51 € | | | B0582.1100812 | G | 8 | 12 | 47,4 | 30 | 10,8 | 3,6 | 8 | 2,3 | 16 | 8 | 14 | | | 22.66 € | | | B0582.1100616 | G | 6 | 16 | 61,2 | 40 | 14,4 | 4,8 | 10 | 1,8 | 20 | 15 | 35 | | | 17.51 € | | | B0582.1100816 | G | 8 | 16 | 61,2 | 40 | 14,4 | 4,8 | 10 | 2,3 | 20 | 15 | 35 | | | 22.66 € | | | B0582.1101016 | G | 10 | 16 | 61,2 | 40 | 14,4 | 4,8 | 10 | 2,8 | 20 | 15 | 35 | | | 28.84 € | | | B0582.1100820 | G | 8 | 20 | 71 | 50 | 18 | 6 | 12 | 2,3 | 24 | 20 | 60 | | | 22.66 € | | | B0582.1101020 | G | 10 | 20 | 71 | 50 | 18 | 6 | 12 | 2,8 | 24 | 20 | 60 | | | 28.84 € | | | B0582.1101220 | G | 12 | 20 | 71 | 50 | 18 | 6 | 12 | 3 | 24 | 20 | 60 | | | 28.84 € | |
|

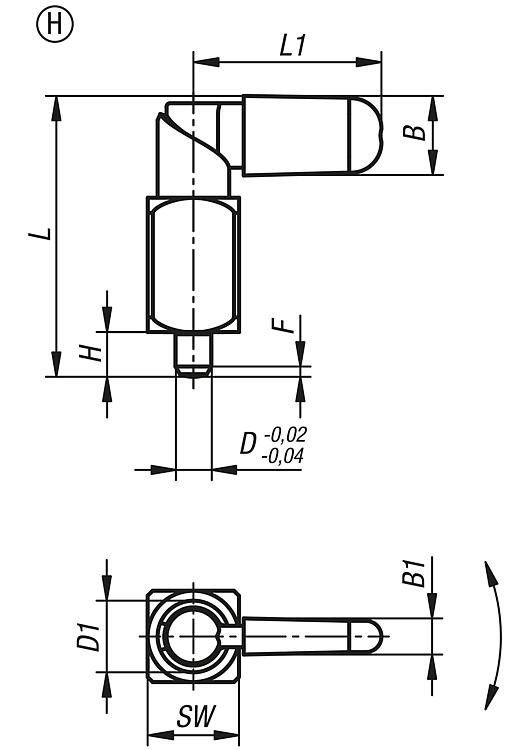

Cam-action indexing plungers, stainless steel with square sleeve, Form H, with grip caps |
More information |
| Order No. | Form | Component
colour | D | D1 | L | L1 | B | B1 | H | Fx30° | SW | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | CAD | Acc. | Price | Order |
|---|
| B0582.1110410 | H | black grey RAL 7021 | 4 | 10 | 39,5 | 26,3 | 10,9 | 4,9 | 6 | 1 | 12 | 8 | 14 | | | 15.45 € | | | B0582.1110510 | H | black grey RAL 7021 | 5 | 10 | 39,5 | 26,3 | 10,9 | 4,9 | 6 | 1,3 | 12 | 8 | 14 | | | 15.45 € | | | B0582.1110610 | H | black grey RAL 7021 | 6 | 10 | 39,5 | 26,3 | 10,9 | 4,9 | 6 | 1,8 | 12 | 8 | 14 | | | 18.54 € | | | B0582.1110512 | H | black grey RAL 7021 | 5 | 12 | 48,4 | 31,1 | 12,9 | 5,7 | 8 | 1,3 | 16 | 8 | 14 | | | 15.45 € | | | B0582.1110612 | H | black grey RAL 7021 | 6 | 12 | 48,4 | 31,1 | 12,9 | 5,7 | 8 | 1,8 | 16 | 8 | 14 | | | 18.54 € | | | B0582.1110812 | H | black grey RAL 7021 | 8 | 12 | 48,4 | 31,1 | 12,9 | 5,7 | 8 | 2,3 | 16 | 8 | 14 | | | 23.69 € | | | B0582.1110616 | H | black grey RAL 7021 | 6 | 16 | 62,3 | 41,5 | 16,6 | 7 | 10 | 1,8 | 20 | 15 | 35 | | | 18.54 € | | | B0582.1110816 | H | black grey RAL 7021 | 8 | 16 | 62,3 | 41,5 | 16,6 | 7 | 10 | 2,3 | 20 | 15 | 35 | | | 23.69 € | | | B0582.1111016 | H | black grey RAL 7021 | 10 | 16 | 62,3 | 41,5 | 16,6 | 7 | 10 | 2,8 | 20 | 15 | 35 | | | 29.87 € | | | B0582.1110820 | H | black grey RAL 7021 | 8 | 20 | 72,3 | 51,3 | 20,5 | 8,5 | 12 | 2,3 | 24 | 20 | 60 | | | 23.69 € | | | B0582.1111020 | H | black grey RAL 7021 | 10 | 20 | 72,3 | 51,3 | 20,5 | 8,5 | 12 | 2,8 | 24 | 20 | 60 | | | 29.87 € | | | B0582.1111220 | H | black grey RAL 7021 | 12 | 20 | 72,3 | 51,3 | 20,5 | 8,5 | 12 | 3 | 24 | 20 | 60 | | | 29.87 € | | | B0582.11104102 | H | orange RAL 2004 | 4 | 10 | 39,5 | 26,3 | 10,9 | 4,9 | 6 | 1 | 12 | 8 | 14 | | | 15.45 € | | | B0582.11105102 | H | orange RAL 2004 | 5 | 10 | 39,5 | 26,3 | 10,9 | 4,9 | 6 | 1,3 | 12 | 8 | 14 | | | 15.45 € | | | B0582.11106102 | H | orange RAL 2004 | 6 | 10 | 39,5 | 26,3 | 10,9 | 4,9 | 6 | 1,8 | 12 | 8 | 14 | | | 18.54 € | | | B0582.11105122 | H | orange RAL 2004 | 5 | 12 | 48,4 | 31,1 | 12,9 | 5,7 | 8 | 1,3 | 16 | 8 | 14 | | | 15.45 € | | | B0582.11106122 | H | orange RAL 2004 | 6 | 12 | 48,4 | 31,1 | 12,9 | 5,7 | 8 | 1,8 | 16 | 8 | 14 | | | 18.54 € | | | B0582.11108122 | H | orange RAL 2004 | 8 | 12 | 48,4 | 31,1 | 12,9 | 5,7 | 8 | 2,3 | 16 | 8 | 14 | | | 23.69 € | | | B0582.11106162 | H | orange RAL 2004 | 6 | 16 | 62,3 | 41,5 | 16,6 | 7 | 10 | 1,8 | 20 | 15 | 35 | | | 18.54 € | | | B0582.11108162 | H | orange RAL 2004 | 8 | 16 | 62,3 | 41,5 | 16,6 | 7 | 10 | 2,3 | 20 | 15 | 35 | | | 23.69 € | | | B0582.11110162 | H | orange RAL 2004 | 10 | 16 | 62,3 | 41,5 | 16,6 | 7 | 10 | 2,8 | 20 | 15 | 35 | | | 29.87 € | | | B0582.11108202 | H | orange RAL 2004 | 8 | 20 | 72,3 | 51,3 | 20,5 | 8,5 | 12 | 2,3 | 24 | 20 | 60 | | | 23.69 € | | | B0582.11110202 | H | orange RAL 2004 | 10 | 20 | 72,3 | 51,3 | 20,5 | 8,5 | 12 | 2,8 | 24 | 20 | 60 | | | 29.87 € | | | B0582.11112202 | H | orange RAL 2004 | 12 | 20 | 72,3 | 51,3 | 20,5 | 8,5 | 12 | 3 | 24 | 20 | 60 | | | 29.87 € | | | B0582.111041016 | H | colza yellow RAL 1021 | 4 | 10 | 39,5 | 26,3 | 10,9 | 4,9 | 6 | 1 | 12 | 8 | 14 | | | 15.45 € | | | B0582.111051016 | H | colza yellow RAL 1021 | 5 | 10 | 39,5 | 26,3 | 10,9 | 4,9 | 6 | 1,3 | 12 | 8 | 14 | | | 15.45 € | | | B0582.111061016 | H | colza yellow RAL 1021 | 6 | 10 | 39,5 | 26,3 | 10,9 | 4,9 | 6 | 1,8 | 12 | 8 | 14 | | | 18.54 € | | | B0582.111051216 | H | colza yellow RAL 1021 | 5 | 12 | 48,4 | 31,1 | 12,9 | 5,7 | 8 | 1,3 | 16 | 8 | 14 | | | 15.45 € | | | B0582.111061216 | H | colza yellow RAL 1021 | 6 | 12 | 48,4 | 31,1 | 12,9 | 5,7 | 8 | 1,8 | 16 | 8 | 14 | | | 18.54 € | | | B0582.111081216 | H | colza yellow RAL 1021 | 8 | 12 | 48,4 | 31,1 | 12,9 | 5,7 | 8 | 2,3 | 16 | 8 | 14 | | | 23.69 € | | | B0582.111061616 | H | colza yellow RAL 1021 | 6 | 16 | 62,3 | 41,5 | 16,6 | 7 | 10 | 1,8 | 20 | 15 | 35 | | | 18.54 € | | | B0582.111081616 | H | colza yellow RAL 1021 | 8 | 16 | 62,3 | 41,5 | 16,6 | 7 | 10 | 2,3 | 20 | 15 | 35 | | | 23.69 € | | | B0582.111101616 | H | colza yellow RAL 1021 | 10 | 16 | 62,3 | 41,5 | 16,6 | 7 | 10 | 2,8 | 20 | 15 | 35 | | | 29.87 € | | | B0582.111082016 | H | colza yellow RAL 1021 | 8 | 20 | 72,3 | 51,3 | 20,5 | 8,5 | 12 | 2,3 | 24 | 20 | 60 | | | 23.69 € | | | B0582.111102016 | H | colza yellow RAL 1021 | 10 | 20 | 72,3 | 51,3 | 20,5 | 8,5 | 12 | 2,8 | 24 | 20 | 60 | | | 29.87 € | | | B0582.111122016 | H | colza yellow RAL 1021 | 12 | 20 | 72,3 | 51,3 | 20,5 | 8,5 | 12 | 3 | 24 | 20 | 60 | | | 29.87 € | | | B0582.111041084 | H | traffic red RAL 3020 | 4 | 10 | 39,5 | 26,3 | 10,9 | 4,9 | 6 | 1 | 12 | 8 | 14 | | | 15.45 € | | | B0582.111051084 | H | traffic red RAL 3020 | 5 | 10 | 39,5 | 26,3 | 10,9 | 4,9 | 6 | 1,3 | 12 | 8 | 14 | | | 15.45 € | | | B0582.111061084 | H | traffic red RAL 3020 | 6 | 10 | 39,5 | 26,3 | 10,9 | 4,9 | 6 | 1,8 | 12 | 8 | 14 | | | 18.54 € | | | B0582.111051284 | H | traffic red RAL 3020 | 5 | 12 | 48,4 | 31,1 | 12,9 | 5,7 | 8 | 1,3 | 16 | 8 | 14 | | | 15.45 € | | | B0582.111061284 | H | traffic red RAL 3020 | 6 | 12 | 48,4 | 31,1 | 12,9 | 5,7 | 8 | 1,8 | 16 | 8 | 14 | | | 18.54 € | | | B0582.111081284 | H | traffic red RAL 3020 | 8 | 12 | 48,4 | 31,1 | 12,9 | 5,7 | 8 | 2,3 | 16 | 8 | 14 | | | 23.69 € | | | B0582.111061684 | H | traffic red RAL 3020 | 6 | 16 | 62,3 | 41,5 | 16,6 | 7 | 10 | 1,8 | 20 | 15 | 35 | | | 18.54 € | | | B0582.111081684 | H | traffic red RAL 3020 | 8 | 16 | 62,3 | 41,5 | 16,6 | 7 | 10 | 2,3 | 20 | 15 | 35 | | | 23.69 € | | | B0582.111101684 | H | traffic red RAL 3020 | 10 | 16 | 62,3 | 41,5 | 16,6 | 7 | 10 | 2,8 | 20 | 15 | 35 | | | 29.87 € | | | B0582.111082084 | H | traffic red RAL 3020 | 8 | 20 | 72,3 | 51,3 | 20,5 | 8,5 | 12 | 2,3 | 24 | 20 | 60 | | | 23.69 € | | | B0582.111102084 | H | traffic red RAL 3020 | 10 | 20 | 72,3 | 51,3 | 20,5 | 8,5 | 12 | 2,8 | 24 | 20 | 60 | | | 29.87 € | | | B0582.111122084 | H | traffic red RAL 3020 | 12 | 20 | 72,3 | 51,3 | 20,5 | 8,5 | 12 | 3 | 24 | 20 | 60 | | | 29.87 € | | | B0582.111041086 | H | signal green RAL 6032 | 4 | 10 | 39,5 | 26,3 | 10,9 | 4,9 | 6 | 1 | 12 | 8 | 14 | | | 15.45 € | | | B0582.111051086 | H | signal green RAL 6032 | 5 | 10 | 39,5 | 26,3 | 10,9 | 4,9 | 6 | 1,3 | 12 | 8 | 14 | | | 15.45 € | | | B0582.111061086 | H | signal green RAL 6032 | 6 | 10 | 39,5 | 26,3 | 10,9 | 4,9 | 6 | 1,8 | 12 | 8 | 14 | | | 18.54 € | | | B0582.111051286 | H | signal green RAL 6032 | 5 | 12 | 48,4 | 31,1 | 12,9 | 5,7 | 8 | 1,3 | 16 | 8 | 14 | | | 15.45 € | | | B0582.111061286 | H | signal green RAL 6032 | 6 | 12 | 48,4 | 31,1 | 12,9 | 5,7 | 8 | 1,8 | 16 | 8 | 14 | | | 18.54 € | | | B0582.111081286 | H | signal green RAL 6032 | 8 | 12 | 48,4 | 31,1 | 12,9 | 5,7 | 8 | 2,3 | 16 | 8 | 14 | | | 23.69 € | | | B0582.111061686 | H | signal green RAL 6032 | 6 | 16 | 62,3 | 41,5 | 16,6 | 7 | 10 | 1,8 | 20 | 15 | 35 | | | 18.54 € | | | B0582.111081686 | H | signal green RAL 6032 | 8 | 16 | 62,3 | 41,5 | 16,6 | 7 | 10 | 2,3 | 20 | 15 | 35 | | | 23.69 € | | | B0582.111101686 | H | signal green RAL 6032 | 10 | 16 | 62,3 | 41,5 | 16,6 | 7 | 10 | 2,8 | 20 | 15 | 35 | | | 29.87 € | | | B0582.111082086 | H | signal green RAL 6032 | 8 | 20 | 72,3 | 51,3 | 20,5 | 8,5 | 12 | 2,3 | 24 | 20 | 60 | | | 23.69 € | | | B0582.111102086 | H | signal green RAL 6032 | 10 | 20 | 72,3 | 51,3 | 20,5 | 8,5 | 12 | 2,8 | 24 | 20 | 60 | | | 29.87 € | | | B0582.111122086 | H | signal green RAL 6032 | 12 | 20 | 72,3 | 51,3 | 20,5 | 8,5 | 12 | 3 | 24 | 20 | 60 | | | 29.87 € | | | B0582.111041087 | H | traffic blue RAL 5017 | 4 | 10 | 39,5 | 26,3 | 10,9 | 4,9 | 6 | 1 | 12 | 8 | 14 | | | 15.45 € | | | B0582.111051087 | H | traffic blue RAL 5017 | 5 | 10 | 39,5 | 26,3 | 10,9 | 4,9 | 6 | 1,3 | 12 | 8 | 14 | | | 15.45 € | | | B0582.111061087 | H | traffic blue RAL 5017 | 6 | 10 | 39,5 | 26,3 | 10,9 | 4,9 | 6 | 1,8 | 12 | 8 | 14 | | | 18.54 € | | | B0582.111051287 | H | traffic blue RAL 5017 | 5 | 12 | 48,4 | 31,1 | 12,9 | 5,7 | 8 | 1,3 | 16 | 8 | 14 | | | 15.45 € | | | B0582.111061287 | H | traffic blue RAL 5017 | 6 | 12 | 48,4 | 31,1 | 12,9 | 5,7 | 8 | 1,8 | 16 | 8 | 14 | | | 18.54 € | | | B0582.111081287 | H | traffic blue RAL 5017 | 8 | 12 | 48,4 | 31,1 | 12,9 | 5,7 | 8 | 2,3 | 16 | 8 | 14 | | | 23.69 € | | | B0582.111061687 | H | traffic blue RAL 5017 | 6 | 16 | 62,3 | 41,5 | 16,6 | 7 | 10 | 1,8 | 20 | 15 | 35 | | | 18.54 € | | | B0582.111081687 | H | traffic blue RAL 5017 | 8 | 16 | 62,3 | 41,5 | 16,6 | 7 | 10 | 2,3 | 20 | 15 | 35 | | | 23.69 € | | | B0582.111101687 | H | traffic blue RAL 5017 | 10 | 16 | 62,3 | 41,5 | 16,6 | 7 | 10 | 2,8 | 20 | 15 | 35 | | | 29.87 € | | | B0582.111082087 | H | traffic blue RAL 5017 | 8 | 20 | 72,3 | 51,3 | 20,5 | 8,5 | 12 | 2,3 | 24 | 20 | 60 | | | 23.69 € | | | B0582.111102087 | H | traffic blue RAL 5017 | 10 | 20 | 72,3 | 51,3 | 20,5 | 8,5 | 12 | 2,8 | 24 | 20 | 60 | | | 29.87 € | | | B0582.111122087 | H | traffic blue RAL 5017 | 12 | 20 | 72,3 | 51,3 | 20,5 | 8,5 | 12 | 3 | 24 | 20 | 60 | | | 29.87 € | | | B0582.111041088 | H | light grey RAL 7035 | 4 | 10 | 39,5 | 26,3 | 10,9 | 4,9 | 6 | 1 | 12 | 8 | 14 | | | 15.45 € | | | B0582.111051088 | H | light grey RAL 7035 | 5 | 10 | 39,5 | 26,3 | 10,9 | 4,9 | 6 | 1,3 | 12 | 8 | 14 | | | 15.45 € | | | B0582.111061088 | H | light grey RAL 7035 | 6 | 10 | 39,5 | 26,3 | 10,9 | 4,9 | 6 | 1,8 | 12 | 8 | 14 | | | 18.54 € | | | B0582.111051288 | H | light grey RAL 7035 | 5 | 12 | 48,4 | 31,1 | 12,9 | 5,7 | 8 | 1,3 | 16 | 8 | 14 | | | 15.45 € | | | B0582.111061288 | H | light grey RAL 7035 | 6 | 12 | 48,4 | 31,1 | 12,9 | 5,7 | 8 | 1,8 | 16 | 8 | 14 | | | 18.54 € | | | B0582.111081288 | H | light grey RAL 7035 | 8 | 12 | 48,4 | 31,1 | 12,9 | 5,7 | 8 | 2,3 | 16 | 8 | 14 | | | 23.69 € | | | B0582.111061688 | H | light grey RAL 7035 | 6 | 16 | 62,3 | 41,5 | 16,6 | 7 | 10 | 1,8 | 20 | 15 | 35 | | | 18.54 € | | | B0582.111081688 | H | light grey RAL 7035 | 8 | 16 | 62,3 | 41,5 | 16,6 | 7 | 10 | 2,3 | 20 | 15 | 35 | | | 23.69 € | | | B0582.111101688 | H | light grey RAL 7035 | 10 | 16 | 62,3 | 41,5 | 16,6 | 7 | 10 | 2,8 | 20 | 15 | 35 | | | 29.87 € | | | B0582.111082088 | H | light grey RAL 7035 | 8 | 20 | 72,3 | 51,3 | 20,5 | 8,5 | 12 | 2,3 | 24 | 20 | 60 | | | 23.69 € | | | B0582.111102088 | H | light grey RAL 7035 | 10 | 20 | 72,3 | 51,3 | 20,5 | 8,5 | 12 | 2,8 | 24 | 20 | 60 | | | 29.87 € | | | B0582.111122088 | H | light grey RAL 7035 | 12 | 20 | 72,3 | 51,3 | 20,5 | 8,5 | 12 | 3 | 24 | 20 | 60 | | | 29.87 € | |
|
