B0581Cam-action indexing plunger, steel, with square sleeve |
go back |
|
Item description/product images |
|
|
DescriptionProduct description:Cam-action indexing plunger are used where any change in locking position due to lateral forces should be prevented.
Turning the grip through 180° retracts the indexing pin, enabling a change in the indexed position.
The notch ensures that the grip remains in this position and the indexing pin remains retracted.
Material:Grip and indexing pin steel.
Sleeve 1.0403.
Spring 1.4310.
Grip cap thermoplastic PA. Version:Sleeve and grip black oxidised.
Indexing pin hardened, ground and black oxidised.
Spring bright.
Grip cap in various colours:
-black grey RAL 7021.
-pure orange RAL 2004.
-colza yellow RAL 1021.
-traffic red RAL 3020.
-signal green RAL 6032.
-traffic blue RAL 5017.
-light grey RAL 7035.Note:The square sleeve makes these plungers suitable for welding. To prevent overheating the spring, positioning with spot welding is recommended.Advantages:Turning the grip through 180° retracts the pin.
Optionally available with coloured plastic grip caps.
Square sleeve for welding.On request:Special versions.
Accessory:Positioning bushes B0063.
Drawing reference:Form G: without grip cap

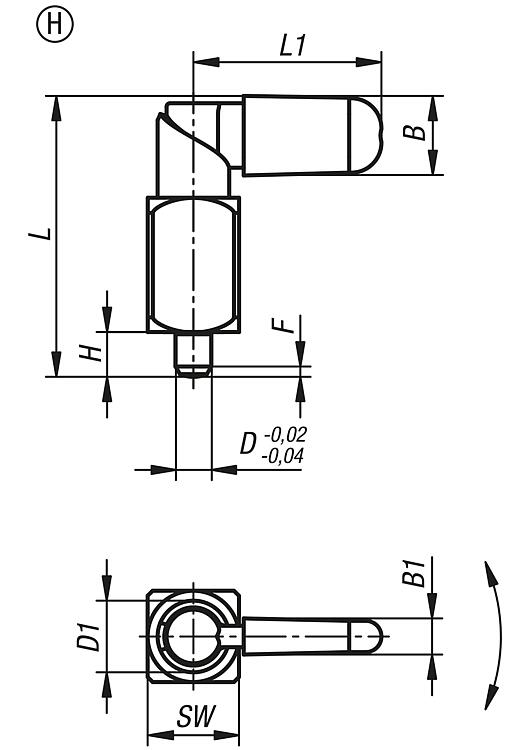

Form H: with grip cap DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Drawings (total overview) |
Cam-action indexing plungers, steel with square sleeve, Form G, without grip cap |
More information |
| Order No. | Form | D | D1 | L | L1 | B | B1 | H | Fx30° | SW | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | CAD | Acc. | Price | Order |
|---|
| B0581.100410 | G | 4 | 10 | 38,5 | 25 | 9 | 3 | 6 | 1 | 12 | 8 | 14 |  | | 12.88 € | | | B0581.100510 | G | 5 | 10 | 38,5 | 25 | 9 | 3 | 6 | 1,3 | 12 | 8 | 14 | | | 12.88 € | | | B0581.100610 | G | 6 | 10 | 38,5 | 25 | 9 | 3 | 6 | 1,8 | 12 | 8 | 14 | | | 14.01 € | | | B0581.100512 | G | 5 | 12 | 47,4 | 30 | 10,8 | 3,6 | 8 | 1,3 | 16 | 8 | 14 | | | 12.88 € | | | B0581.100612 | G | 6 | 12 | 47,4 | 30 | 10,8 | 3,6 | 8 | 1,8 | 16 | 8 | 14 | | | 14.01 € | | | B0581.100812 | G | 8 | 12 | 47,4 | 30 | 10,8 | 3,6 | 8 | 2,3 | 16 | 8 | 14 | | | 17.10 € | | | B0581.100616 | G | 6 | 16 | 61,2 | 40 | 14,4 | 4,8 | 10 | 1,8 | 20 | 15 | 35 | | | 14.01 € | | | B0581.100816 | G | 8 | 16 | 61,2 | 40 | 14,4 | 4,8 | 10 | 2,3 | 20 | 15 | 35 | | | 17.10 € | | | B0581.101016 | G | 10 | 16 | 61,2 | 40 | 14,4 | 4,8 | 10 | 2,8 | 20 | 15 | 35 | | | 19.47 € | | | B0581.100820 | G | 8 | 20 | 71 | 50 | 18 | 6 | 12 | 2,3 | 24 | 20 | 60 | | | 17.10 € | | | B0581.101020 | G | 10 | 20 | 71 | 50 | 18 | 6 | 12 | 2,8 | 24 | 20 | 60 | | | 19.47 € | | | B0581.101220 | G | 12 | 20 | 71 | 50 | 18 | 6 | 12 | 3 | 24 | 20 | 60 | | | 19.47 € | |
|
Cam-action indexing plungers, steel with square sleeve, Form F, with grip cap |
More information |
| Order No. | Form | Component
colour | D | D1 | L | L1 | B | B1 | H | Fx30° | SW | Spring force
initial pressure
F1 approx. N | Spring force
final pressure
F2 approx. N | CAD | Acc. | Price | Order |
|---|
| B0581.110410 | H | black grey RAL 7021 | 4 | 10 | 39,5 | 26,3 | 10,9 | 4,9 | 6 | 1 | 12 | 8 | 14 | | | 13.39 € | | | B0581.110510 | H | black grey RAL 7021 | 5 | 10 | 39,5 | 26,3 | 10,9 | 4,9 | 6 | 1,3 | 12 | 8 | 14 | | | 13.39 € | | | B0581.110610 | H | black grey RAL 7021 | 6 | 10 | 39,5 | 26,3 | 10,9 | 4,9 | 6 | 1,8 | 12 | 8 | 14 | | | 15.45 € | | | B0581.110512 | H | black grey RAL 7021 | 5 | 12 | 48,4 | 31,1 | 12,9 | 5,7 | 8 | 1,3 | 16 | 8 | 14 | | | 13.39 € | | | B0581.110612 | H | black grey RAL 7021 | 6 | 12 | 48,4 | 31,1 | 12,9 | 5,7 | 8 | 1,8 | 16 | 8 | 14 | | | 15.45 € | | | B0581.110812 | H | black grey RAL 7021 | 8 | 12 | 48,4 | 31,1 | 12,9 | 5,7 | 8 | 2,3 | 16 | 8 | 14 | | | 18.54 € | | | B0581.110616 | H | black grey RAL 7021 | 6 | 16 | 62,3 | 41,5 | 16,6 | 7 | 10 | 1,8 | 20 | 15 | 35 | | | 15.45 € | | | B0581.110816 | H | black grey RAL 7021 | 8 | 16 | 62,3 | 41,5 | 16,6 | 7 | 10 | 2,3 | 20 | 15 | 35 | | | 18.54 € | | | B0581.111016 | H | black grey RAL 7021 | 10 | 16 | 62,3 | 41,5 | 16,6 | 7 | 10 | 2,8 | 20 | 15 | 35 | | | 21.63 € | | | B0581.110820 | H | black grey RAL 7021 | 8 | 20 | 72,3 | 51,3 | 20,5 | 8,5 | 12 | 2,3 | 24 | 20 | 60 | | | 18.54 € | | | B0581.111020 | H | black grey RAL 7021 | 10 | 20 | 72,3 | 51,3 | 20,5 | 8,5 | 12 | 2,8 | 24 | 20 | 60 | | | 21.63 € | | | B0581.111220 | H | black grey RAL 7021 | 12 | 20 | 72,3 | 51,3 | 20,5 | 8,5 | 12 | 3 | 24 | 20 | 60 | | | 21.63 € | | | B0581.1104102 | H | orange RAL 2004 | 4 | 10 | 39,5 | 26,3 | 10,9 | 4,9 | 6 | 1 | 12 | 8 | 14 | | | 13.39 € | | | B0581.1105102 | H | orange RAL 2004 | 5 | 10 | 39,5 | 26,3 | 10,9 | 4,9 | 6 | 1,3 | 12 | 8 | 14 | | | 13.39 € | | | B0581.1106102 | H | orange RAL 2004 | 6 | 10 | 39,5 | 26,3 | 10,9 | 4,9 | 6 | 1,8 | 12 | 8 | 14 | | | 15.45 € | | | B0581.1105122 | H | orange RAL 2004 | 5 | 12 | 48,4 | 31,1 | 12,9 | 5,7 | 8 | 1,3 | 16 | 8 | 14 | | | 13.39 € | | | B0581.1106122 | H | orange RAL 2004 | 6 | 12 | 48,4 | 31,1 | 12,9 | 5,7 | 8 | 1,8 | 16 | 8 | 14 | | | 15.45 € | | | B0581.1108122 | H | orange RAL 2004 | 8 | 12 | 48,4 | 31,1 | 12,9 | 5,7 | 8 | 2,3 | 16 | 8 | 14 | | | 18.54 € | | | B0581.1106162 | H | orange RAL 2004 | 6 | 16 | 62,3 | 41,5 | 16,6 | 7 | 10 | 1,8 | 20 | 15 | 35 | | | 15.45 € | | | B0581.1108162 | H | orange RAL 2004 | 8 | 16 | 62,3 | 41,5 | 16,6 | 7 | 10 | 2,3 | 20 | 15 | 35 | | | 18.54 € | | | B0581.1110162 | H | orange RAL 2004 | 10 | 16 | 62,3 | 41,5 | 16,6 | 7 | 10 | 2,8 | 20 | 15 | 35 | | | 21.63 € | | | B0581.1108202 | H | orange RAL 2004 | 8 | 20 | 72,3 | 51,3 | 20,5 | 8,5 | 12 | 2,3 | 24 | 20 | 60 | | | 18.54 € | | | B0581.1110202 | H | orange RAL 2004 | 10 | 20 | 72,3 | 51,3 | 20,5 | 8,5 | 12 | 2,8 | 24 | 20 | 60 | | | 21.63 € | | | B0581.1112202 | H | orange RAL 2004 | 12 | 20 | 72,3 | 51,3 | 20,5 | 8,5 | 12 | 3 | 24 | 20 | 60 | | | 21.63 € | | | B0581.11041016 | H | colza yellow RAL 1021 | 4 | 10 | 39,5 | 26,3 | 10,9 | 4,9 | 6 | 1 | 12 | 8 | 14 | | | 13.39 € | | | B0581.11051016 | H | colza yellow RAL 1021 | 5 | 10 | 39,5 | 26,3 | 10,9 | 4,9 | 6 | 1,3 | 12 | 8 | 14 | | | 13.39 € | | | B0581.11061016 | H | colza yellow RAL 1021 | 6 | 10 | 39,5 | 26,3 | 10,9 | 4,9 | 6 | 1,8 | 12 | 8 | 14 | | | 15.45 € | | | B0581.11051216 | H | colza yellow RAL 1021 | 5 | 12 | 48,4 | 31,1 | 12,9 | 5,7 | 8 | 1,3 | 16 | 8 | 14 | | | 13.39 € | | | B0581.11061216 | H | colza yellow RAL 1021 | 6 | 12 | 48,4 | 31,1 | 12,9 | 5,7 | 8 | 1,8 | 16 | 8 | 14 | | | 15.45 € | | | B0581.11081216 | H | colza yellow RAL 1021 | 8 | 12 | 48,4 | 31,1 | 12,9 | 5,7 | 8 | 2,3 | 16 | 8 | 14 | | | 18.54 € | | | B0581.11061616 | H | colza yellow RAL 1021 | 6 | 16 | 62,3 | 41,5 | 16,6 | 7 | 10 | 1,8 | 20 | 15 | 35 | | | 15.45 € | | | B0581.11081616 | H | colza yellow RAL 1021 | 8 | 16 | 62,3 | 41,5 | 16,6 | 7 | 10 | 2,3 | 20 | 15 | 35 | | | 18.54 € | | | B0581.11101616 | H | colza yellow RAL 1021 | 10 | 16 | 62,3 | 41,5 | 16,6 | 7 | 10 | 2,8 | 20 | 15 | 35 | | | 21.63 € | | | B0581.11082016 | H | colza yellow RAL 1021 | 8 | 20 | 72,3 | 51,3 | 20,5 | 8,5 | 12 | 2,3 | 24 | 20 | 60 | | | 18.54 € | | | B0581.11102016 | H | colza yellow RAL 1021 | 10 | 20 | 72,3 | 51,3 | 20,5 | 8,5 | 12 | 2,8 | 24 | 20 | 60 | | | 21.63 € | | | B0581.11122016 | H | colza yellow RAL 1021 | 12 | 20 | 72,3 | 51,3 | 20,5 | 8,5 | 12 | 3 | 24 | 20 | 60 | | | 21.63 € | | | B0581.11041084 | H | traffic red RAL 3020 | 4 | 10 | 39,5 | 26,3 | 10,9 | 4,9 | 6 | 1 | 12 | 8 | 14 | | | 13.39 € | | | B0581.11051084 | H | traffic red RAL 3020 | 5 | 10 | 39,5 | 26,3 | 10,9 | 4,9 | 6 | 1,3 | 12 | 8 | 14 | | | 13.39 € | | | B0581.11061084 | H | traffic red RAL 3020 | 6 | 10 | 39,5 | 26,3 | 10,9 | 4,9 | 6 | 1,8 | 12 | 8 | 14 | | | 15.45 € | | | B0581.11051284 | H | traffic red RAL 3020 | 5 | 12 | 48,4 | 31,1 | 12,9 | 5,7 | 8 | 1,3 | 16 | 8 | 14 | | | 13.39 € | | | B0581.11061284 | H | traffic red RAL 3020 | 6 | 12 | 48,4 | 31,1 | 12,9 | 5,7 | 8 | 1,8 | 16 | 8 | 14 | | | 15.45 € | | | B0581.11081284 | H | traffic red RAL 3020 | 8 | 12 | 48,4 | 31,1 | 12,9 | 5,7 | 8 | 2,3 | 16 | 8 | 14 | | | 18.54 € | | | B0581.11061684 | H | traffic red RAL 3020 | 6 | 16 | 62,3 | 41,5 | 16,6 | 7 | 10 | 1,8 | 20 | 15 | 35 | | | 15.45 € | | | B0581.11081684 | H | traffic red RAL 3020 | 8 | 16 | 62,3 | 41,5 | 16,6 | 7 | 10 | 2,3 | 20 | 15 | 35 | | | 18.54 € | | | B0581.11101684 | H | traffic red RAL 3020 | 10 | 16 | 62,3 | 41,5 | 16,6 | 7 | 10 | 2,8 | 20 | 15 | 35 | | | 21.63 € | | | B0581.11082084 | H | traffic red RAL 3020 | 8 | 20 | 72,3 | 51,3 | 20,5 | 8,5 | 12 | 2,3 | 24 | 20 | 60 | | | 18.54 € | | | B0581.11102084 | H | traffic red RAL 3020 | 10 | 20 | 72,3 | 51,3 | 20,5 | 8,5 | 12 | 2,8 | 24 | 20 | 60 | | | 21.63 € | | | B0581.11122084 | H | traffic red RAL 3020 | 12 | 20 | 72,3 | 51,3 | 20,5 | 8,5 | 12 | 3 | 24 | 20 | 60 | | | 21.63 € | | | B0581.11041086 | H | signal green RAL 6032 | 4 | 10 | 39,5 | 26,3 | 10,9 | 4,9 | 6 | 1 | 12 | 8 | 14 | | | 13.39 € | | | B0581.11051086 | H | signal green RAL 6032 | 5 | 10 | 39,5 | 26,3 | 10,9 | 4,9 | 6 | 1,3 | 12 | 8 | 14 | | | 13.39 € | | | B0581.11061086 | H | signal green RAL 6032 | 6 | 10 | 39,5 | 26,3 | 10,9 | 4,9 | 6 | 1,8 | 12 | 8 | 14 | | | 15.45 € | | | B0581.11051286 | H | signal green RAL 6032 | 5 | 12 | 48,4 | 31,1 | 12,9 | 5,7 | 8 | 1,3 | 16 | 8 | 14 | | | 13.39 € | | | B0581.11061286 | H | signal green RAL 6032 | 6 | 12 | 48,4 | 31,1 | 12,9 | 5,7 | 8 | 1,8 | 16 | 8 | 14 | | | 15.45 € | | | B0581.11081286 | H | signal green RAL 6032 | 8 | 12 | 48,4 | 31,1 | 12,9 | 5,7 | 8 | 2,3 | 16 | 8 | 14 | | | 18.54 € | | | B0581.11061686 | H | signal green RAL 6032 | 6 | 16 | 62,3 | 41,5 | 16,6 | 7 | 10 | 1,8 | 20 | 15 | 35 | | | 15.45 € | | | B0581.11081686 | H | signal green RAL 6032 | 8 | 16 | 62,3 | 41,5 | 16,6 | 7 | 10 | 2,3 | 20 | 15 | 35 | | | 18.54 € | | | B0581.11101686 | H | signal green RAL 6032 | 10 | 16 | 62,3 | 41,5 | 16,6 | 7 | 10 | 2,8 | 20 | 15 | 35 | | | 21.63 € | | | B0581.11082086 | H | signal green RAL 6032 | 8 | 20 | 72,3 | 51,3 | 20,5 | 8,5 | 12 | 2,3 | 24 | 20 | 60 | | | 18.54 € | | | B0581.11102086 | H | signal green RAL 6032 | 10 | 20 | 72,3 | 51,3 | 20,5 | 8,5 | 12 | 2,8 | 24 | 20 | 60 | | | 21.63 € | | | B0581.11122086 | H | signal green RAL 6032 | 12 | 20 | 72,3 | 51,3 | 20,5 | 8,5 | 12 | 3 | 24 | 20 | 60 | | | 21.63 € | | | B0581.11041087 | H | traffic blue RAL 5017 | 4 | 10 | 39,5 | 26,3 | 10,9 | 4,9 | 6 | 1 | 12 | 8 | 14 | | | 13.39 € | | | B0581.11051087 | H | traffic blue RAL 5017 | 5 | 10 | 39,5 | 26,3 | 10,9 | 4,9 | 6 | 1,3 | 12 | 8 | 14 | | | 13.39 € | | | B0581.11061087 | H | traffic blue RAL 5017 | 6 | 10 | 39,5 | 26,3 | 10,9 | 4,9 | 6 | 1,8 | 12 | 8 | 14 | | | 15.45 € | | | B0581.11051287 | H | traffic blue RAL 5017 | 5 | 12 | 48,4 | 31,1 | 12,9 | 5,7 | 8 | 1,3 | 16 | 8 | 14 | | | 13.39 € | | | B0581.11061287 | H | traffic blue RAL 5017 | 6 | 12 | 48,4 | 31,1 | 12,9 | 5,7 | 8 | 1,8 | 16 | 8 | 14 | | | 15.45 € | | | B0581.11081287 | H | traffic blue RAL 5017 | 8 | 12 | 48,4 | 31,1 | 12,9 | 5,7 | 8 | 2,3 | 16 | 8 | 14 | | | 18.54 € | | | B0581.11061687 | H | traffic blue RAL 5017 | 6 | 16 | 62,3 | 41,5 | 16,6 | 7 | 10 | 1,8 | 20 | 15 | 35 | | | 15.45 € | | | B0581.11081687 | H | traffic blue RAL 5017 | 8 | 16 | 62,3 | 41,5 | 16,6 | 7 | 10 | 2,3 | 20 | 15 | 35 | | | 18.54 € | | | B0581.11101687 | H | traffic blue RAL 5017 | 10 | 16 | 62,3 | 41,5 | 16,6 | 7 | 10 | 2,8 | 20 | 15 | 35 | | | 21.63 € | | | B0581.11082087 | H | traffic blue RAL 5017 | 8 | 20 | 72,3 | 51,3 | 20,5 | 8,5 | 12 | 2,3 | 24 | 20 | 60 | | | 18.54 € | | | B0581.11102087 | H | traffic blue RAL 5017 | 10 | 20 | 72,3 | 51,3 | 20,5 | 8,5 | 12 | 2,8 | 24 | 20 | 60 | | | 21.63 € | | | B0581.11122087 | H | traffic blue RAL 5017 | 12 | 20 | 72,3 | 51,3 | 20,5 | 8,5 | 12 | 3 | 24 | 20 | 60 | | | 21.63 € | | | B0581.11051088 | H | light grey RAL 7035 | 5 | 10 | 39,5 | 26,3 | 10,9 | 4,9 | 6 | 1,3 | 12 | 8 | 14 | | | 13.39 € | | | B0581.11041088 | H | light grey RAL 7035 | 4 | 10 | 39,5 | 26,3 | 10,9 | 4,9 | 6 | 1 | 12 | 8 | 14 | | | 13.39 € | | | B0581.11061088 | H | light grey RAL 7035 | 6 | 10 | 39,5 | 26,3 | 10,9 | 4,9 | 6 | 1,8 | 12 | 8 | 14 | | | 15.45 € | | | B0581.11051288 | H | light grey RAL 7035 | 5 | 12 | 48,4 | 31,1 | 12,9 | 5,7 | 8 | 1,3 | 16 | 8 | 14 | | | 13.39 € | | | B0581.11061288 | H | light grey RAL 7035 | 6 | 12 | 48,4 | 31,1 | 12,9 | 5,7 | 8 | 1,8 | 16 | 8 | 14 | | | 15.45 € | | | B0581.11081288 | H | light grey RAL 7035 | 8 | 12 | 48,4 | 31,1 | 12,9 | 5,7 | 8 | 2,3 | 16 | 8 | 14 | | | 18.54 € | | | B0581.11061688 | H | light grey RAL 7035 | 6 | 16 | 62,3 | 41,5 | 16,6 | 7 | 10 | 1,8 | 20 | 15 | 35 | | | 15.45 € | | | B0581.11081688 | H | light grey RAL 7035 | 8 | 16 | 62,3 | 41,5 | 16,6 | 7 | 10 | 2,3 | 20 | 15 | 35 | | | 18.54 € | | | B0581.11101688 | H | light grey RAL 7035 | 10 | 16 | 62,3 | 41,5 | 16,6 | 7 | 10 | 2,8 | 20 | 15 | 35 | | | 21.63 € | | | B0581.11082088 | H | light grey RAL 7035 | 8 | 20 | 72,3 | 51,3 | 20,5 | 8,5 | 12 | 2,3 | 24 | 20 | 60 | | | 18.54 € | | | B0581.11102088 | H | light grey RAL 7035 | 10 | 20 | 72,3 | 51,3 | 20,5 | 8,5 | 12 | 2,8 | 24 | 20 | 60 | | | 21.63 € | | | B0581.11122088 | H | light grey RAL 7035 | 12 | 20 | 72,3 | 51,3 | 20,5 | 8,5 | 12 | 3 | 24 | 20 | 60 | | | 21.63 € | |
|
