B0428

Cam clamps, single

Item description/product images

DescriptionMaterial:Cam QT steel 1.7220.
Clamp strap QT steel 1.1191.Version:Black oxidised.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

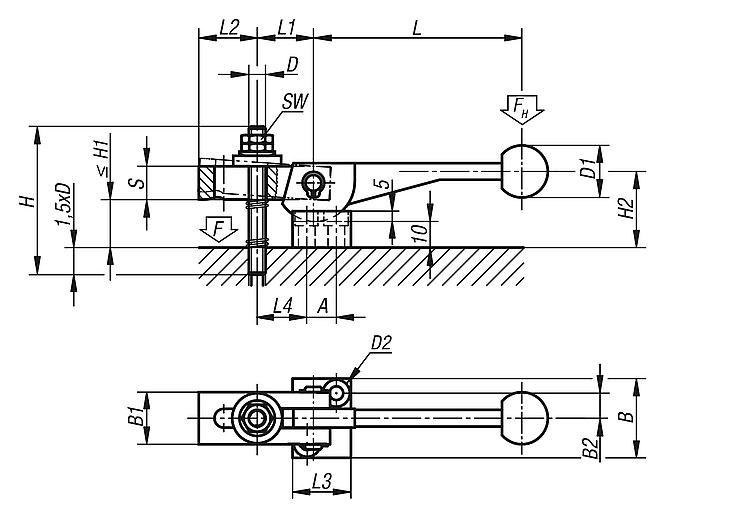

Order No.	L	L1	L2	L3	L4	B	B1	B2	S	H	H1 max.	H2	D	D1	D2	A	SW	Price
B0428.08	104±2	27	28	28	27	38	25	12	16	70	25	34	M8	25	7	14	13	117.17 €
B0428.10	123±2	34	36	32	35	41	32	13,5	20	80	24	40	M10	30	7	16	17	128.73 €
B0428.12	146±3	43	45	37	45	43	40	14,5	25	100	31	48	M12	30	7	19	19	162.48 €
