Positioning bushes for indexing plungers
B0063

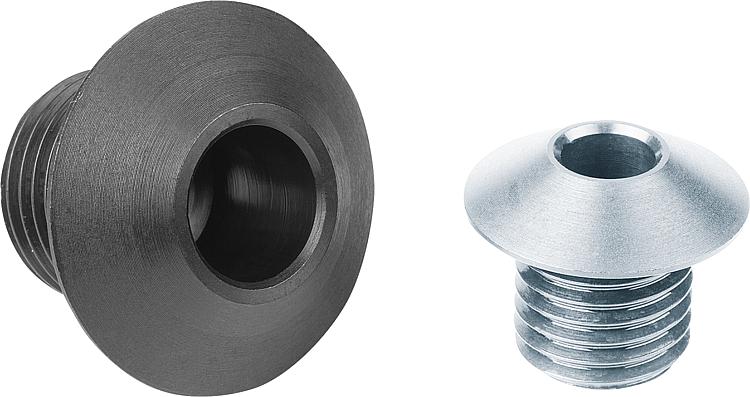

Positioning bushes for indexing plungers

go back

Item description/product images

DescriptionMaterial:

Steel or 1.4034 stainless steel.

Version:Steel hardened and black oxidised.
Stainless steel, hardened, bright.

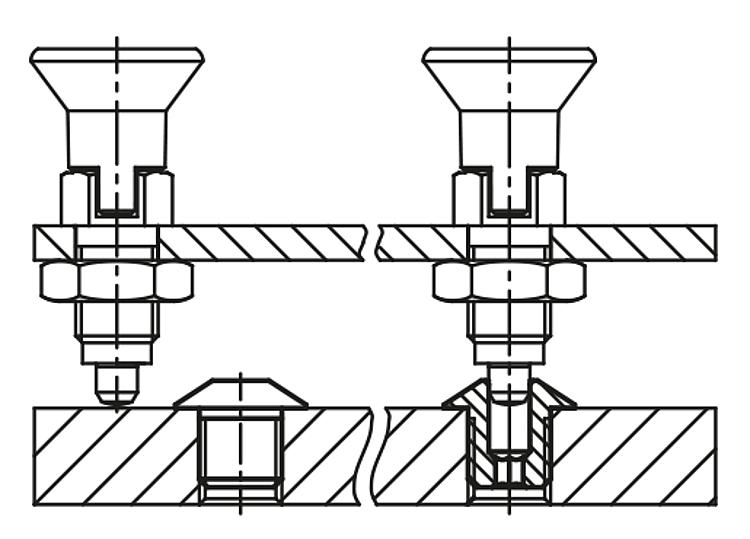

Note:Positioning bushes suitable for indexing plunger.
Matched with mounting brackets B0066.
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet B0063 Positioning bushes for indexing plungers 262 kB

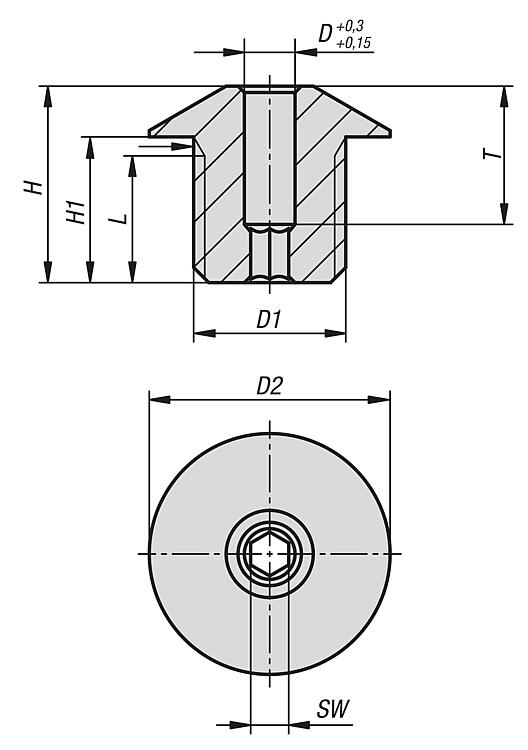

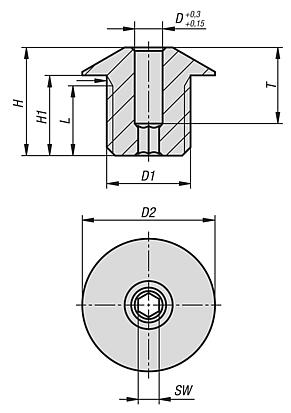

Drawings

Positioning bushes for indexing plungers

Item selection/filter

Order No.Main
material
D

D1D2HH1LSWTCADAcc.PriceOrder
B0063.04steel4M12x1,51915,511,510311 4.53 €
B0063.05steel5M12x1,51915,511,510410 4.53 €
B0063.06steel6M12x1,51915,511,510410 4.53 €
B0063.08steel8M16x1,52619,514,513612 5.24 €
B0063.10steel10M16x1,52619,514,513612 5.24 €
B0063.104stainless steel4M12x1,51915,511,510311 6.43 €
B0063.105stainless steel5M12x1,51915,511,510410 6.43 €
B0063.106stainless steel6M12x1,51915,511,510410 6.43 €
B0063.108stainless steel8M16x1,52619,514,513612 9.14 €
B0063.110stainless steel10M16x1,52619,514,513612 9.14 €
