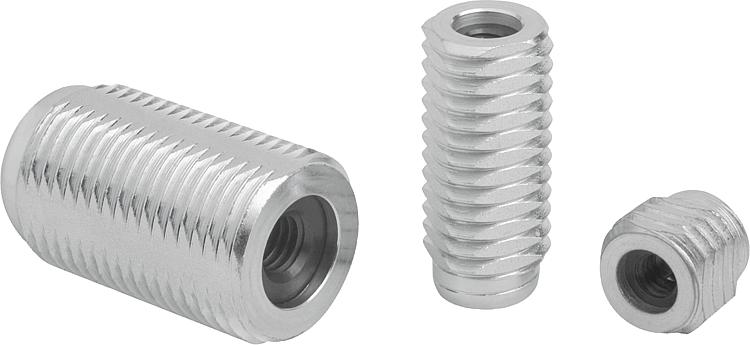

B0042Lateral spring plungers with threaded sleeve, without thrust pin |
go back |
|
|
DescriptionMaterial:Steel.Version:Sleeve blue electro zinc-plated.

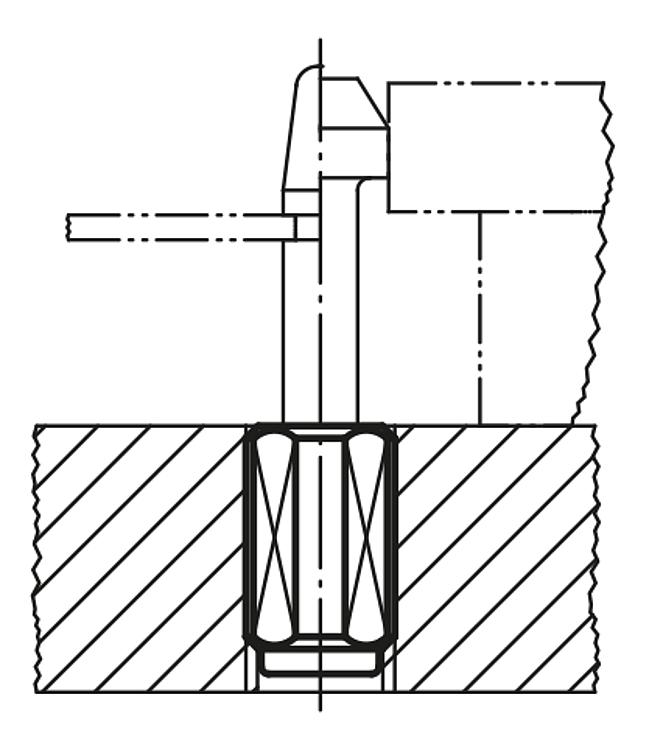

Washer, hardened and burnished.Note:The thrust pin can be made to suit the required circumstances and screwed into the tapped hole in the locating washer.
The required lateral thrust (F) can be achieved through the stroke (S) and length (L1).

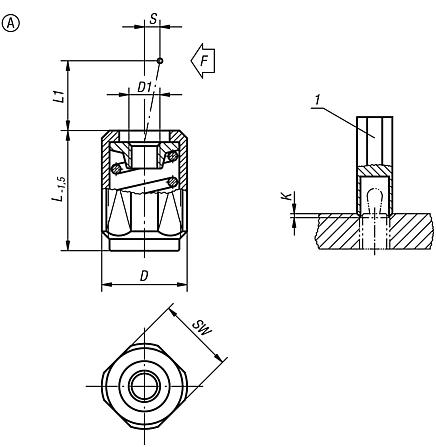

Form B has a seal to keep swarf and dirt out.Drawing reference:Form A: without seal

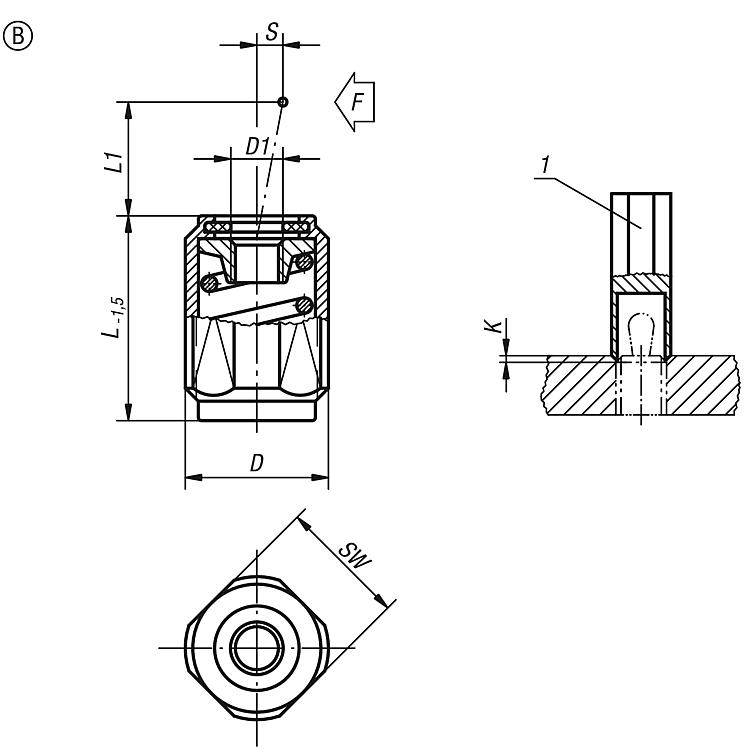

Form B: with seal
1) assembly tool DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

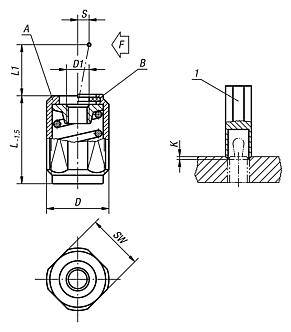

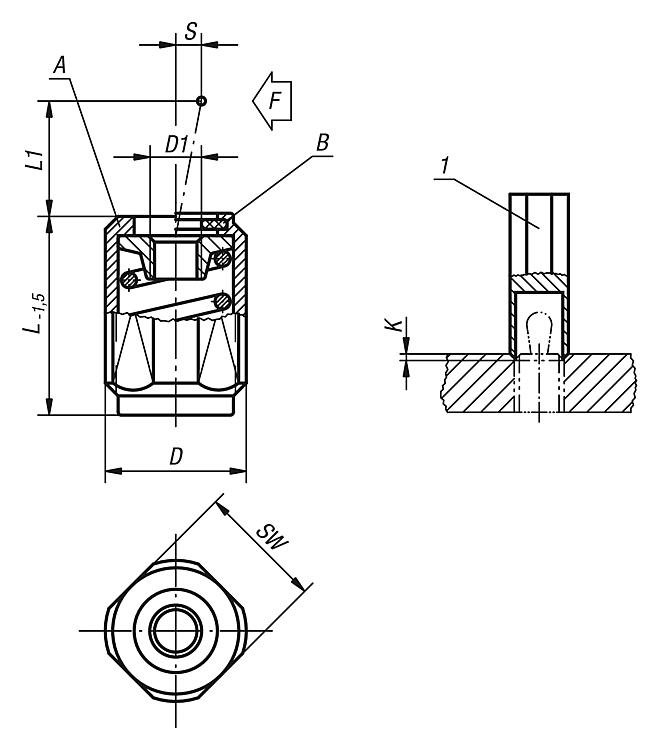

Drawings (total overview) |
Lateral spring plungers with threaded sleeve, without thrust pin, Form A, without seal |
More information |
| Order No. | Form | D | D1 | K | L | L1 | ±S | SW | F
ca.N | Order No.
assembly
tool | CAD | Acc. | Price | Order |
|---|
| B0042.1020X12 | A | M12 | M4 | 2x60° | 11,5 | 4 | 1,6 | 10 | 20 | B0045.06 |  |  | 6.76 € | | | B0042.1020X20 | A | M12 | M4 | 2x60° | 19 | 4 | 1,6 | 10 | 20 | B0045.06 | | | 7.12 € | | | B0042.1020X27 | A | M12 | M4 | 2x60° | 26,5 | 4 | 1,6 | 10 | 20 | B0045.06 | | | 7.46 € | | | B0042.1040X12 | A | M12 | M4 | 2x60° | 11,5 | 7,5 | 2 | 10 | 40 | B0045.06 | | | 7.12 € | | | B0042.1040X20 | A | M12 | M4 | 2x60° | 19 | 7,5 | 2 | 10 | 40 | B0045.06 | | | 7.46 € | | | B0042.1040X27 | A | M12 | M4 | 2x60° | 26,5 | 7,5 | 2 | 10 | 40 | B0045.06 | | | 7.79 € | | | B0042.1050X12 | A | M12 | M4 | 2x60° | 11,5 | 4 | 1,6 | 10 | 50 | B0045.06 | | | 6.76 € | | | B0042.1050X20 | A | M12 | M4 | 2x60° | 19 | 4 | 1,6 | 10 | 50 | B0045.06 | | | 7.12 € | | | B0042.1050X27 | A | M12 | M4 | 2x60° | 26,5 | 4 | 1,6 | 10 | 50 | B0045.06 | | | 7.46 € | | | B0042.1075X12 | A | M12 | M4 | 2x60° | 11,5 | 7,5 | 2 | 10 | 75 | B0045.06 | | | 7.12 € | | | B0042.1075X20 | A | M12 | M4 | 2x60° | 19 | 7,5 | 2 | 10 | 75 | B0045.06 | | | 7.46 € | | | B0042.1075X27 | A | M12 | M4 | 2x60° | 26,5 | 7,5 | 2 | 10 | 75 | B0045.06 | | | 7.79 € | | | B0042.1100X12 | A | M12 | M4 | 2x60° | 11,5 | 4 | 1,6 | 10 | 100 | B0045.06 | | | 6.76 € | | | B0042.1100X20 | A | M12 | M4 | 2x60° | 19 | 4 | 1,6 | 10 | 100 | B0045.06 | | | 7.12 € | | | B0042.1100X27 | A | M12 | M4 | 2x60° | 26,5 | 4 | 1,6 | 10 | 100 | B0045.06 | | | 7.46 € | | | B0042.1150X12 | A | M12 | M4 | 2x60° | 11,5 | 7,5 | 2 | 10 | 100 | B0045.06 | | | 7.12 € | | | B0042.1150X20 | A | M12 | M4 | 2x60° | 19 | 7,5 | 2 | 10 | 100 | B0045.06 | | | 7.46 € | | | B0042.1150X27 | A | M12 | M4 | 2x60° | 26,5 | 7,5 | 2 | 10 | 100 | B0045.06 | | | 7.79 € | | | B0042.1100X16 | A | M18X1,5 | M6 | 2,5x60° | 18 | 11,5 | 3,2 | 16 | 100 | B0045.10 | | | 7.46 € | | | B0042.1100X29 | A | M18X1,5 | M6 | 2,5x60° | 31,5 | 11,5 | 3,2 | 16 | 100 | B0045.10 | | | 8.12 € | | | B0042.1100X43 | A | M18X1,5 | M6 | 2,5x60° | 45 | 11,5 | 3,2 | 16 | 100 | B0045.10 | | | 8.84 € | | | B0042.1200X16 | A | M18X1,5 | M6 | 2,5x60° | 18 | 11,5 | 3,2 | 16 | 150 | B0045.10 | | | 7.46 € | | | B0042.1200X29 | A | M18X1,5 | M6 | 2,5x60° | 31,5 | 11,5 | 3,2 | 16 | 150 | B0045.10 | | | 8.12 € | | | B0042.1200X43 | A | M18X1,5 | M6 | 2,5x60° | 45 | 11,5 | 3,2 | 16 | 150 | B0045.10 | | | 8.84 € | | | B0042.1300X16 | A | M18X1,5 | M6 | 2,5x60° | 18 | 11,5 | 3,2 | 16 | 200 | B0045.10 | | | 7.46 € | | | B0042.1300X29 | A | M18X1,5 | M6 | 2,5x60° | 31,5 | 11,5 | 3,2 | 16 | 200 | B0045.10 | | | 8.12 € | | | B0042.1300X43 | A | M18X1,5 | M6 | 2,5x60° | 45 | 11,5 | 3,2 | 16 | 200 | B0045.10 | | | 8.84 € | |
|
Lateral spring plungers with threaded sleeve, without thrust pin, Form B, with seal |
More information |
| Order No. | Form | D | D1 | K | L | L1 | ±S | SW | F
ca.N | Order No.
assembly
tool | CAD | Acc. | Price | Order |
|---|
| B0042.2020X12 | B | M12 | M4 | 2x60° | 11,5 | 4 | 1,6 | 10 | 20 | B0045.06 | | | 7.60 € | | | B0042.2020X20 | B | M12 | M4 | 2x60° | 19 | 4 | 1,6 | 10 | 20 | B0045.06 | | | 7.94 € | | | B0042.2020X27 | B | M12 | M4 | 2x60° | 26,5 | 4 | 1,6 | 10 | 20 | B0045.06 | | | 8.33 € | | | B0042.2040X12 | B | M12 | M4 | 2x60° | 11,5 | 7,5 | 2 | 10 | 40 | B0045.06 | | | 7.94 € | | | B0042.2040X20 | B | M12 | M4 | 2x60° | 19 | 7,5 | 2 | 10 | 40 | B0045.06 | | | 8.33 € | | | B0042.2040X27 | B | M12 | M4 | 2x60° | 26,5 | 7,5 | 2 | 10 | 40 | B0045.06 | | | 8.68 € | | | B0042.2050X12 | B | M12 | M4 | 2x60° | 11,5 | 4 | 1,6 | 10 | 50 | B0045.06 | | | 7.60 € | | | B0042.2050X20 | B | M12 | M4 | 2x60° | 19 | 4 | 1,6 | 10 | 50 | B0045.06 | | | 7.94 € | | | B0042.2050X27 | B | M12 | M4 | 2x60° | 26,5 | 4 | 1,6 | 10 | 50 | B0045.06 | | | 8.33 € | | | B0042.2075X12 | B | M12 | M4 | 2x60° | 11,5 | 7,5 | 2 | 10 | 75 | B0045.06 | | | 7.94 € | | | B0042.2075X20 | B | M12 | M4 | 2x60° | 19 | 7,5 | 2 | 10 | 75 | B0045.06 | | | 8.33 € | | | B0042.2075X27 | B | M12 | M4 | 2x60° | 26,5 | 7,5 | 2 | 10 | 75 | B0045.06 | | | 8.68 € | | | B0042.2100X12 | B | M12 | M4 | 2x60° | 11,5 | 4 | 1,6 | 10 | 100 | B0045.06 | | | 7.60 € | | | B0042.2100X20 | B | M12 | M4 | 2x60° | 19 | 4 | 1,6 | 10 | 100 | B0045.06 | | | 7.94 € | | | B0042.2100X27 | B | M12 | M4 | 2x60° | 26,5 | 4 | 1,6 | 10 | 100 | B0045.06 | | | 8.33 € | | | B0042.2150X12 | B | M12 | M4 | 2x60° | 11,5 | 7,5 | 2 | 10 | 100 | B0045.06 | | | 7.94 € | | | B0042.2150X20 | B | M12 | M4 | 2x60° | 19 | 7,5 | 2 | 10 | 100 | B0045.06 | | | 8.33 € | | | B0042.2150X27 | B | M12 | M4 | 2x60° | 26,5 | 7,5 | 2 | 10 | 100 | B0045.06 | | | 8.68 € | | | B0042.2100X16 | B | M18X1,5 | M6 | 2,5x60° | 18 | 11,5 | 3,2 | 16 | 100 | B0045.10 | | | 8.33 € | | | B0042.2100X29 | B | M18X1,5 | M6 | 2,5x60° | 31,5 | 11,5 | 3,2 | 16 | 100 | B0045.10 | | | 9.02 € | | | B0042.2100X43 | B | M18X1,5 | M6 | 2,5x60° | 45 | 11,5 | 3,2 | 16 | 100 | B0045.10 | | | 9.71 € | | | B0042.2200X16 | B | M18X1,5 | M6 | 2,5x60° | 18 | 11,5 | 3,2 | 16 | 150 | B0045.10 | | | 8.33 € | | | B0042.2200X29 | B | M18X1,5 | M6 | 2,5x60° | 31,5 | 11,5 | 3,2 | 16 | 150 | B0045.10 | | | 9.02 € | | | B0042.2200X43 | B | M18X1,5 | M6 | 2,5x60° | 45 | 11,5 | 3,2 | 16 | 150 | B0045.10 | | | 9.71 € | | | B0042.2300X16 | B | M18X1,5 | M6 | 2,5x60° | 18 | 11,5 | 3,2 | 16 | 200 | B0045.10 | | | 8.33 € | | | B0042.2300X29 | B | M18X1,5 | M6 | 2,5x60° | 31,5 | 11,5 | 3,2 | 16 | 200 | B0045.10 | | | 9.02 € | | | B0042.2300X43 | B | M18X1,5 | M6 | 2,5x60° | 45 | 11,5 | 3,2 | 16 | 200 | B0045.10 | | | 9.71 € | |
|
