Item description/product images |
|
|

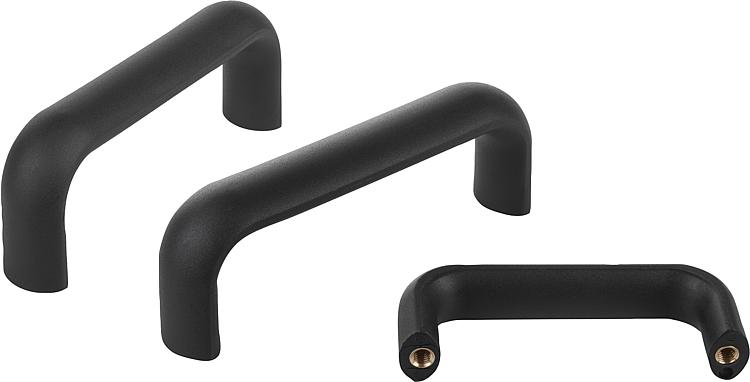

DescriptionMaterial:Fibreglass reinforced thermoplastic.
Tapped bush brass.Version:black.Assembly:From the rear. DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

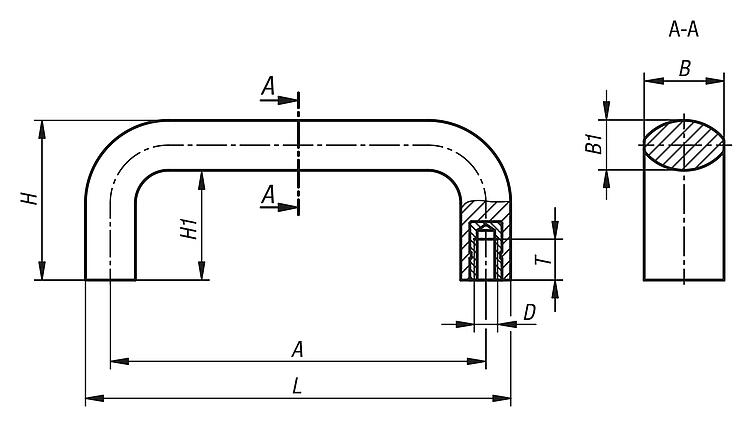

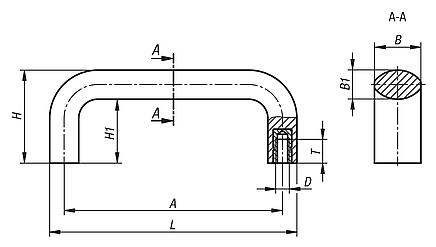

| Order No. | A | B | B1 | D
| H | H1 | L | T | Load
capacity
N | CAD | Acc. | Price | Order |
|---|
| B0313.08605 | 86 | 20 | 12,5 | M5 | 40 | 28 | 98,5 | 8 | 1000 |  | | 3.98 € | | | B0313.08606 | 86 | 20 | 12,5 | M6 | 40 | 28 | 98,5 | 8 | 1000 | | | 4.18 € | | | B0313.09405 | 94 | 20 | 12,5 | M5 | 40 | 28 | 106,5 | 8 | 1000 | | | 4.16 € | | | B0313.09406 | 94 | 20 | 12,5 | M6 | 40 | 28 | 106,5 | 8 | 1000 | | | 4.31 € | | | B0313.11705 | 117 | 25 | 16 | M5 | 50 | 34 | 134 | 8 | 1000 | | | 4.43 € | | | B0313.11706 | 117 | 25 | 16 | M6 | 50 | 34 | 134 | 8 | 1000 | | | 4.69 € | | | B0313.11708 | 117 | 25 | 16 | M8 | 50 | 34 | 134 | 13 | 1000 | | | 4.82 € | | | B0313.12005 | 120 | 25 | 16 | M5 | 50 | 34 | 134 | 15 | 1000 | | | 4.57 € | | | B0313.12006 | 120 | 25 | 16 | M6 | 50 | 34 | 134 | 8 | 1000 | | | 4.82 € | | | B0313.12008 | 120 | 25 | 16 | M8 | 50 | 34 | 134 | 13 | 1000 | | | 4.96 € | | | B0313.13205 | 132 | 25 | 16 | M5 | 50 | 34 | 148 | 15 | 1000 | | | 4.69 € | | | B0313.13206 | 132 | 25 | 16 | M6 | 50 | 34 | 148 | 8 | 1000 | | | 5.07 € | | | B0313.13208 | 132 | 25 | 16 | M8 | 50 | 34 | 148 | 13 | 1000 | | | 5.22 € | | | B0313.15006 | 149,5 | 29 | 18 | M6 | 58 | 40 | 168 | 16 | 1000 | | | 5.54 € | | | B0313.15008 | 149,5 | 29 | 18 | M8 | 58 | 40 | 168 | 13 | 1000 | | | 5.60 € | | | B0313.15010 | 149,5 | 29 | 18 | M10 | 58 | 40 | 168 | 13 | 1000 | | | 5.99 € | | | B0313.17908 | 179 | 29 | 18 | M8 | 58 | 40 | 197 | 13 | 1000 | | | 6.46 € | | | B0313.17910 | 179 | 29 | 18 | M10 | 58 | 40 | 197 | 13 | 1000 | | | 6.64 € | |
