B0543Clamping levers, plastic with internal thread, threaded insert... |
go back |
|
Item description/product images |
|
|
DescriptionProduct description:The plastic clamping lever with ergonomic grip design offers a high-quality, modern appearance in combination with very pleasant haptics.
The clamping lever is made of a special high-performance plastic and is available in many standard colours.
The advantages of the clamping lever are high rigidity and strength. The light weight make it ideal for mobile applications.Material:High performance fibreglass reinforced thermoplastic.

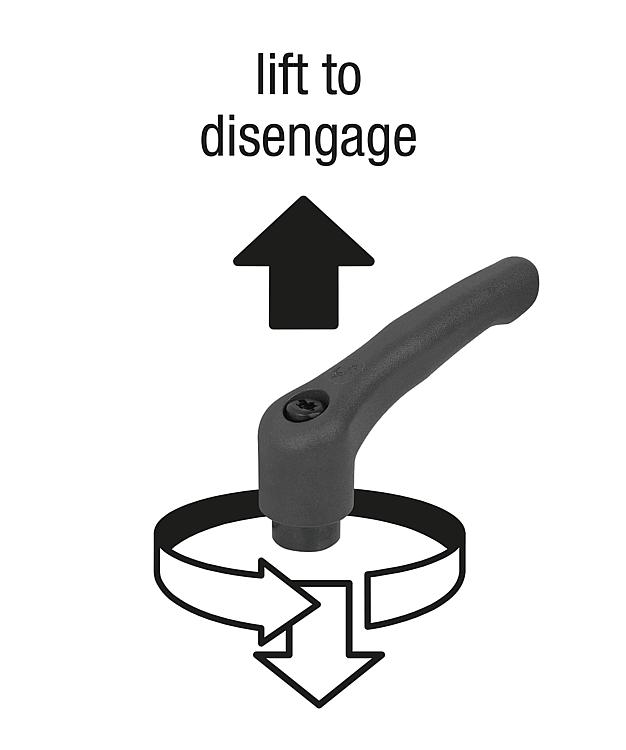

Steel parts grade 5.8. Version:Steel parts blue-passivated.Type of operation:When not actuated, the handle is engaged in the tooth insert by a gear ring, thus allowing the thread to be fastened or released. When raised, the handle can be re-positioned and then re-engaged in the gear ring by spring force.Application:Machine, equipment and plant construction, rehabilitation sector.Temperature range:Permanent temperature max. 100 °C.

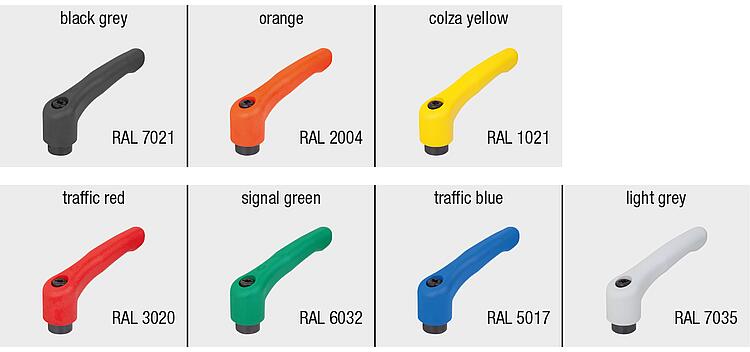

Brief use with temperatures up to 130 °C.Advantages:Seven colour variants.On request:Other female threads and special versions.
Length “H1” optionally available in other lengths for an additional charge.
High temperature black-grey plastic.
Permanent operating temperature acc. to IEC 216 150 °C - 160 °C max.
Brief use with temperatures up to 250 °C. DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

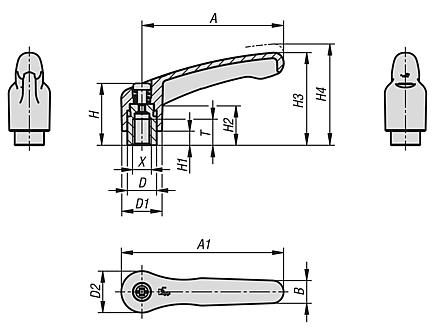

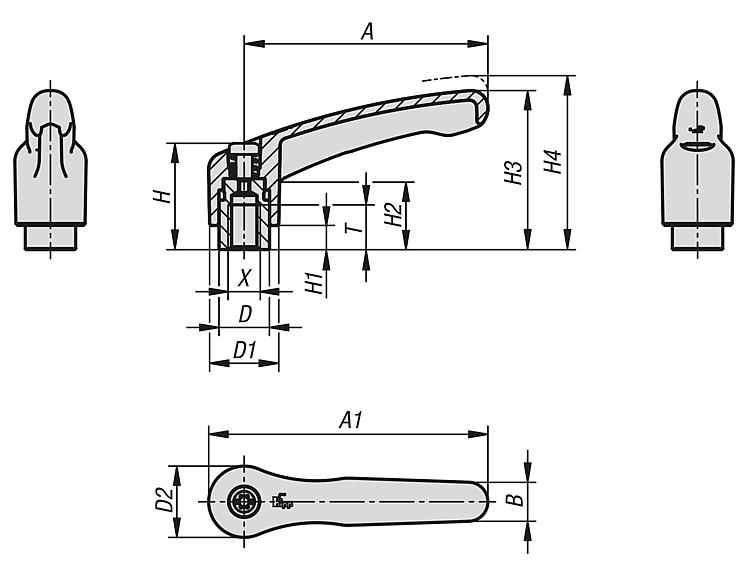

| Order No. | Main
colour | Main
material | Size | X | T | D | D1 | D2 | H | H1 | H2 | H3 | H4 | A | A1 | B | No. of
teeth
| CAD | Acc. | Price | Order |
|---|
| B0543.9031 | black grey RAL 7021 | high performance thermoplastic | 9 | M3 | 6 | 8 | 10,5 | 11 | 21,4 | 4 | 12,4 | 24 | 27 | 22 | 27,5 | 6,4 | 12 |  | | 2.99 € | | | B0543.9041 | black grey RAL 7021 | high performance thermoplastic | 9 | M4 | 6 | 8 | 10,5 | 11 | 21,4 | 4 | 12,4 | 24 | 27 | 22 | 27,5 | 6,4 | 12 | | | 2.99 € | | | B0543.9051 | black grey RAL 7021 | high performance thermoplastic | 9 | M5 | 6 | 8 | 10,5 | 11 | 21,4 | 4 | 12,4 | 24 | 27 | 22 | 27,5 | 6,4 | 12 | | | 2.99 € | | | B0543.0031 | black grey RAL 7021 | high performance thermoplastic | 0 | M3 | 9 | 10 | 13,2 | 13,8 | 24,5 | 4 | 15,5 | 30 | 33,5 | 30 | 36,9 | 7,6 | 16 | | | 3.14 € | | | B0543.0041 | black grey RAL 7021 | high performance thermoplastic | 0 | M4 | 9 | 10 | 13,2 | 13,8 | 24,5 | 4 | 15,5 | 30 | 33,5 | 30 | 36,9 | 7,6 | 16 | | | 3.14 € | | | B0543.0051 | black grey RAL 7021 | high performance thermoplastic | 0 | M5 | 9 | 10 | 13,2 | 13,8 | 24,5 | 4 | 15,5 | 30 | 33,5 | 30 | 36,9 | 7,6 | 16 | | | 3.14 € | | | B0543.1041 | black grey RAL 7021 | high performance thermoplastic | 1 | M4 | 9 | 10 | 13,2 | 13,8 | 24,5 | 4 | 14,2 | 30,8 | 35 | 39,9 | 46,8 | 7,9 | 16 | | | 3.14 € | | | B0543.1051 | black grey RAL 7021 | high performance thermoplastic | 1 | M5 | 9 | 10 | 13,2 | 13,8 | 24,5 | 4 | 14,2 | 30,8 | 35 | 39,9 | 46,8 | 7,9 | 16 | | | 3.14 € | | | B0543.1061 | black grey RAL 7021 | high performance thermoplastic | 1 | M6 | 9 | 10 | 13,2 | 13,8 | 24,5 | 4 | 14,2 | 30,8 | 35 | 39,9 | 46,8 | 7,9 | 16 | | | 3.14 € | | | B0543.2061 | black grey RAL 7021 | high performance thermoplastic | 2 | M6 | 12 | 13,5 | 18,5 | 19,1 | 28,5 | 6,5 | 18,6 | 42,6 | 47,1 | 65,2 | 74,8 | 10,5 | 20 | | | 3.72 € | | | B0543.2081 | black grey RAL 7021 | high performance thermoplastic | 2 | M8 | 12 | 13,5 | 18,5 | 19,1 | 28,5 | 6,5 | 18,6 | 42,6 | 47,1 | 65,2 | 74,8 | 10,5 | 20 | | | 3.72 € | | | B0543.3081 | black grey RAL 7021 | high performance thermoplastic | 3 | M8 | 14 | 16 | 21,2 | 21,9 | 37 | 10 | 24 | 54 | 59,2 | 80,2 | 91,1 | 11,5 | 22 | | | 4.60 € | | | B0543.3101 | black grey RAL 7021 | high performance thermoplastic | 3 | M10 | 14 | 16 | 21,2 | 21,9 | 37 | 10 | 24 | 54 | 59,2 | 80,2 | 91,1 | 11,5 | 22 | | | 4.60 € | | | B0543.4101 | black grey RAL 7021 | high performance thermoplastic | 4 | M10 | 17 | 19 | 26,2 | 27,1 | 43,1 | 10 | 27,8 | 62,4 | 68,1 | 96,8 | 110,3 | 14,1 | 24 | | | 5.83 € | | | B0543.4121 | black grey RAL 7021 | high performance thermoplastic | 4 | M12 | 17 | 19 | 26,2 | 27,1 | 43,1 | 10 | 27,8 | 62,4 | 68,1 | 96,8 | 110,3 | 14,1 | 24 | | | 5.83 € | | | B0543.5121 | black grey RAL 7021 | high performance thermoplastic | 5 | M12 | 23 | 23 | 30,5 | 31,5 | 49,1 | 12 | 30,8 | 72,9 | 79,2 | 110,9 | 126,6 | 15,1 | 26 | | | 7.03 € | | | B0543.5161 | black grey RAL 7021 | high performance thermoplastic | 5 | M16 | 23 | 23 | 30,5 | 31,5 | 49,1 | 12 | 30,8 | 72,9 | 79,2 | 110,9 | 126,6 | 15,1 | 26 | | | 7.03 € | | | B0543.9032 | orange RAL 2004 | high performance thermoplastic | 9 | M3 | 6 | 8 | 10,5 | 11 | 21,4 | 4 | 12,4 | 24 | 27 | 22 | 27,5 | 6,4 | 12 | | | 2.99 € | | | B0543.9042 | orange RAL 2004 | high performance thermoplastic | 9 | M4 | 6 | 8 | 10,5 | 11 | 21,4 | 4 | 12,4 | 24 | 27 | 22 | 27,5 | 6,4 | 12 | | | 2.99 € | | | B0543.9052 | orange RAL 2004 | high performance thermoplastic | 9 | M5 | 6 | 8 | 10,5 | 11 | 21,4 | 4 | 12,4 | 24 | 27 | 22 | 27,5 | 6,4 | 12 | | | 2.99 € | | | B0543.0032 | orange RAL 2004 | high performance thermoplastic | 0 | M3 | 9 | 10 | 13,2 | 13,8 | 24,5 | 4 | 15,5 | 30 | 33,5 | 30 | 36,9 | 7,6 | 16 | | | 3.14 € | | | B0543.0042 | orange RAL 2004 | high performance thermoplastic | 0 | M4 | 9 | 10 | 13,2 | 13,8 | 24,5 | 4 | 15,5 | 30 | 33,5 | 30 | 36,9 | 7,6 | 16 | | | 3.14 € | | | B0543.0052 | orange RAL 2004 | high performance thermoplastic | 0 | M5 | 9 | 10 | 13,2 | 13,8 | 24,5 | 4 | 15,5 | 30 | 33,5 | 30 | 36,9 | 7,6 | 16 | | | 3.14 € | | | B0543.1042 | orange RAL 2004 | high performance thermoplastic | 1 | M4 | 9 | 10 | 13,2 | 13,8 | 24,5 | 4 | 14,2 | 30,8 | 35 | 39,9 | 46,8 | 7,9 | 16 | | | 3.14 € | | | B0543.1052 | orange RAL 2004 | high performance thermoplastic | 1 | M5 | 9 | 10 | 13,2 | 13,8 | 24,5 | 4 | 14,2 | 30,8 | 35 | 39,9 | 46,8 | 7,9 | 16 | | | 3.14 € | | | B0543.1062 | orange RAL 2004 | high performance thermoplastic | 1 | M6 | 9 | 10 | 13,2 | 13,8 | 24,5 | 4 | 14,2 | 30,8 | 35 | 39,9 | 46,8 | 7,9 | 16 | | | 3.14 € | | | B0543.2062 | orange RAL 2004 | high performance thermoplastic | 2 | M6 | 12 | 13,5 | 18,5 | 19,1 | 28,5 | 6,5 | 18,6 | 42,6 | 47,1 | 65,2 | 74,8 | 10,5 | 20 | | | 3.72 € | | | B0543.2082 | orange RAL 2004 | high performance thermoplastic | 2 | M8 | 12 | 13,5 | 18,5 | 19,1 | 28,5 | 6,5 | 18,6 | 42,6 | 47,1 | 65,2 | 74,8 | 10,5 | 20 | | | 3.72 € | | | B0543.3082 | orange RAL 2004 | high performance thermoplastic | 3 | M8 | 14 | 16 | 21,2 | 21,9 | 37 | 10 | 24 | 54 | 59,2 | 80,2 | 91,1 | 11,5 | 22 | | | 4.60 € | | | B0543.3102 | orange RAL 2004 | high performance thermoplastic | 3 | M10 | 14 | 16 | 21,2 | 21,9 | 37 | 10 | 24 | 54 | 59,2 | 80,2 | 91,1 | 11,5 | 22 | | | 4.60 € | | | B0543.4102 | orange RAL 2004 | high performance thermoplastic | 4 | M10 | 17 | 19 | 26,2 | 27,1 | 43,1 | 10 | 27,8 | 62,4 | 68,1 | 96,8 | 110,3 | 14,1 | 24 | | | 5.83 € | | | B0543.4122 | orange RAL 2004 | high performance thermoplastic | 4 | M12 | 17 | 19 | 26,2 | 27,1 | 43,1 | 10 | 27,8 | 62,4 | 68,1 | 96,8 | 110,3 | 14,1 | 24 | | | 5.83 € | | | B0543.5122 | orange RAL 2004 | high performance thermoplastic | 5 | M12 | 23 | 23 | 30,5 | 31,5 | 49,1 | 12 | 30,8 | 72,9 | 79,2 | 110,9 | 126,6 | 15,1 | 26 | | | 7.03 € | | | B0543.5162 | orange RAL 2004 | high performance thermoplastic | 5 | M16 | 23 | 23 | 30,5 | 31,5 | 49,1 | 12 | 30,8 | 72,9 | 79,2 | 110,9 | 126,6 | 15,1 | 26 | | | 7.03 € | | | B0543.90316 | colza yellow RAL 1021 | high performance thermoplastic | 9 | M3 | 6 | 8 | 10,5 | 11 | 21,4 | 4 | 12,4 | 24 | 27 | 22 | 27,5 | 6,4 | 12 | | | 2.99 € | | | B0543.90416 | colza yellow RAL 1021 | high performance thermoplastic | 9 | M4 | 6 | 8 | 10,5 | 11 | 21,4 | 4 | 12,4 | 24 | 27 | 22 | 27,5 | 6,4 | 12 | | | 2.99 € | | | B0543.90516 | colza yellow RAL 1021 | high performance thermoplastic | 9 | M5 | 6 | 8 | 10,5 | 11 | 21,4 | 4 | 12,4 | 24 | 27 | 22 | 27,5 | 6,4 | 12 | | | 2.99 € | | | B0543.00316 | colza yellow RAL 1021 | high performance thermoplastic | 0 | M3 | 9 | 10 | 13,2 | 13,8 | 24,5 | 4 | 15,5 | 30 | 33,5 | 30 | 36,9 | 7,6 | 16 | | | 3.14 € | | | B0543.00416 | colza yellow RAL 1021 | high performance thermoplastic | 0 | M4 | 9 | 10 | 13,2 | 13,8 | 24,5 | 4 | 15,5 | 30 | 33,5 | 30 | 36,9 | 7,6 | 16 | | | 3.14 € | | | B0543.00516 | colza yellow RAL 1021 | high performance thermoplastic | 0 | M5 | 9 | 10 | 13,2 | 13,8 | 24,5 | 4 | 15,5 | 30 | 33,5 | 30 | 36,9 | 7,6 | 16 | | | 3.14 € | | | B0543.10416 | rape yellow RAL 1021 | high performance thermoplastic | 1 | M4 | 9 | 10 | 13,2 | 13,8 | 24,5 | 4 | 14,2 | 30,8 | 35 | 39,9 | 46,8 | 7,9 | 16 | | | 3.14 € | | | B0543.10516 | rape yellow RAL 1021 | high performance thermoplastic | 1 | M5 | 9 | 10 | 13,2 | 13,8 | 24,5 | 4 | 14,2 | 30,8 | 35 | 39,9 | 46,8 | 7,9 | 16 | | | 3.14 € | | | B0543.10616 | rape yellow RAL 1021 | high performance thermoplastic | 1 | M6 | 9 | 10 | 13,2 | 13,8 | 24,5 | 4 | 14,2 | 30,8 | 35 | 39,9 | 46,8 | 7,9 | 16 | | | 3.14 € | | | B0543.20616 | rape yellow RAL 1021 | high performance thermoplastic | 2 | M6 | 12 | 13,5 | 18,5 | 19,1 | 28,5 | 6,5 | 18,6 | 42,6 | 47,1 | 65,2 | 74,8 | 10,5 | 20 | | | 3.72 € | | | B0543.20816 | rape yellow RAL 1021 | high performance thermoplastic | 2 | M8 | 12 | 13,5 | 18,5 | 19,1 | 28,5 | 6,5 | 18,6 | 42,6 | 47,1 | 65,2 | 74,8 | 10,5 | 20 | | | 3.72 € | | | B0543.30816 | rape yellow RAL 1021 | high performance thermoplastic | 3 | M8 | 14 | 16 | 21,2 | 21,9 | 37 | 10 | 24 | 54 | 59,2 | 80,2 | 91,1 | 11,5 | 22 | | | 4.60 € | | | B0543.31016 | rape yellow RAL 1021 | high performance thermoplastic | 3 | M10 | 14 | 16 | 21,2 | 21,9 | 37 | 10 | 24 | 54 | 59,2 | 80,2 | 91,1 | 11,5 | 22 | | | 4.60 € | | | B0543.41016 | rape yellow RAL 1021 | high performance thermoplastic | 4 | M10 | 17 | 19 | 26,2 | 27,1 | 43,1 | 10 | 27,8 | 62,4 | 68,1 | 96,8 | 110,3 | 14,1 | 24 | | | 5.83 € | | | B0543.41216 | rape yellow RAL 1021 | high performance thermoplastic | 4 | M12 | 17 | 19 | 26,2 | 27,1 | 43,1 | 10 | 27,8 | 62,4 | 68,1 | 96,8 | 110,3 | 14,1 | 24 | | | 5.83 € | | | B0543.51216 | rape yellow RAL 1021 | high performance thermoplastic | 5 | M12 | 23 | 23 | 30,5 | 31,5 | 49,1 | 12 | 30,8 | 72,9 | 79,2 | 110,9 | 126,6 | 15,1 | 26 | | | 7.03 € | | | B0543.51616 | rape yellow RAL 1021 | high performance thermoplastic | 5 | M16 | 23 | 23 | 30,5 | 31,5 | 49,1 | 12 | 30,8 | 72,9 | 79,2 | 110,9 | 126,6 | 15,1 | 26 | | | 7.03 € | | | B0543.90384 | traffic red RAL 3020 | high performance thermoplastic | 9 | M3 | 6 | 8 | 10,5 | 11 | 21,4 | 4 | 12,4 | 24 | 27 | 22 | 27,5 | 6,4 | 12 | | | 2.99 € | | | B0543.90484 | traffic red RAL 3020 | high performance thermoplastic | 9 | M4 | 6 | 8 | 10,5 | 11 | 21,4 | 4 | 12,4 | 24 | 27 | 22 | 27,5 | 6,4 | 12 | | | 2.99 € | | | B0543.90584 | traffic red RAL 3020 | high performance thermoplastic | 9 | M5 | 6 | 8 | 10,5 | 11 | 21,4 | 4 | 12,4 | 24 | 27 | 22 | 27,5 | 6,4 | 12 | | | 2.99 € | | | B0543.00384 | traffic red RAL 3020 | high performance thermoplastic | 0 | M3 | 9 | 10 | 13,2 | 13,8 | 24,5 | 4 | 15,5 | 30 | 33,5 | 30 | 36,9 | 7,6 | 16 | | | 3.14 € | | | B0543.00484 | traffic red RAL 3020 | high performance thermoplastic | 0 | M4 | 9 | 10 | 13,2 | 13,8 | 24,5 | 4 | 15,5 | 30 | 33,5 | 30 | 36,9 | 7,6 | 16 | | | 3.14 € | | | B0543.00584 | traffic red RAL 3020 | high performance thermoplastic | 0 | M5 | 9 | 10 | 13,2 | 13,8 | 24,5 | 4 | 15,5 | 30 | 33,5 | 30 | 36,9 | 7,6 | 16 | | | 3.14 € | | | B0543.10484 | red RAL 3020 | high performance thermoplastic | 1 | M4 | 9 | 10 | 13,2 | 13,8 | 24,5 | 4 | 14,2 | 30,8 | 35 | 39,9 | 46,8 | 7,9 | 16 | | | 3.14 € | | | B0543.10584 | red RAL 3020 | high performance thermoplastic | 1 | M5 | 9 | 10 | 13,2 | 13,8 | 24,5 | 4 | 14,2 | 30,8 | 35 | 39,9 | 46,8 | 7,9 | 16 | | | 3.14 € | | | B0543.10684 | red RAL 3020 | high performance thermoplastic | 1 | M6 | 9 | 10 | 13,2 | 13,8 | 24,5 | 4 | 14,2 | 30,8 | 35 | 39,9 | 46,8 | 7,9 | 16 | | | 3.14 € | | | B0543.20684 | red RAL 3020 | high performance thermoplastic | 2 | M6 | 12 | 13,5 | 18,5 | 19,1 | 28,5 | 6,5 | 18,6 | 42,6 | 47,1 | 65,2 | 74,8 | 10,5 | 20 | | | 3.72 € | | | B0543.20884 | red RAL 3020 | high performance thermoplastic | 2 | M8 | 12 | 13,5 | 18,5 | 19,1 | 28,5 | 6,5 | 18,6 | 42,6 | 47,1 | 65,2 | 74,8 | 10,5 | 20 | | | 3.72 € | | | B0543.30884 | red RAL 3020 | high performance thermoplastic | 3 | M8 | 14 | 16 | 21,2 | 21,9 | 37 | 10 | 24 | 54 | 59,2 | 80,2 | 91,1 | 11,5 | 22 | | | 4.60 € | | | B0543.31084 | red RAL 3020 | high performance thermoplastic | 3 | M10 | 14 | 16 | 21,2 | 21,9 | 37 | 10 | 24 | 54 | 59,2 | 80,2 | 91,1 | 11,5 | 22 | | | 4.60 € | | | B0543.41084 | red RAL 3020 | high performance thermoplastic | 4 | M10 | 17 | 19 | 26,2 | 27,1 | 43,1 | 10 | 27,8 | 62,4 | 68,1 | 96,8 | 110,3 | 14,1 | 24 | | | 5.83 € | | | B0543.41284 | red RAL 3020 | high performance thermoplastic | 4 | M12 | 17 | 19 | 26,2 | 27,1 | 43,1 | 10 | 27,8 | 62,4 | 68,1 | 96,8 | 110,3 | 14,1 | 24 | | | 5.83 € | | | B0543.51284 | red RAL 3020 | high performance thermoplastic | 5 | M12 | 23 | 23 | 30,5 | 31,5 | 49,1 | 12 | 30,8 | 72,9 | 79,2 | 110,9 | 126,6 | 15,1 | 26 | | | 7.03 € | | | B0543.51684 | red RAL 3020 | high performance thermoplastic | 5 | M16 | 23 | 23 | 30,5 | 31,5 | 49,1 | 12 | 30,8 | 72,9 | 79,2 | 110,9 | 126,6 | 15,1 | 26 | | | 7.03 € | | | B0543.90386 | signal green RAL 6032 | high performance thermoplastic | 9 | M3 | 6 | 8 | 10,5 | 11 | 21,4 | 4 | 12,4 | 24 | 27 | 22 | 27,5 | 6,4 | 12 | | | 2.99 € | | | B0543.90486 | signal green RAL 6032 | high performance thermoplastic | 9 | M4 | 6 | 8 | 10,5 | 11 | 21,4 | 4 | 12,4 | 24 | 27 | 22 | 27,5 | 6,4 | 12 | | | 2.99 € | | | B0543.90586 | signal green RAL 6032 | high performance thermoplastic | 9 | M5 | 6 | 8 | 10,5 | 11 | 21,4 | 4 | 12,4 | 24 | 27 | 22 | 27,5 | 6,4 | 12 | | | 2.99 € | | | B0543.00386 | signal green RAL 6032 | high performance thermoplastic | 0 | M3 | 9 | 10 | 13,2 | 13,8 | 24,5 | 4 | 15,5 | 30 | 33,5 | 30 | 36,9 | 7,6 | 16 | | | 3.14 € | | | B0543.00486 | signal green RAL 6032 | high performance thermoplastic | 0 | M4 | 9 | 10 | 13,2 | 13,8 | 24,5 | 4 | 15,5 | 30 | 33,5 | 30 | 36,9 | 7,6 | 16 | | | 3.14 € | | | B0543.00586 | signal green RAL 6032 | high performance thermoplastic | 0 | M5 | 9 | 10 | 13,2 | 13,8 | 24,5 | 4 | 15,5 | 30 | 33,5 | 30 | 36,9 | 7,6 | 16 | | | 3.14 € | | | B0543.10486 | signal green RAL 6032 | high performance thermoplastic | 1 | M4 | 9 | 10 | 13,2 | 13,8 | 24,5 | 4 | 14,2 | 30,8 | 35 | 39,9 | 46,8 | 7,9 | 16 | | | 3.14 € | | | B0543.10586 | signal green RAL 6032 | high performance thermoplastic | 1 | M5 | 9 | 10 | 13,2 | 13,8 | 24,5 | 4 | 14,2 | 30,8 | 35 | 39,9 | 46,8 | 7,9 | 16 | | | 3.14 € | | | B0543.10686 | signal green RAL 6032 | high performance thermoplastic | 1 | M6 | 9 | 10 | 13,2 | 13,8 | 24,5 | 4 | 14,2 | 30,8 | 35 | 39,9 | 46,8 | 7,9 | 16 | | | 3.14 € | | | B0543.20686 | signal green RAL 6032 | high performance thermoplastic | 2 | M6 | 12 | 13,5 | 18,5 | 19,1 | 28,5 | 6,5 | 18,6 | 42,6 | 47,1 | 65,2 | 74,8 | 10,5 | 20 | | | 3.72 € | | | B0543.20886 | signal green RAL 6032 | high performance thermoplastic | 2 | M8 | 12 | 13,5 | 18,5 | 19,1 | 28,5 | 6,5 | 18,6 | 42,6 | 47,1 | 65,2 | 74,8 | 10,5 | 20 | | | 3.72 € | | | B0543.30886 | signal green RAL 6032 | high performance thermoplastic | 3 | M8 | 14 | 16 | 21,2 | 21,9 | 37 | 10 | 24 | 54 | 59,2 | 80,2 | 91,1 | 11,5 | 22 | | | 4.60 € | | | B0543.31086 | signal green RAL 6032 | high performance thermoplastic | 3 | M10 | 14 | 16 | 21,2 | 21,9 | 37 | 10 | 24 | 54 | 59,2 | 80,2 | 91,1 | 11,5 | 22 | | | 4.60 € | | | B0543.41086 | signal green RAL 6032 | high performance thermoplastic | 4 | M10 | 17 | 19 | 26,2 | 27,1 | 43,1 | 10 | 27,8 | 62,4 | 68,1 | 96,8 | 110,3 | 14,1 | 24 | | | 5.83 € | | | B0543.41286 | signal green RAL 6032 | high performance thermoplastic | 4 | M12 | 17 | 19 | 26,2 | 27,1 | 43,1 | 10 | 27,8 | 62,4 | 68,1 | 96,8 | 110,3 | 14,1 | 24 | | | 5.83 € | | | B0543.51286 | signal green RAL 6032 | high performance thermoplastic | 5 | M12 | 23 | 23 | 30,5 | 31,5 | 49,1 | 12 | 30,8 | 72,9 | 79,2 | 110,9 | 126,6 | 15,1 | 26 | | | 7.03 € | | | B0543.51686 | signal green RAL 6032 | high performance thermoplastic | 5 | M16 | 23 | 23 | 30,5 | 31,5 | 49,1 | 12 | 30,8 | 72,9 | 79,2 | 110,9 | 126,6 | 15,1 | 26 | | | 7.03 € | | | B0543.90387 | traffic blue RAL 5017 | high performance thermoplastic | 9 | M3 | 6 | 8 | 10,5 | 11 | 21,4 | 4 | 12,4 | 24 | 27 | 22 | 27,5 | 6,4 | 12 | | | 2.99 € | | | B0543.90487 | traffic blue RAL 5017 | high performance thermoplastic | 9 | M4 | 6 | 8 | 10,5 | 11 | 21,4 | 4 | 12,4 | 24 | 27 | 22 | 27,5 | 6,4 | 12 | | | 2.99 € | | | B0543.90587 | traffic blue RAL 5017 | high performance thermoplastic | 9 | M5 | 6 | 8 | 10,5 | 11 | 21,4 | 4 | 12,4 | 24 | 27 | 22 | 27,5 | 6,4 | 12 | | | 2.99 € | | | B0543.00387 | traffic blue RAL 5017 | high performance thermoplastic | 0 | M3 | 9 | 10 | 13,2 | 13,8 | 24,5 | 4 | 15,5 | 30 | 33,5 | 30 | 36,9 | 7,6 | 16 | | | 3.14 € | | | B0543.00487 | traffic blue RAL 5017 | high performance thermoplastic | 0 | M4 | 9 | 10 | 13,2 | 13,8 | 24,5 | 4 | 15,5 | 30 | 33,5 | 30 | 36,9 | 7,6 | 16 | | | 3.14 € | | | B0543.00587 | traffic blue RAL 5017 | high performance thermoplastic | 0 | M5 | 9 | 10 | 13,2 | 13,8 | 24,5 | 4 | 15,5 | 30 | 33,5 | 30 | 36,9 | 7,6 | 16 | | | 3.14 € | | | B0543.10487 | traffic blue RAL 5017 | high performance thermoplastic | 1 | M4 | 9 | 10 | 13,2 | 13,8 | 24,5 | 4 | 14,2 | 30,8 | 35 | 39,9 | 46,8 | 7,9 | 16 | | | 3.14 € | | | B0543.10587 | traffic blue RAL 5017 | high performance thermoplastic | 1 | M5 | 9 | 10 | 13,2 | 13,8 | 24,5 | 4 | 14,2 | 30,8 | 35 | 39,9 | 46,8 | 7,9 | 16 | | | 3.14 € | | | B0543.10687 | traffic blue RAL 5017 | high performance thermoplastic | 1 | M6 | 9 | 10 | 13,2 | 13,8 | 24,5 | 4 | 14,2 | 30,8 | 35 | 39,9 | 46,8 | 7,9 | 16 | | | 3.14 € | | | B0543.20687 | traffic blue RAL 5017 | high performance thermoplastic | 2 | M6 | 12 | 13,5 | 18,5 | 19,1 | 28,5 | 6,5 | 18,6 | 42,6 | 47,1 | 65,2 | 74,8 | 10,5 | 20 | | | 3.72 € | | | B0543.20887 | traffic blue RAL 5017 | high performance thermoplastic | 2 | M8 | 12 | 13,5 | 18,5 | 19,1 | 28,5 | 6,5 | 18,6 | 42,6 | 47,1 | 65,2 | 74,8 | 10,5 | 20 | | | 3.72 € | | | B0543.30887 | traffic blue RAL 5017 | high performance thermoplastic | 3 | M8 | 14 | 16 | 21,2 | 21,9 | 37 | 10 | 24 | 54 | 59,2 | 80,2 | 91,1 | 11,5 | 22 | | | 4.60 € | | | B0543.31087 | traffic blue RAL 5017 | high performance thermoplastic | 3 | M10 | 14 | 16 | 21,2 | 21,9 | 37 | 10 | 24 | 54 | 59,2 | 80,2 | 91,1 | 11,5 | 22 | | | 4.60 € | | | B0543.41087 | traffic blue RAL 5017 | high performance thermoplastic | 4 | M10 | 17 | 19 | 26,2 | 27,1 | 43,1 | 10 | 27,8 | 62,4 | 68,1 | 96,8 | 110,3 | 14,1 | 24 | | | 5.83 € | | | B0543.41287 | traffic blue RAL 5017 | high performance thermoplastic | 4 | M12 | 17 | 19 | 26,2 | 27,1 | 43,1 | 10 | 27,8 | 62,4 | 68,1 | 96,8 | 110,3 | 14,1 | 24 | | | 5.83 € | | | B0543.51287 | traffic blue RAL 5017 | high performance thermoplastic | 5 | M12 | 23 | 23 | 30,5 | 31,5 | 49,1 | 12 | 30,8 | 72,9 | 79,2 | 110,9 | 126,6 | 15,1 | 26 | | | 7.03 € | | | B0543.51687 | traffic blue RAL 5017 | high performance thermoplastic | 5 | M16 | 23 | 23 | 30,5 | 31,5 | 49,1 | 12 | 30,8 | 72,9 | 79,2 | 110,9 | 126,6 | 15,1 | 26 | | | 7.03 € | | | B0543.90388 | light grey RAL 7035 | high performance thermoplastic | 9 | M3 | 6 | 8 | 10,5 | 11 | 21,4 | 4 | 12,4 | 24 | 27 | 22 | 27,5 | 6,4 | 12 | | | 2.99 € | | | B0543.90488 | light grey RAL 7035 | high performance thermoplastic | 9 | M4 | 6 | 8 | 10,5 | 11 | 21,4 | 4 | 12,4 | 24 | 27 | 22 | 27,5 | 6,4 | 12 | | | 2.99 € | | | B0543.90588 | light grey RAL 7035 | high performance thermoplastic | 9 | M5 | 6 | 8 | 10,5 | 11 | 21,4 | 4 | 12,4 | 24 | 27 | 22 | 27,5 | 6,4 | 12 | | | 2.99 € | | | B0543.00388 | light grey RAL 7035 | high performance thermoplastic | 0 | M3 | 9 | 10 | 13,2 | 13,8 | 24,5 | 4 | 15,5 | 30 | 33,5 | 30 | 36,9 | 7,6 | 16 | | | 3.14 € | | | B0543.00488 | light grey RAL 7035 | high performance thermoplastic | 0 | M4 | 9 | 10 | 13,2 | 13,8 | 24,5 | 4 | 15,5 | 30 | 33,5 | 30 | 36,9 | 7,6 | 16 | | | 3.14 € | | | B0543.00588 | light grey RAL 7035 | high performance thermoplastic | 0 | M5 | 9 | 10 | 13,2 | 13,8 | 24,5 | 4 | 15,5 | 30 | 33,5 | 30 | 36,9 | 7,6 | 16 | | | 3.14 € | | | B0543.10488 | light grey RAL 7035 | high performance thermoplastic | 1 | M4 | 9 | 10 | 13,2 | 13,8 | 24,5 | 4 | 14,2 | 30,8 | 35 | 39,9 | 46,8 | 7,9 | 16 | | | 3.14 € | | | B0543.10588 | light grey RAL 7035 | high performance thermoplastic | 1 | M5 | 9 | 10 | 13,2 | 13,8 | 24,5 | 4 | 14,2 | 30,8 | 35 | 39,9 | 46,8 | 7,9 | 16 | | | 3.14 € | | | B0543.10688 | light grey RAL 7035 | high performance thermoplastic | 1 | M6 | 9 | 10 | 13,2 | 13,8 | 24,5 | 4 | 14,2 | 30,8 | 35 | 39,9 | 46,8 | 7,9 | 16 | | | 3.14 € | | | B0543.20688 | light grey RAL 7035 | high performance thermoplastic | 2 | M6 | 12 | 13,5 | 18,5 | 19,1 | 28,5 | 6,5 | 18,6 | 42,6 | 47,1 | 65,2 | 74,8 | 10,5 | 20 | | | 3.72 € | | | B0543.20888 | light grey RAL 7035 | high performance thermoplastic | 2 | M8 | 12 | 13,5 | 18,5 | 19,1 | 28,5 | 6,5 | 18,6 | 42,6 | 47,1 | 65,2 | 74,8 | 10,5 | 20 | | | 3.72 € | | | B0543.30888 | light grey RAL 7035 | high performance thermoplastic | 3 | M8 | 14 | 16 | 21,2 | 21,9 | 37 | 10 | 24 | 54 | 59,2 | 80,2 | 91,1 | 11,5 | 22 | | | 4.60 € | | | B0543.31088 | light grey RAL 7035 | high performance thermoplastic | 3 | M10 | 14 | 16 | 21,2 | 21,9 | 37 | 10 | 24 | 54 | 59,2 | 80,2 | 91,1 | 11,5 | 22 | | | 4.60 € | | | B0543.41088 | light grey RAL 7035 | high performance thermoplastic | 4 | M10 | 17 | 19 | 26,2 | 27,1 | 43,1 | 10 | 27,8 | 62,4 | 68,1 | 96,8 | 110,3 | 14,1 | 24 | | | 5.83 € | | | B0543.41288 | light grey RAL 7035 | high performance thermoplastic | 4 | M12 | 17 | 19 | 26,2 | 27,1 | 43,1 | 10 | 27,8 | 62,4 | 68,1 | 96,8 | 110,3 | 14,1 | 24 | | | 5.83 € | | | B0543.51288 | light grey RAL 7035 | high performance thermoplastic | 5 | M12 | 23 | 23 | 30,5 | 31,5 | 49,1 | 12 | 30,8 | 72,9 | 79,2 | 110,9 | 126,6 | 15,1 | 26 | | | 7.03 € | | | B0543.51688 | light grey RAL 7035 | high performance thermoplastic | 5 | M16 | 23 | 23 | 30,5 | 31,5 | 49,1 | 12 | 30,8 | 72,9 | 79,2 | 110,9 | 126,6 | 15,1 | 26 | | | 7.03 € | |
