Product groups
Clevises, steel or stainless steel
DIN 71752
B0583

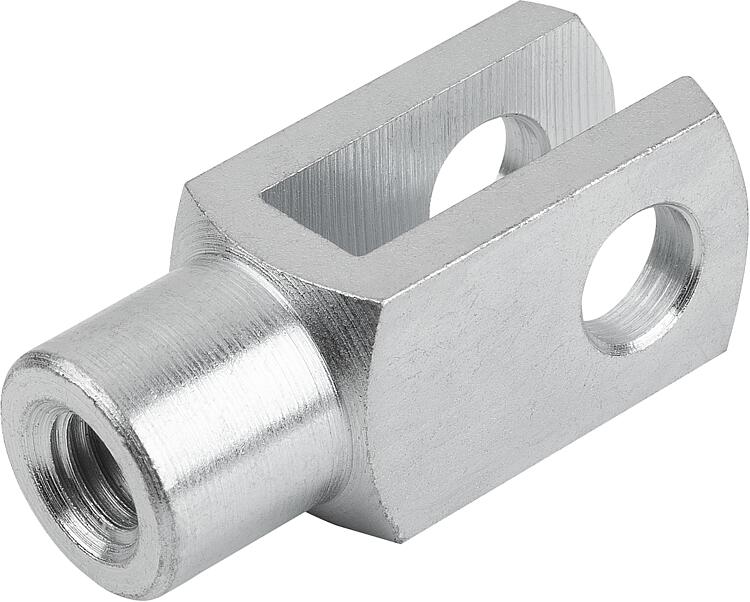

Clevises, steel or stainless steel DIN 71752

go back

Item description/product images

DescriptionMaterial:

Steel or 1.4305 stainless steel.

Version:Steel electro zinc-plated. Stainless steel bright.Note:*similar to DIN 71752.
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 B0583_Datasheet_33906_Clevises_steel_or_stainless_steel_DIN_71752--en 256 kB

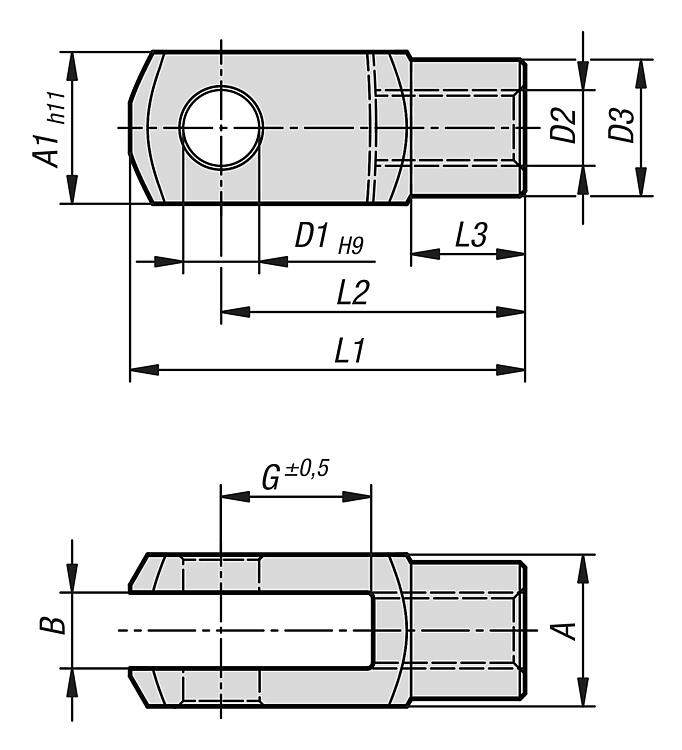

Drawings

Clevises, steel or stainless steel
DIN 71752

Item selection/filter

Order No.Main
material
Version 2AA1BD1

D2D3GL1L2L3CADAcc.PriceOrder
B0583.2040steelRH thread40402020*M2034401058030 9.18 €
B0583.0408steelRH thread8844M48821166 0.93 €
B0583.0510steelRH thread101055M591026207,5 0.81 €
B0583.0612steelRH thread121266M6101231249 0.93 €
B0583.0816steelRH thread161688M81416423212 1.34 €
B0583.0832steelRH thread161688M81432584812 1.53 €
B0583.1020steelRH thread20201010M101820524015 1.91 €
B0583.10120steelRH thread20201010M10x1,251820524015 1.91 €
B0583.1040steelRH thread20201010M101840726015 2.54 €
B0583.1224steelRH thread24241212M122024624818 3.13 €
B0583.12124steelRH thread24241212*M12X1,252024624818 3.13 €
B0583.1248steelRH thread24241212M122048867218 3.74 €
B0583.1428steelRH thread27271414M142428725622,5 4.66 €
B0583.14128steelRH thread27271414M14x1,52428725622,5 5.11 €
B0583.1632steelRH thread32321616M162632836424 6.70 €
B0583.16132steelRH thread32321616M16x1,52632836424 5.89 €
B0583.06121steelLH thread121266M6101231249 1.13 €
B0583.08161steelLH thread161688M81416423212 1.47 €
B0583.08321steelLH thread161688M81432584812 1.55 €
B0583.10201steelLH thread20201010M101820524015 2.11 €
B0583.10401steelLH thread20201010M101840726015 2.85 €
B0583.12241steelLH thread24241212M122024624818 3.44 €
B0583.16321steelLH thread32321616M162632836424 6.48 €
B0583.20401steelLH thread40402020*M2034401058030 10.90 €
B0583.10408stainless steel A2RH thread8844M48821166 2.91 €
B0583.10510stainless steel A2RH thread101055M591026207,5 2.86 €
B0583.10612stainless steel A2RH thread121266M6101231249 4.13 €
B0583.10816stainless steel A2RH thread161688M81416423212 5.54 €
B0583.10832stainless steel A2RH thread161688M81432584812 8.92 €
B0583.11020stainless steel A2RH thread20201010M101820524015 7.48 €
B0583.11040stainless steel A2RH thread20201010M101840726015 9.63 €
B0583.11224stainless steel A2RH thread24241212M122024624818 11.60 €
B0583.11248stainless steel A2RH thread24241212M122048867218 15.45 €
B0583.11428stainless steel A2RH thread27271414M142428725622,5 31.70 €
B0583.11632stainless steel A2RH thread32321616M162632836424 34.08 €
B0583.12040stainless steel A2RH thread40402020*M2034401058030 52.95 €
B0583.104081stainless steel A2LH thread8844M48821166 8.79 €
B0583.105101stainless steel A2LH thread101055M591026207,5 8.18 €
B0583.106121stainless steel A2LH thread121266M6101231249 4.11 €
B0583.108161stainless steel A2LH thread161688M81416423212 4.64 €
B0583.108321stainless steel A2LH thread161688M81432584812 17.09 €
B0583.110201stainless steel A2LH thread20201010M101820524015 6.46 €
B0583.110401stainless steel A2LH thread20201010M101840726015 21.51 €
B0583.112241stainless steel A2LH thread24241212M122024624818 15.87 €
B0583.114281stainless steel A2LH thread27271414M142428725622,5 32.98 €
B0583.116321stainless steel A2LH thread32321616M162632836424 32.01 €
B0583.120401stainless steel A2LH thread40402020*M2034401058030 74.28 €
