B0557DIN 433 washer, steel or stainless steel |
go back |
|

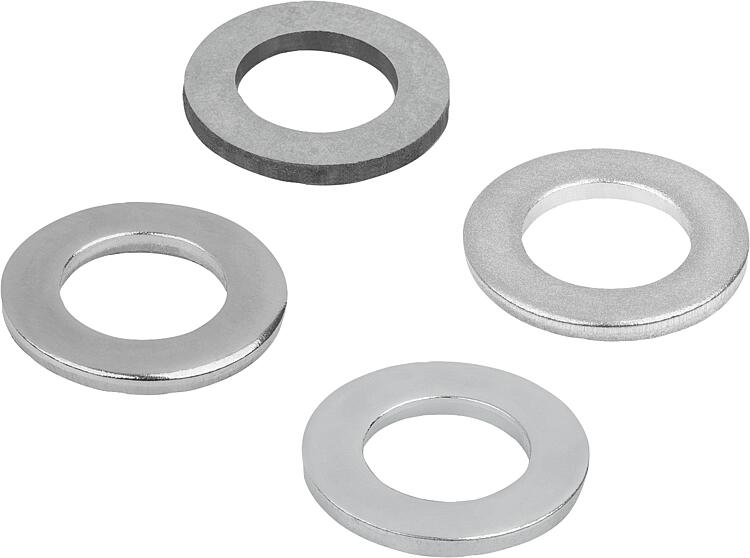

Item description/product images |
|
|
DescriptionMaterial:Washers steel or stainless steel.Version:Steel bright or electro zinc-plated.
Stainless steel bright.Note:DIN 433 washers are washers manufactured as per the DIN 433 standard. The washers are used to distribute the load over a larger area and prevent the screw head or nut from penetrating the material.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

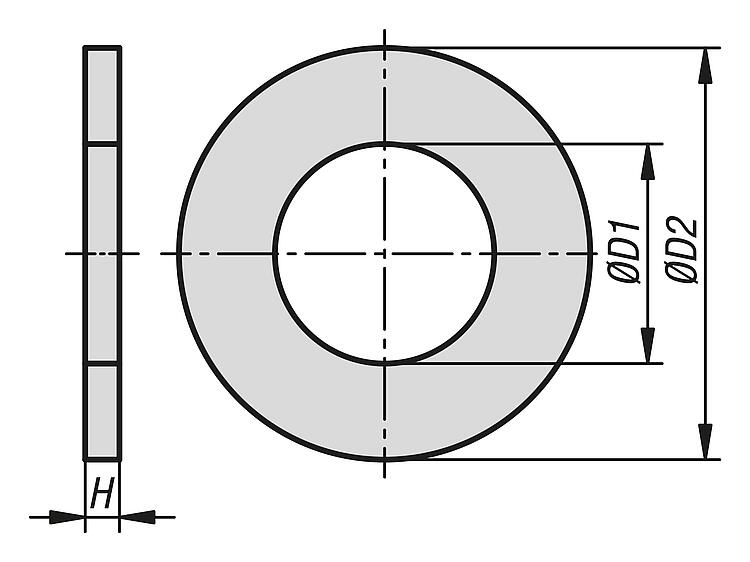

| Order No. | Main
material | Surface finish
body | D1
| D2 | H | for
screws
| CAD | Acc. | Price | Order |
|---|
| B0557.030 | steel | bright | 3,2 | 6 | 0,5 | M3 |  | | 0.10 € | | | B0557.040 | steel | bright | 4,3 | 8 | 0,5 | M4 | | | 0.10 € | | | B0557.050 | steel | bright | 5,3 | 9 | 1 | M5 | | | 0.10 € | | | B0557.060 | steel | bright | 6,4 | 11 | 1,6 | M6 | | | 0.10 € | | | B0557.080 | steel | bright | 8,4 | 15 | 1,6 | M8 | | | 0.10 € | | | B0557.100 | steel | bright | 10,5 | 18 | 1,6 | M10 | | | 0.10 € | | | B0557.120 | steel | bright | 13 | 20 | 2 | M12 | | | 0.10 € | | | B0557.140 | steel | bright | 15 | 24 | 2,5 | M14 | | | 0.22 € | | | B0557.160 | steel | bright | 17 | 28 | 2,5 | M16 | | | 0.24 € | | | B0557.180 | steel | bright | 19 | 30 | 3 | M18 | | | 0.32 € | | | B0557.200 | steel | bright | 21 | 34 | 3 | M20 | | | 0.37 € | | | B0557.031 | steel | galvanised | 3,2 | 6 | 0,5 | M3 | | | 0.10 € | | | B0557.041 | steel | galvanised | 4,3 | 8 | 0,5 | M4 | | | 0.10 € | | | B0557.051 | steel | galvanised | 5,3 | 9 | 1 | M5 | | | 0.10 € | | | B0557.061 | steel | galvanised | 6,4 | 11 | 1,6 | M6 | | | 0.13 € | | | B0557.081 | steel | galvanised | 8,4 | 15 | 1,6 | M8 | | | 0.16 € | | | B0557.101 | steel | galvanised | 10,5 | 18 | 1,6 | M10 | | | 0.20 € | | | B0557.121 | steel | galvanised | 13 | 20 | 2 | M12 | | | 0.22 € | | | B0557.141 | steel | galvanised | 15 | 24 | 2,5 | M14 | | | 0.24 € | | | B0557.161 | steel | galvanised | 17 | 28 | 2,5 | M16 | | | 0.27 € | | | B0557.181 | steel | galvanised | 19 | 30 | 3 | M18 | | | 0.32 € | | | B0557.201 | steel | galvanised | 21 | 34 | 3 | M20 | | | 0.35 € | | | B0557.1030 | stainless steel A2 | bright | 3,2 | 6 | 0,5 | M3 | | | 0.10 € | | | B0557.1040 | stainless steel A2 | bright | 4,3 | 8 | 0,5 | M4 | | | 0.10 € | | | B0557.1050 | stainless steel A2 | bright | 5,3 | 9 | 1 | M5 | | | 0.10 € | | | B0557.1060 | stainless steel A2 | bright | 6,4 | 11 | 1,6 | M6 | | | 0.10 € | | | B0557.1080 | stainless steel A2 | bright | 8,4 | 15 | 1,6 | M8 | | | 0.20 € | | | B0557.1100 | stainless steel A2 | bright | 10,5 | 18 | 1,6 | M10 | | | 0.22 € | | | B0557.1120 | stainless steel A2 | bright | 13 | 20 | 2 | M12 | | | 0.24 € | | | B0557.1140 | stainless steel A2 | bright | 15 | 24 | 2,5 | M14 | | | 0.37 € | | | B0557.1160 | stainless steel A2 | bright | 17 | 28 | 2,5 | M16 | | | 0.54 € | | | B0557.6030 | stainless steel A4 | bright | 3,2 | 6 | 0,5 | M3 | | | 0.10 € | | | B0557.6040 | stainless steel A4 | bright | 4,3 | 8 | 0,5 | M4 | | | 0.10 € | | | B0557.6050 | stainless steel A4 | bright | 5,3 | 9 | 1 | M5 | | | 0.10 € | | | B0557.6060 | stainless steel A4 | bright | 6,4 | 11 | 1,6 | M6 | | | 0.22 € | | | B0557.6080 | stainless steel A4 | bright | 8,4 | 15 | 1,6 | M8 | | | 0.27 € | | | B0557.6100 | stainless steel A4 | bright | 10,5 | 18 | 1,6 | M10 | | | 0.37 € | | | B0557.6120 | stainless steel A4 | bright | 13 | 20 | 2 | M12 | | | 0.42 € | | | B0557.6160 | stainless steel A4 | bright | 17 | 28 | 2,5 | M16 | | | 0.74 € | | | B0557.6180 | stainless steel A4 | bright | 19 | 30 | 3 | M18 | | | 1.12 € | | | B0557.6200 | stainless steel A4 | bright | 21 | 34 | 3 | M20 | | | 1.17 € | |
