Indexing plungers, steel or stainless steel with plastic cam lever
 B0600

Indexing plungers, steel or stainless steel with plastic cam...

 go back

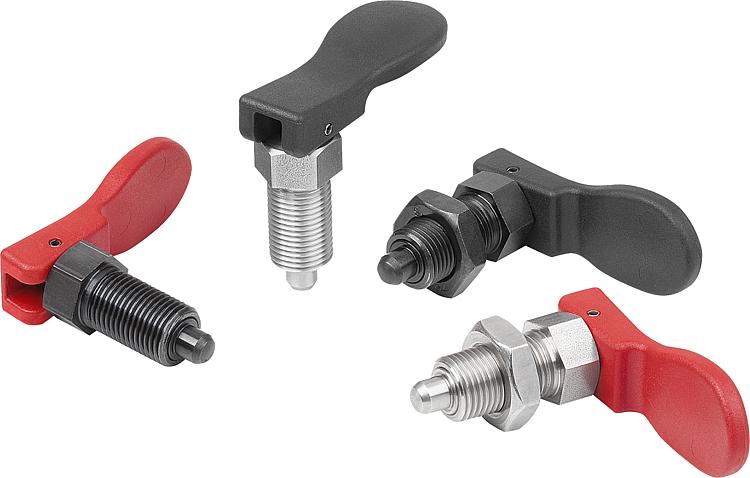

Item description/product images

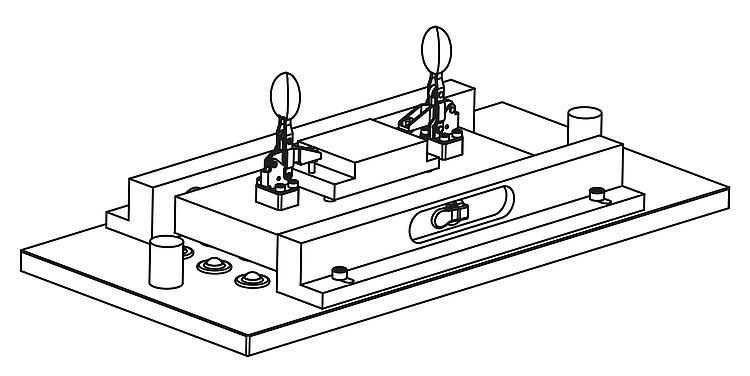

DescriptionProduct description:Indexing plungers are used where it is necessary to prevent changes of position due to lateral forces. A new locking position can be set only after the plunger has been manually disengaged. With this indexing plunger a cam lever is used to retract the pin. The indexing plunger remains unlocked as long as the handle is positioned over the dead-centre of the cam.
The ergonomic cam lever enables light handling with low effort. Material:

Steel version:
Grub screw and indexing pin steel.

Stainless steel version:
Threaded sleeve 1.4305.
Indexing pin 1.4305.
Handle fibreglass reinforced thermoplastic PPA (high temperature resistant).

Version:Steel version:
Threaded sleeve, black oxidised.
Indexing pin hardened, ground and black oxidised.

Stainless steel version:
Threaded sleeve, bright.
Indexing pin ground and left bright.

Grip black or traffic red RAL3020.Temperature range:Permanent operating temperature acc. to IEC 216 max. 160°C.
Short-term operating temperature max. 250°C.Advantages:Simple and quick operation.
Suitable for high temperature applications.
With integrated detent function.On request:Special versions.Accessory:Spacer rings B0064.
Positioning bushes for indexing plunger B0063.
Mounting brackets B0065, B0066.Drawing reference:

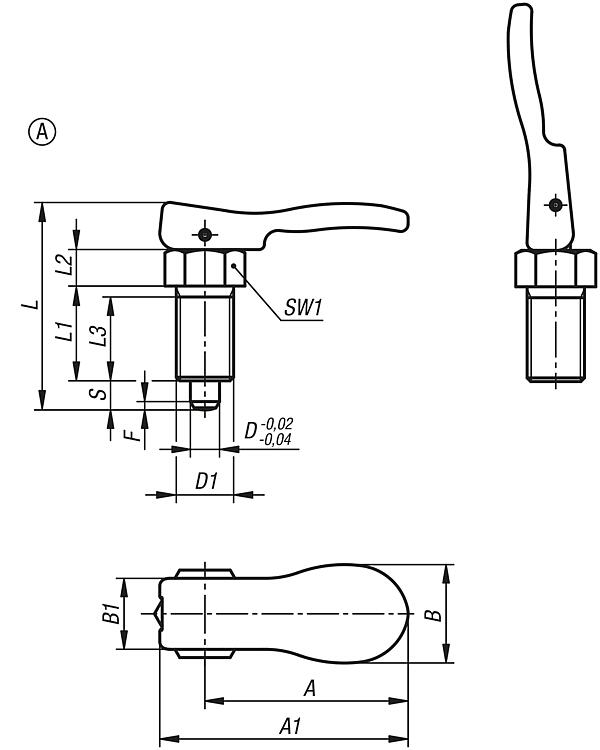

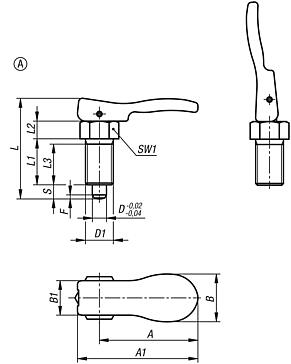

Form A: without locknut

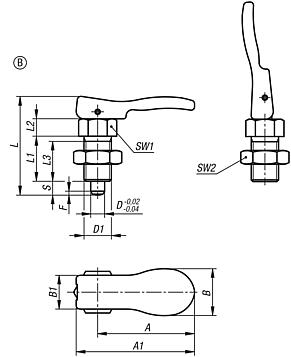

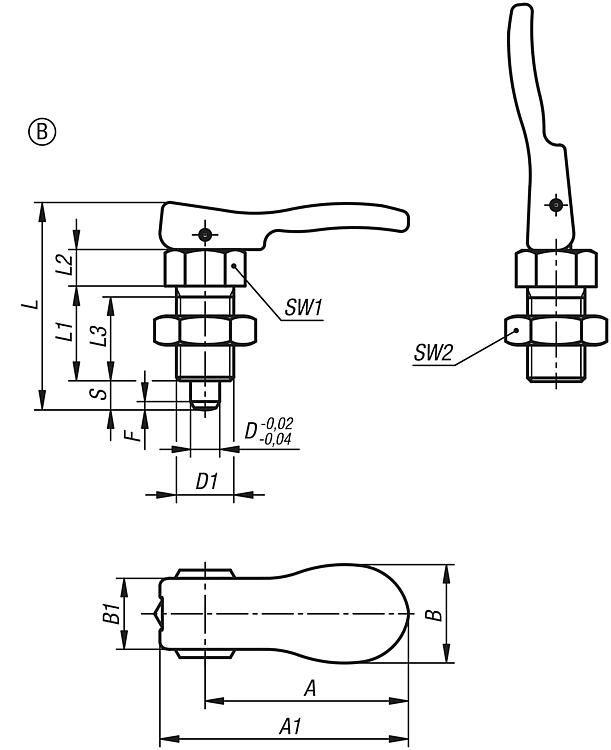

Form B: with locknut
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
Datasheet B0600 Indexing plungers, steel or stainless steel with plastic cam lever 258 kB

Drawings (total overview)

Indexing plungers, steel or stainless steel with plastic cam lever

Indexing plungers, steel or stainless steel with plastic cam lever

 More information

Drawings
Indexing plungers, steel or stainless steel with plastic cam lever

Item selection/filter
Order No.Main
material		Component
colour		FormAA1BB1D

D1Travel
S		LL1L2L3SW1Fx30°Spring force
initial pressure
F1 approx. N		Spring force
final pressure
F2 approx. N		CADAcc.PriceOrder
B0600.8105steelblackA31,741,717,912,95M10x153917715131,3512 9.31 €
B0600.8206steelblackA31,641,717,912,96M12x1,564420817141,8614 10.34 €
B0600.8308steelblackA55,567,826,919,48M16x1,5856,9261023192,31535 12.35 €
B0600.8410steelblackA53,467,826,919,410M20x1,51062,9281225222,81534 20.06 €
B0600.8105154steeltraffic red RAL 3020A31,741,717,912,95M10x153917715131,3512 9.31 €
B0600.8206154steeltraffic red RAL 3020A31,641,717,912,96M12x1,564420817141,8614 10.34 €
B0600.8308154steeltraffic red RAL 3020A55,567,826,919,48M16x1,5856,9261023192,31535 12.35 €
B0600.8410154steeltraffic red RAL 3020A53,467,826,919,410M20x1,51062,9281225222,81534 20.06 €
B0600.18105stainless steelblackA31,741,717,912,95M10x153917715131,3512 13.55 €
B0600.18206stainless steelblackA31,641,717,912,96M12x1,564420817141,8614 16.03 €
B0600.18308stainless steelblackA55,567,826,919,48M16x1,5856,9261023192,31535 21.74 €
B0600.18410stainless steelblackA53,467,826,919,410M20x1,51062,9281225222,81534 41.95 €
B0600.18105154stainless steeltraffic red RAL 3020A31,741,717,912,95M10x153917715131,3512 13.55 €
B0600.18206154stainless steeltraffic red RAL 3020A31,641,717,912,96M12x1,564420817141,8614 16.03 €
B0600.18308154stainless steeltraffic red RAL 3020A55,567,826,919,48M16x1,5856,9261023192,31535 21.74 €
B0600.18410154stainless steeltraffic red RAL 3020A53,467,826,919,410M20x1,51062,9281225222,81534 41.95 €

Indexing plungers, steel or stainless steel with plastic cam lever and locknut

 More information

Drawings
Indexing plungers, steel or stainless steel with plastic cam lever and locknut

Item selection/filter
Order No.Main
material		Component
colour		FormAA1BB1D

D1Travel
S		LL1L2L3SW1SW2Fx30°Spring force
initial pressure
F1 approx. N		Spring force
final pressure
F2 approx. N		CADAcc.PriceOrder
B0600.9105steelblackB31,741,717,912,95M10x15391771513171,3512 9.43 €
B0600.9206steelblackB31,641,717,912,96M12x1,56442081714191,8614 10.49 €
B0600.9308steelblackB55,567,826,919,48M16x1,5856,926102319242,31535 12.65 €
B0600.9410steelblackB53,467,826,919,410M20x1,51062,928122522302,81534 20.46 €
B0600.9105154steeltraffic red RAL 3020B31,741,717,912,95M10x15391771513171,3512 9.43 €
B0600.9206154steeltraffic red RAL 3020B31,641,717,912,96M12x1,56442081714191,8614 10.49 €
B0600.9308154steeltraffic red RAL 3020B55,567,826,919,48M16x1,5856,926102319242,31535 12.65 €
B0600.9410154steeltraffic red RAL 3020B53,467,826,919,410M20x1,51062,928122522302,81534 20.46 €
B0600.19105stainless steelblackB31,741,717,912,95M10x15391771513171,3512 14.36 €
B0600.19206stainless steelblackB31,641,717,912,96M12x1,56442081714191,8614 16.91 €
B0600.19308stainless steelblackB55,567,826,919,48M16x1,5856,926102319242,31535 23.08 €
B0600.19410stainless steelblackB53,467,826,919,410M20x1,51062,928122522302,81534 42.72 €
B0600.19105154stainless steeltraffic red RAL 3020B31,741,717,912,95M10x15391771513171,3512 14.36 €
B0600.19206154stainless steeltraffic red RAL 3020B31,641,717,912,96M12x1,56442081714191,8614 16.91 €
B0600.19308154stainless steeltraffic red RAL 3020B55,567,826,919,48M16x1,5856,926102319242,31535 23.08 €
B0600.19410154stainless steeltraffic red RAL 3020B53,467,826,919,410M20x1,51062,928122522302,81534 42.72 €
