DescriptionMaterial:Steel (German type from M12 malleable iron) or stainless steel A2.Version:Steel and malleable iron electro zinc-plated.

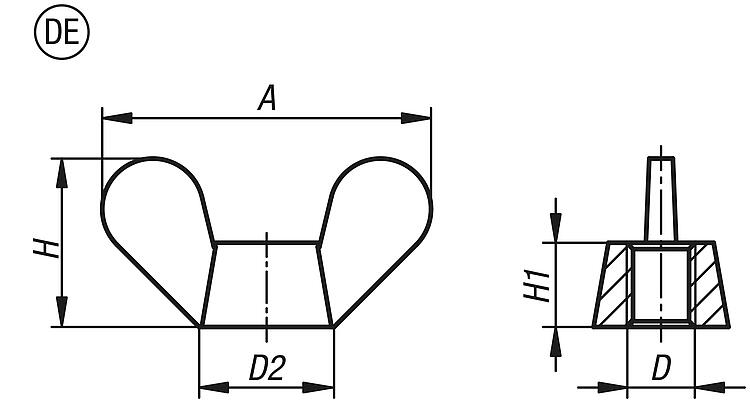

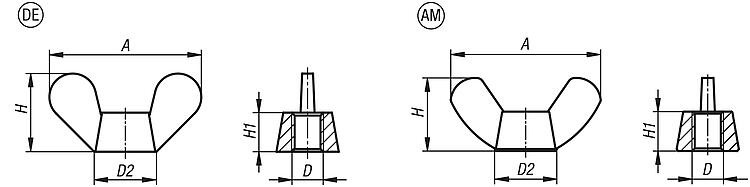

Stainless steel bright.Note:The wing nuts can be tightened and (generally) loosened tool-free.Drawing reference:DE = German style similar to DIN 315

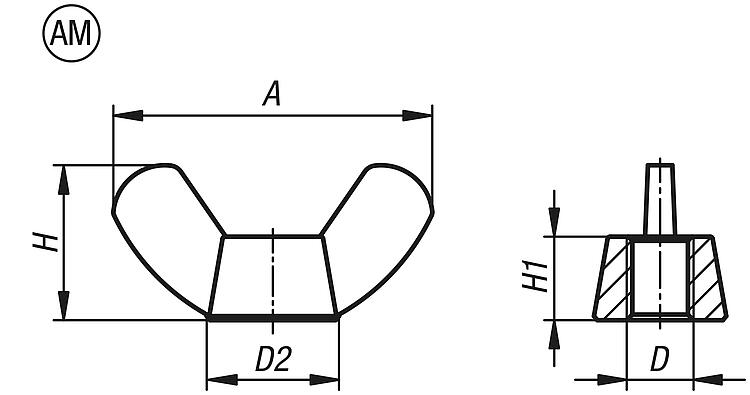

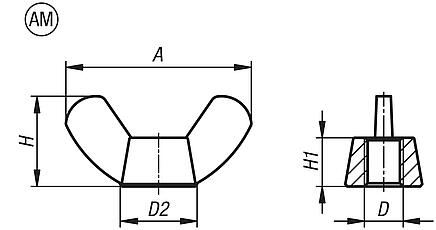

AM = US style DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Drawings (total overview) |
| Order No. | Form | Main
material | D | A
max. | D2
max. | H | H1 | CAD | Acc. | Price | Order |
|---|
| B0603.104 | DE | steel | M4 | 20 | 8 | 10,5 | 4,6 |  | | 0.90 € | | | B0603.105 | DE | steel | M5 | 26 | 11 | 13 | 6,5 | | | 0.94 € | | | B0603.106 | DE | steel | M6 | 33 | 13 | 17 | 8 | | | 1.16 € | | | B0603.108 | DE | steel | M8 | 39 | 16 | 20 | 10 | | | 1.46 € | | | B0603.110 | DE | steel | M10 | 51 | 20 | 25 | 12 | | | 2.96 € | | | B0603.112 | DE | malleable iron | M12 | 65 | 23 | 33,5 | 14 | | | 4.13 € | | | B0603.116 | DE | malleable iron | M16 | 73 | 29 | 37,5 | 17 | | | 6.31 € | | | B0603.120 | DE | malleable iron | M20 | 90 | 35 | 46,5 | 21 | | | 21.43 € | | | B0603.1104 | DE | stainless steel A2 | M4 | 20 | 8 | 10,5 | 4,6 | | | 1.68 € | | | B0603.1105 | DE | stainless steel A2 | M5 | 26 | 11 | 13 | 6,5 | | | 1.52 € | | | B0603.1106 | DE | stainless steel A2 | M6 | 33 | 13 | 17 | 8 | | | 1.63 € | | | B0603.1108 | DE | stainless steel A2 | M8 | 39 | 16 | 20 | 10 | | | 1.96 € | | | B0603.1110 | DE | stainless steel A2 | M10 | 51 | 20 | 25 | 12 | | | 2.71 € | | | B0603.1112 | DE | stainless steel A2 | M12 | 65 | 23 | 33,5 | 14 | | | 5.06 € | | | B0603.1116 | DE | stainless steel A2 | M16 | 73 | 29 | 37,5 | 17 | | | 7.26 € | | | B0603.1120 | DE | stainless steel A2 | M20 | 90 | 35 | 46,5 | 21 | | | 14.22 € | |
|
| Order No. | Form | Main
material | D | A
max. | D2
max. | H | H1 | CAD | Acc. | Price | Order |
|---|
| B0603.204 | AM | steel | M4 | 18,5 | 8 | 8,8 | 3 | | | 0.36 € | | | B0603.205 | AM | steel | M5 | 22 | 11 | 10,5 | 4 | | | 0.40 € | | | B0603.206 | AM | steel | M6 | 26,8 | 13 | 12,9 | 4,9 | | | 0.44 € | | | B0603.208 | AM | steel | M8 | 30,3 | 14 | 14,8 | 5,4 | | | 0.59 € | | | B0603.210 | AM | steel | M10 | 35,3 | 16,5 | 17,3 | 6,3 | | | 0.93 € | | | B0603.212 | AM | steel | M12 | 47,5 | 22,5 | 22,5 | 7,9 | | | 1.96 € | | | B0603.1204 | AM | stainless steel A2 | M4 | 18,5 | 8 | 8,8 | 3 | | | 0.44 € | | | B0603.1205 | AM | stainless steel A2 | M5 | 22 | 11 | 10,5 | 4 | | | 0.48 € | | | B0603.1206 | AM | stainless steel A2 | M6 | 26,8 | 13 | 12,9 | 4,9 | | | 0.70 € | | | B0603.1208 | AM | stainless steel A2 | M8 | 30,3 | 14 | 14,8 | 5,4 | | | 0.87 € | | | B0603.1210 | AM | stainless steel A2 | M10 | 35,3 | 16,5 | 17,3 | 6,3 | | | 1.76 € | | | B0603.1212 | AM | stainless steel A2 | M12 | 47,5 | 22,5 | 22,5 | 7,9 | | | 3.50 € | |
|
