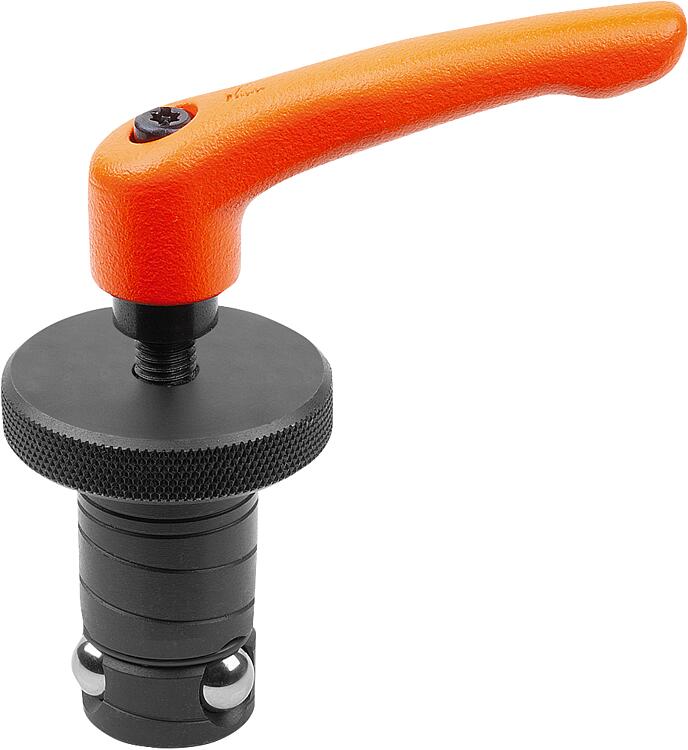

B0207Locating cylinders Ball Lock, steel with clamping lever |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Locating cylinder QT steel
Balls roller bearing steel.
Grip die-cast zinc acc. to DIN EN 12844.
Steel parts grade 5.8.Version:Locating cylinder tempered, black oxidised
Balls hardened, bright
Grip plastic coated pure orange RAL 2004 .
Steel parts black oxidised.Note:When the clamping lever is tightened, the centre ball moves downwards forcing the three securing balls outwards where they clamp in the locating bush.
Machine set-up times are up to twelve times shorter using this easy-to-operate system than with conventional methods.Assembly:1. Unscrew the threaded pin from the locating cylinder.
2. Screw the clamping lever on.Advantages:Tool-free clampingAccessory:B0208 repair kit
B0212 centring bush.
B0214 locating bushes Form A (pressed in at rear).
B0217 locating bushes Form B (screwed-on from the front).Supplied withB0207 locating cylinder Ball Lock.
B0231 clamping lever die-cast zinc with external thread. DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

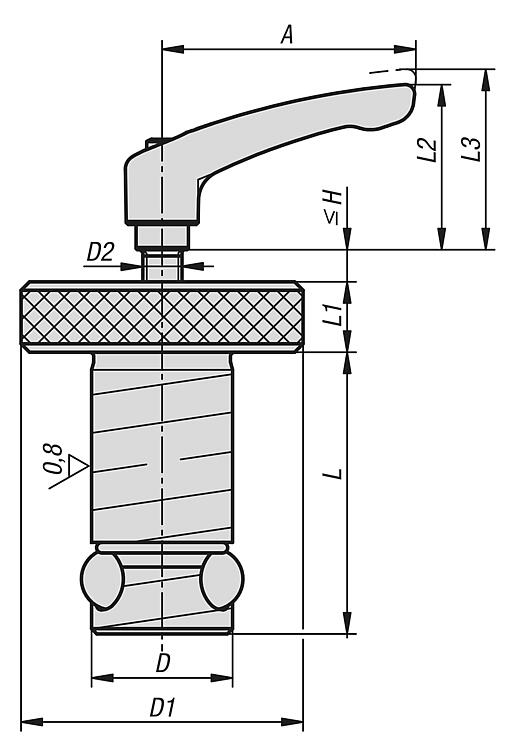

| Order No. | A | D | D1 | D2 | Holding
force
F kN | H
max.
| L | L1 | L2 | L3 | Tightening
torque
max. Nm | Grid plate
thickness ±0,05 | CAD | Acc. | Price | Order |
|---|
| B0207.130132 | 30 | 13 | 22 | M5 | 3,3 | 25 | 27,6 | 6 | 30 | 33 | 1 | 13 |  | | 95.70 € | | | B0207.130202 | 30 | 13 | 22 | M5 | 3,3 | 35 | 34,6 | 6 | 30 | 33 | 1 | 20 | | | 100.86 € | | | B0207.160202 | 40 | 16 | 32 | M6 | 5,3 | 35 | 36,5 | 8 | 31 | 34 | 3 | 20 | | | 96.13 € | | | B0207.160252 | 40 | 16 | 32 | M6 | 5,3 | 40 | 41,5 | 8 | 31 | 34 | 3 | 25 | | | 98.17 € | | | B0207.200202 | 40 | 20 | 40 | M6 | 13,3 | 35 | 39,5 | 10 | 31 | 34 | 4 | 20 | | | 96.13 € | | | B0207.200252 | 40 | 20 | 40 | M6 | 13,3 | 40 | 44,5 | 10 | 31 | 34 | 4 | 25 | | | 100.86 € | | | B0207.250202 | 65 | 25 | 45 | M8 | 30 | 40 | 44 | 10 | 42,5 | 45,5 | 9 | 20 | | | 103.58 € | | | B0207.250252 | 65 | 25 | 45 | M8 | 30 | 45 | 49 | 10 | 42,5 | 45,5 | 9 | 25 | | | 105.93 € | | | B0207.300202 | 80 | 30 | 50 | M10 | 44 | 45 | 49 | 13 | 54,5 | 58,5 | 15 | 20 | | | 116.03 € | | | B0207.300252 | 80 | 30 | 50 | M10 | 44 | 50 | 54 | 13 | 54,5 | 58,5 | 15 | 25 | | | 122.37 € | | | B0207.350202 | 95 | 35 | 60 | M12 | 68 | 50 | 51 | 13 | 63 | 67,5 | 25 | 20 | | | 117.86 € | | | B0207.350252 | 95 | 35 | 60 | M12 | 68 | 50 | 56 | 13 | 63 | 67,5 | 25 | 25 | | | 123.47 € | |
