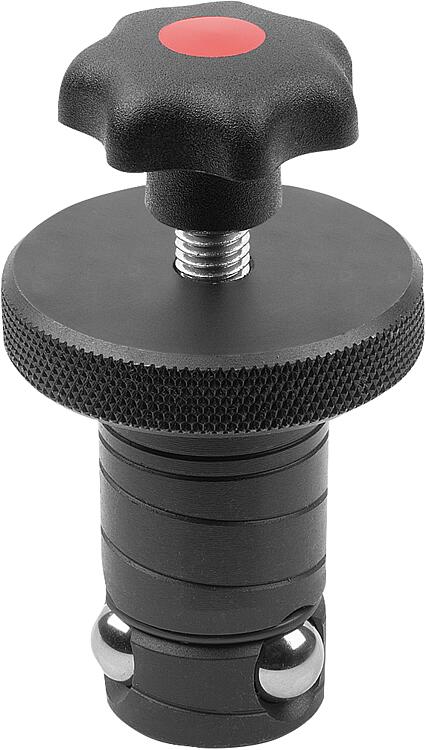

B0207Locating cylinders Ball Lock, steel with star grip |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Locating cylinder QT steel
Balls roller bearing steel.
Star grip thermoplastic.
Screw, steel.Version:Locating cylinder tempered, black oxidised
Balls hardened, bright
Star grip black with red cap.
Screw trivalent blue passivated.Note:When the star grip is tightened, the center ball is pushed down, forcing the three securing balls outwards, where they clamp in the locating bush.
Machine set-up times are up to twelve times shorter using this easy-to-operate system than with conventional methods.Assembly:1. Unscrew the threaded pin from the locating cylinder.
2. Screw the star grip on.Advantages:Tool-free clampingAccessory:B0208 repair kit
B0212 centring bush.
B0214 locating bushes Form A (pressed in at rear).
B0217 locating bushes Form B (screwed-on from the front).Supplied withB0207 locating cylinder Ball Lock.
B0288 star grip similar to DIN 6336. DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

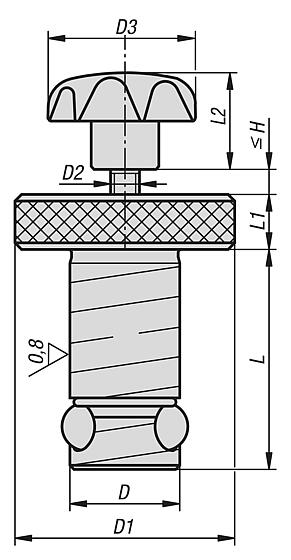

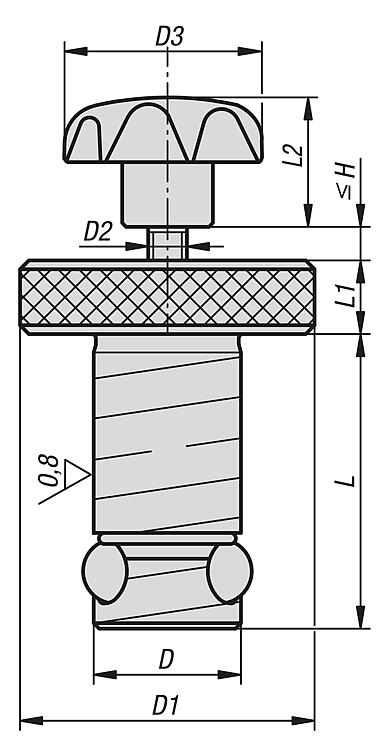

| Order No. | D | D1 | D2 | D3 | Holding
force
F kN | H
max.
| L | L1 | L2 | Tightening
torque
max. Nm | Grid plate
thickness ±0,05 | CAD | Acc. | Price | Order |
|---|
| B0207.130131 | 13 | 22 | M5 | 25 | 3,3 | 25 | 27,6 | 6 | 16 | 1 | 13 |  | | 91.42 € | | | B0207.130201 | 13 | 22 | M5 | 25 | 3,3 | 35 | 34,6 | 6 | 16 | 1 | 20 | | | 96.19 € | | | B0207.160201 | 16 | 32 | M6 | 25 | 5,3 | 35 | 36,5 | 8 | 16 | 3 | 20 | | | 91.46 € | | | B0207.160251 | 16 | 32 | M6 | 25 | 5,3 | 40 | 41,5 | 8 | 16 | 3 | 25 | | | 93.51 € | | | B0207.200201 | 20 | 40 | M6 | 25 | 13,3 | 35 | 39,5 | 10 | 16 | 4 | 20 | | | 91.46 € | | | B0207.200251 | 20 | 40 | M6 | 25 | 13,3 | 40 | 44,5 | 10 | 16 | 4 | 25 | | | 96.20 € | | | B0207.250201 | 25 | 45 | M8 | 32 | 30 | 40 | 44 | 10 | 20 | 9 | 20 | | | 97.77 € | | | B0207.250251 | 25 | 45 | M8 | 32 | 30 | 45 | 49 | 10 | 20 | 9 | 25 | | | 100.14 € | | | B0207.300201 | 30 | 50 | M10 | 40 | 44 | 45 | 49 | 13 | 25 | 15 | 20 | | | 109.95 € | | | B0207.300251 | 30 | 50 | M10 | 40 | 44 | 50 | 54 | 13 | 25 | 15 | 25 | | | 116.30 € | | | B0207.350201 | 35 | 60 | M12 | 50 | 68 | 50 | 51 | 13 | 32 | 25 | 20 | | | 111.45 € | | | B0207.350251 | 35 | 60 | M12 | 50 | 68 | 50 | 56 | 13 | 32 | 25 | 25 | | | 117.06 € | |
