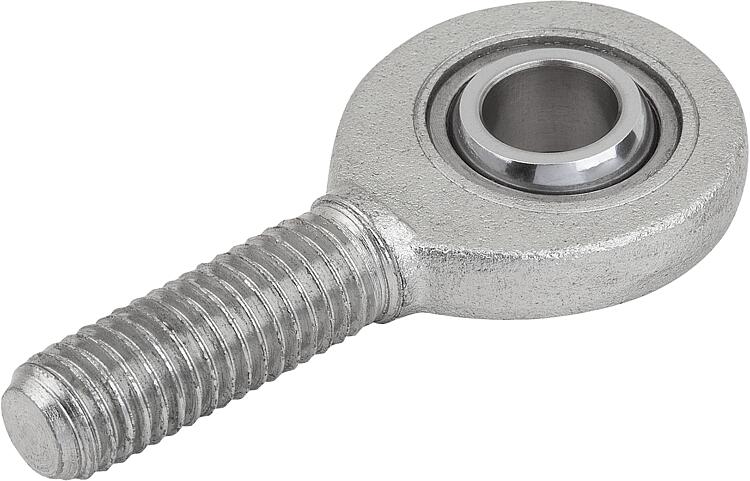

B0553Rod ends with plain bearing, external thread, narrow head, DIN... |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Housing size (D) 6-12 turned steel.
From size (D) 17 forged steel.
Ball joint ball bearing steel, hardened, ground, polished and hard chromed.
Bearing shell ball bearing steel with PTFE weave glued in.Version:Electro zinc-plated.Note:The rod end bearing is maintenance-free. The connection dimensions comply with DIN 648 Form Series E.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Version 2 | Main
material | A | B

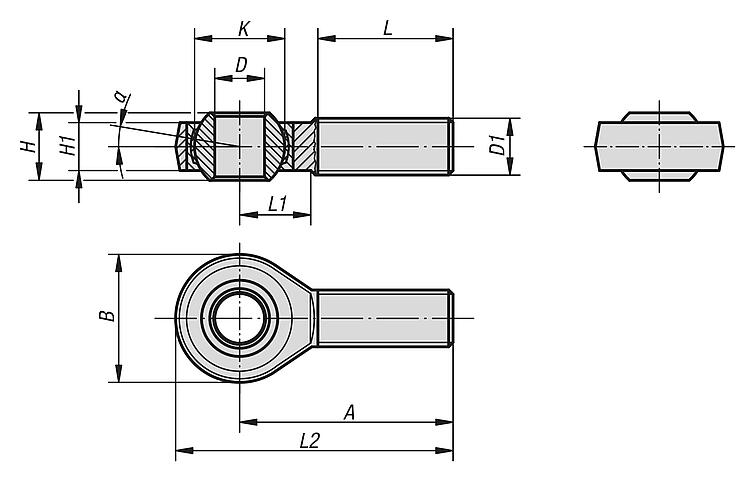

| D | D1 | H | H1 | K | L | L1 | L2 | α | Dynamic
base loads
kN | Static
base loads
kN | CAD | Acc. | Price | Order |
|---|
| B0553.06 | RH thread | steel | 36 | 21 | 6 | M6x1,0 | 6 | 4,4 | 10 | 18 | 12 | 46,5 | 13 | 3,6 | 8,15 |  | | 9.00 € | | | B0553.08 | RH thread | steel | 42 | 24 | 8 | M8x1,25 | 8 | 6 | 13 | 22 | 14 | 54 | 15 | 5,85 | 12,9 | | | 9.63 € | | | B0553.10 | RH thread | steel | 48 | 29 | 10 | M10x1,5 | 9 | 7 | 16 | 26 | 15 | 62,5 | 12 | 8,65 | 17,6 | | | 10.21 € | | | B0553.12 | RH thread | steel | 54 | 34 | 12 | M12x1,75 | 10 | 8 | 18 | 28 | 18 | 71 | 11 | 11,4 | 24,5 | | | 11.40 € | | | B0553.17 | RH thread | QT steel | 69 | 46 | 17 | M16x2,0 | 14 | 11 | 25 | 36 | 23 | 92 | 10 | 22,4 | 45 | | | 16.79 € | | | B0553.20 | RH thread | QT steel | 78 | 53 | 20 | M20x1,5 | 16 | 13 | 29 | 43 | 27 | 104,5 | 9 | 31,5 | 60 | | | 26.41 € | | | B0553.25 | RH thread | QT steel | 94 | 64 | 25 | M24x2,0 | 20 | 17 | 35,5 | 53 | 32 | 126 | 7 | 51 | 83 | | | 35.06 € | | | B0553.30 | RH thread | QT steel | 110 | 73 | 30 | M30x2,0 | 22 | 19 | 40,7 | 65 | 37 | 146,5 | 6 | 66,5 | 110 | | | 48.16 € | | | B0553.061 | LH thread | steel | 36 | 21 | 6 | M6x1,0 | 6 | 4,4 | 10 | 18 | 12 | 46,5 | 13 | 3,6 | 8,15 | | | 9.00 € | | | B0553.081 | LH thread | steel | 42 | 24 | 8 | M8x1,25 | 8 | 6 | 13 | 22 | 14 | 54 | 15 | 5,85 | 12,9 | | | 9.63 € | | | B0553.101 | LH thread | steel | 48 | 29 | 10 | M10x1,5 | 9 | 7 | 16 | 26 | 15 | 62,5 | 12 | 8,65 | 17,6 | | | 10.21 € | | | B0553.121 | LH thread | steel | 54 | 34 | 12 | M12x1,75 | 10 | 8 | 18 | 28 | 18 | 71 | 11 | 11,4 | 24,5 | | | 11.40 € | | | B0553.171 | LH thread | QT steel | 69 | 46 | 17 | M16x2,0 | 14 | 11 | 25 | 36 | 23 | 92 | 10 | 22,4 | 45 | | | 16.79 € | | | B0553.201 | LH thread | QT steel | 78 | 53 | 20 | M20x1,5 | 16 | 13 | 29 | 43 | 27 | 104,5 | 9 | 31,5 | 60 | | | 26.41 € | | | B0553.251 | LH thread | QT steel | 94 | 64 | 25 | M24x2,0 | 20 | 17 | 35,5 | 53 | 32 | 126 | 7 | 51 | 83 | | | 35.06 € | | | B0553.301 | LH thread | QT steel | 110 | 73 | 30 | M30x2,0 | 22 | 19 | 40,7 | 65 | 37 | 146,5 | 6 | 66,5 | 110 | | | 48.16 € | |
