B0555Rod ends with plain bearing, external thread, steel, DIN ISO... |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Housing size (D) 5-12 turned free-cutting steel.
From size (D) 14 forged QT steel, with grease nipple.
Ball joint: roller bearing steel, hardened, ground and polished.
Bearing shell bronze.Version:Electro zinc-plated.Note:The plain bearings on these rod ends can be re-lubricated. The connection dimensions comply with DIN 648 Form Series KA. DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

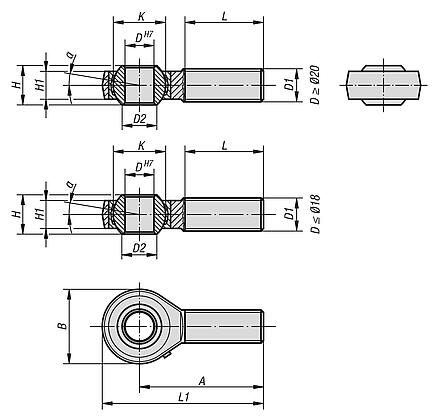

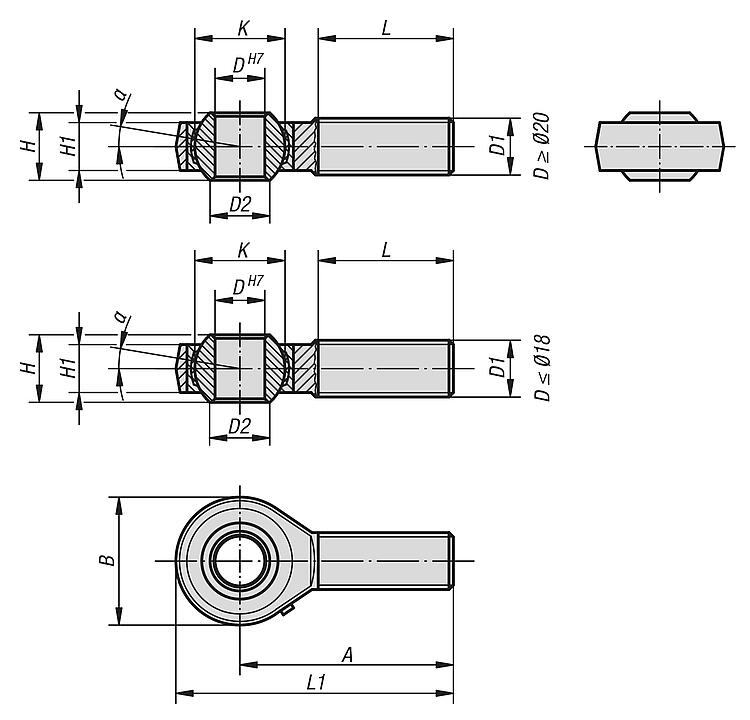

| Order No. | Version 2 | Main
material | A | B
| D | D1=Thread | D2 | H | H1 | K | L | L1 | α | Dynamic
base loads
kN | Static
base loads
kN | CAD | Acc. | Price | Order |
|---|
| B0555.05 | RH thread | steel | 33 | 16 | 5 | M5x0,8 | 7,7 | 8 | 6 | 11,11 | 20 | 41 | 13 | 3,25 | 5,7 |  | | 6.94 € | | | B0555.06 | RH thread | steel | 36 | 18 | 6 | M6x1,0 | 8,96 | 9 | 6,75 | 12,7 | 22 | 45 | 13 | 4,3 | 7,2 | | | 7.09 € | | | B0555.08 | RH thread | steel | 42 | 22 | 8 | M8x1,25 | 10,4 | 12 | 9 | 15,875 | 25 | 53 | 14 | 7,2 | 11,6 | | | 7.58 € | | | B0555.10 | RH thread | steel | 48 | 26 | 10 | M10x1,5 | 12,9 | 14 | 10,5 | 19,05 | 29 | 61 | 13 | 10 | 14,5 | | | 9.28 € | | | B0555.12 | RH thread | steel | 54 | 30 | 12 | M12x1,75 | 15,4 | 16 | 12 | 22,225 | 33 | 69 | 13 | 13,4 | 17 | | | 11.47 € | | | B0555.14 | RH thread | QT steel | 60 | 34 | 14 | M14x2,0 | 16,9 | 19 | 13,5 | 25,4 | 36 | 77 | 16 | 17 | 24 | | | 14.38 € | | | B0555.16 | RH thread | QT steel | 66 | 40 | 16 | M16x2,0 | 19,4 | 21 | 15 | 28,575 | 40 | 86 | 15 | 21,6 | 28,5 | | | 18.55 € | | | B0555.18 | RH thread | QT steel | 72 | 44 | 18 | M18x1,5 | 21,9 | 23 | 16,5 | 31,75 | 44 | 94 | 15 | 26 | 42,5 | | | 25.36 € | | | B0555.20 | RH thread | QT steel | 78 | 50 | 20 | M20x1,5 | 24,4 | 25 | 18 | 34,925 | 47 | 103 | 14 | 31,5 | 52,5 | | | 28.56 € | | | B0555.22 | RH thread | QT steel | 84 | 54 | 22 | M22x1,5 | 25,8 | 28 | 20 | 38,10 | 51 | 11 | 15 | 38 | 57 | | | 36.45 € | | | B0555.25 | RH thread | QT steel | 94 | 60 | 25 | M24x2,0 | 29,6 | 31 | 22 | 42,86 | 57 | 124 | 15 | 47,5 | 68 | | | 43.23 € | | | B0555.30 | RH thread | QT steel | 110 | 70 | 30 | M30x2,0 | 34,8 | 37 | 25 | 50,8 | 66 | 145 | 17 | 64 | 88 | | | 59.10 € | | | B0555.051 | LH thread | steel | 33 | 16 | 5 | M5x0,8 | 7,7 | 8 | 6 | 11,11 | 20 | 41 | 13 | 3,25 | 5,7 | | | 6.94 € | | | B0555.061 | LH thread | steel | 36 | 18 | 6 | M6x1,0 | 8,96 | 9 | 6,75 | 12,7 | 22 | 45 | 13 | 4,3 | 7,2 | | | 7.09 € | | | B0555.081 | LH thread | steel | 42 | 22 | 8 | M8x1,25 | 10,4 | 12 | 9 | 15,875 | 25 | 53 | 14 | 7,2 | 11,6 | | | 7.58 € | | | B0555.101 | LH thread | steel | 48 | 26 | 10 | M10x1,5 | 12,9 | 14 | 10,5 | 19,05 | 29 | 61 | 13 | 10 | 14,5 | | | 9.28 € | | | B0555.121 | LH thread | steel | 54 | 30 | 12 | M12x1,75 | 15,4 | 16 | 12 | 22,225 | 33 | 69 | 13 | 13,4 | 17 | | | 11.47 € | | | B0555.141 | LH thread | QT steel | 60 | 34 | 14 | M14x2,0 | 16,9 | 19 | 13,5 | 25,4 | 36 | 77 | 16 | 17 | 24 | | | 14.38 € | | | B0555.161 | LH thread | QT steel | 66 | 40 | 16 | M16x2,0 | 19,4 | 21 | 15 | 28,575 | 40 | 86 | 15 | 21,6 | 28,5 | | | 18.55 € | | | B0555.181 | LH thread | QT steel | 72 | 44 | 18 | M18x1,5 | 21,9 | 23 | 16,5 | 31,75 | 44 | 94 | 15 | 26 | 42,5 | | | 25.36 € | | | B0555.201 | LH thread | QT steel | 78 | 50 | 20 | M20x1,5 | 24,4 | 25 | 18 | 34,925 | 47 | 103 | 14 | 31,5 | 52,5 | | | 28.56 € | | | B0555.221 | LH thread | QT steel | 84 | 54 | 22 | M22x1,5 | 25,8 | 28 | 20 | 38,10 | 51 | 11 | 15 | 38 | 57 | | | 36.45 € | | | B0555.251 | LH thread | QT steel | 94 | 60 | 25 | M24x2,0 | 29,6 | 31 | 22 | 42,86 | 57 | 124 | 15 | 47,5 | 68 | | | 43.23 € | | | B0555.301 | LH thread | QT steel | 110 | 70 | 30 | M30x2,0 | 34,8 | 37 | 25 | 50,8 | 66 | 145 | 17 | 64 | 88 | | | 59.10 € | |
