Rod ends with plain bearing, internal thread, steel, DIN ISO 12240-1 can be re-lubricated
 B0556

Rod ends with plain bearing, internal thread, steel, DIN ISO...

 go back

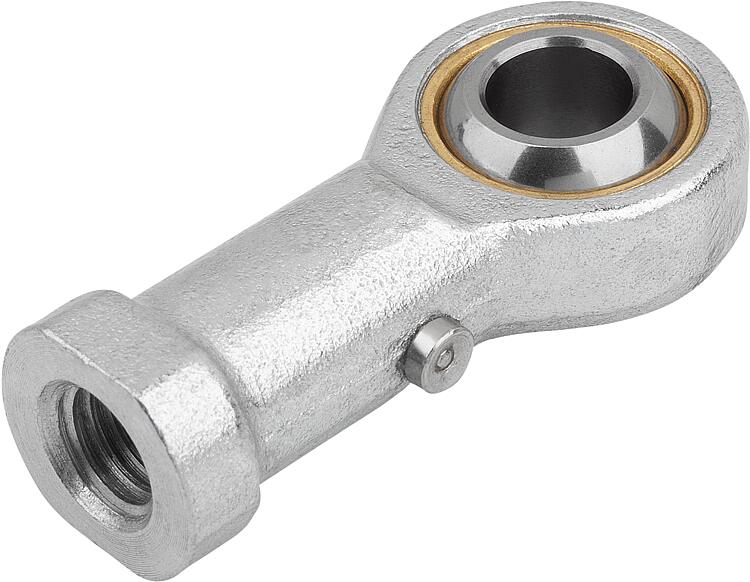

Item description/product images
DescriptionMaterial:Housing size (D) 5-12 turned free-cutting steel.
From size (D) 14 forged QT steel, with grease nipple.
Ball joint: roller bearing steel, hardened, ground and polished.
Bearing shell bronze.Version:Electro zinc-plated.Note:The plain bearings on these rod ends can be re-lubricated. The connection dimensions comply with DIN 648 Form Series KJ.
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
Datasheet B0556 Rod ends with plain bearing, internal thread, steel, DIN ISO 12240-1 can be re-lubricated 276 kB

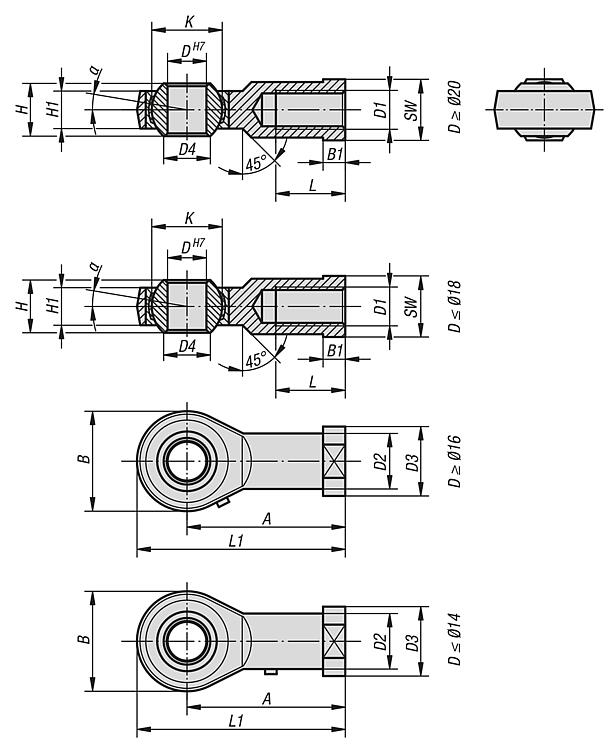

Drawings

Rod ends with plain bearing, internal thread, steel, DIN ISO 12240-1 can be re-lubricated

Item selection/filter
Order No.Version 2Main
material		AB

B1DD1D2D3D4HH1KLL1αSWDynamic
base loads
kN		Static
base loads
kN		CADAcc.PriceOrder
B0556.05RH threadsteel271645M5x0,88,5117,78611,1110351393,255,7 6.94 €
B0556.06RH threadsteel301856M6x1,010138,9696,7512,7123913114,37,2 7.09 €
B0556.08RH threadsteel362258M8x1,2512,51610,412915,875164714147,211,6 7.58 €
B0556.10RH threadsteel43266,510M10x1,5151912,91410,519,05205613171014,5 9.28 €
B0556.12RH threadsteel50306,512M12x1,7517,52215,4161222,2252265131913,417 11.47 €
B0556.14RH threadQT steel5734814M14x2,0202516,91913,525,4257416221724 14.38 €
B0556.16RH threadQT steel6440816M16x2,0222719,4211528,5752884152221,628,5 18.55 €
B0556.18RH threadQT steel71441018M18x1,5253121,92316,531,75329315272642,5 25.36 €
B0556.20RH threadQT steel77501020M20x1,527,53424,4251834,92533102143031,542,5 28.56 €
B0556.22RH threadQT steel84541222M22x1,5303825,8282038,13711115323857 32.40 €
B0556.25RH threadQT steel94601225M24x2,033,54229,6312242,8642124153647,568 43.23 €
B0556.30RH threadQT steel110701530M30x2,0405034,8372550,85114517416488 63.31 €
B0556.051LH threadsteel271645M5x0,88,5117,78611,1110351393,255,7 6.94 €
B0556.061LH threadsteel301856M6x1,010138,9696,7512,7123913114,37,2 7.09 €
B0556.081LH threadsteel362258M8x1,2512,51610,412915,875164714147,211,6 7.58 €
B0556.101LH threadsteel43266,510M10x1,5151912,91410,519,05205613171014,5 9.28 €
B0556.121LH threadsteel50306,512M12x1,7517,52215,4161222,2252265131913,417 11.47 €
B0556.141LH threadQT steel5734814M14x2,0202516,91913,525,4257416221724 14.38 €
B0556.161LH threadQT steel6440816M16x2,0222719,4211528,5752884152221,628,5 18.55 €
B0556.181LH threadQT steel71441018M18x1,5253121,92316,531,75329315272642,5 25.36 €
B0556.201LH threadQT steel77501020M20x1,527,53424,4251834,92533102143031,542,5 28.56 €
B0556.221LH threadQT steel84541222M22x1,5303825,8282038,13711115323857 36.45 €
B0556.251LH threadQT steel94601225M24x2,033,54229,6312242,8642124153647,568 43.23 €
B0556.301LH threadQT steel110701530M30x2,0405034,8372550,85114517416488 63.31 €
