B0550Rod ends with plain bearing, internal thread, steel, DIN ISO... |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Housing size (D) 5-12 turned free-cutting steel.
From size (D) 16 forged QT steel.
Ball joint: roller bearing steel, hardened, ground and polished.
Bearing shell bronze, with glued-in PTFE fabricVersion:Electro zinc-plated.Note:The rod end bearing is maintenance-free. The connection dimensions comply with DIN 648 series KJ.Special features: DownloadHere is all the information as a PDF datasheet:

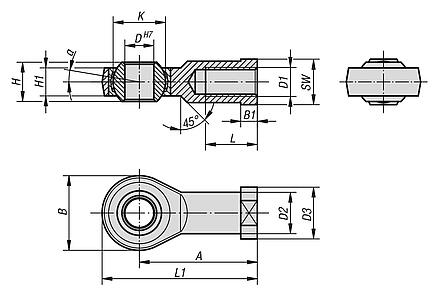

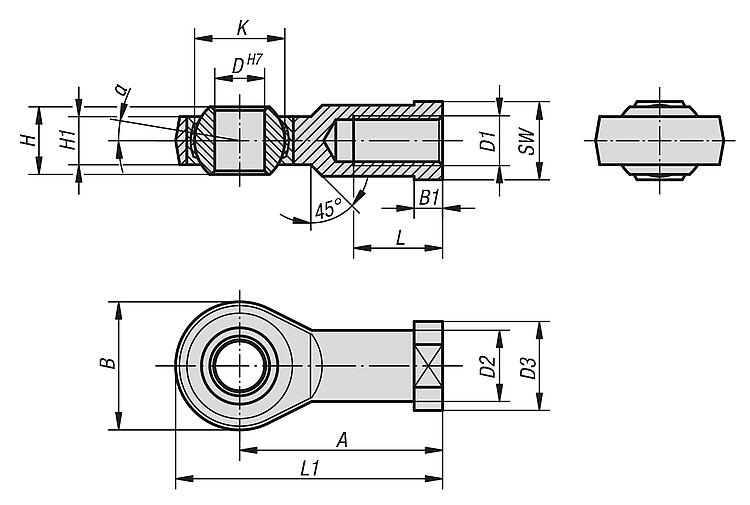

Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Version 2 | Main
material | A | B
| B1 | D | D1 | D2 | D3 | H | H1 | K | L | L1 | α | SW | Dynamic
base loads
kN | Static
base loads
kN | CAD | Acc. | Price | Order |
|---|
| B0550.05 | RH thread | steel | 27 | 18 | 4 | 5 | M5x0,8 | 8,5 | 11 | 8 | 6 | 11,11 | 10 | 36 | 13 | 9 | 5,7 | 6 |  | | 8.65 € | | | B0550.06 | RH thread | steel | 30 | 20 | 5 | 6 | M6x1,0 | 10 | 13 | 9 | 6,75 | 12,7 | 12 | 40 | 13 | 11 | 7,2 | 7,65 | | | 8.65 € | | | B0550.08 | RH thread | steel | 36 | 24 | 5 | 8 | M8x1,25 | 12,5 | 16 | 12 | 9 | 15,875 | 16 | 48 | 14 | 14 | 11,6 | 12,9 | | | 9.63 € | | | B0550.10 | RH thread | steel | 43 | 28 | 6,5 | 10 | M10x1,5 | 15 | 19 | 14 | 10,5 | 19,05 | 20 | 57 | 13 | 17 | 14,5 | 18 | | | 11.40 € | | | B0550.10125 | RH thread | steel | 43 | 28 | 6,5 | 10 | M10x1,25 | 15 | 19 | 14 | 10,5 | 19,05 | 20 | 57 | 13 | 17 | 14,5 | 18 | | | 13.26 € | | | B0550.12 | RH thread | steel | 50 | 32 | 6,5 | 12 | M12x1,75 | 17,5 | 22 | 16 | 12 | 22,225 | 22 | 66 | 13 | 19 | 17 | 24 | | | 14.43 € | | | B0550.12125 | RH thread | steel | 50 | 32 | 6,5 | 12 | M12x1,25 | 17,5 | 22 | 16 | 12 | 22,225 | 22 | 66 | 13 | 19 | 17 | 24 | | | 14.43 € | | | B0550.16 | RH thread | QT steel | 64 | 42 | 8 | 16 | M16x2,0 | 22 | 27 | 21 | 15 | 28,575 | 28 | 85 | 15 | 22 | 28,5 | 39 | | | 17.99 € | | | B0550.1615 | RH thread | QT steel | 64 | 42 | 8 | 16 | M16x1,5 | 22 | 27 | 21 | 15 | 28,575 | 28 | 85 | 15 | 22 | 28,5 | 39 | | | 17.99 € | | | B0550.20 | RH thread | QT steel | 77 | 50 | 10 | 20 | M20x1,5 | 27,5 | 34 | 25 | 18 | 34,925 | 33 | 102 | 14 | 30 | 42,5 | 57 | | | 30.03 € | | | B0550.22 | RH thread | QT steel | 84 | 54 | 12 | 22 | M22x1,5 | 30 | 38 | 28 | 20 | 38,10 | 37 | 11 | 15 | 32 | 57 | 68 | | | 40.39 € | | | B0550.25 | RH thread | QT steel | 91 | 60 | 12 | 25 | M24x2,0 | 33,5 | 42 | 31 | 22 | 42,86 | 42 | 124 | 15 | 36 | 68 | 85 | | | 50.20 € | | | B0550.30 | RH thread | QT steel | 110 | 70 | 15 | 30 | M30x2,0 | 40 | 50 | 37 | 25 | 50,8 | 51 | 145 | 17 | 41 | 88 | 114 | | | 62.12 € | | | B0550.35 | RH thread | QT steel | 125 | 81 | 17 | 35 | M36x2,0 | 46 | 58 | 43 | 28 | 57,15 | 56 | 165,5 | 16 | 50 | 106 | 142 | | | 86.93 € | | | B0550.40 | RH thread | QT steel | 142 | 91 | 19 | 40 | M42x2,0 | 53 | 65 | 49 | 33 | 66,67 | 60 | 187,5 | 16 | 55 | 125 | 171 | | | 118.48 € | | | B0550.051 | LH thread | steel | 27 | 18 | 4 | 5 | M5x0,8 | 8,5 | 11 | 8 | 6 | 11,11 | 10 | 36 | 13 | 9 | 5,7 | 6 | | | 8.65 € | | | B0550.061 | LH thread | steel | 30 | 20 | 5 | 6 | M6x1,0 | 10 | 13 | 9 | 6,75 | 12,7 | 12 | 40 | 13 | 11 | 7,2 | 7,65 | | | 8.65 € | | | B0550.081 | LH thread | steel | 36 | 24 | 5 | 8 | M8x1,25 | 12,5 | 16 | 12 | 9 | 15,875 | 16 | 48 | 14 | 14 | 11,6 | 12,9 | | | 9.63 € | | | B0550.101 | LH thread | steel | 43 | 28 | 6,5 | 10 | M10x1,5 | 15 | 19 | 14 | 10,5 | 19,05 | 20 | 57 | 13 | 17 | 14,5 | 18 | | | 11.40 € | | | B0550.101251 | LH thread | steel | 43 | 28 | 6,5 | 10 | M10x1,25 | 15 | 19 | 14 | 10,5 | 19,05 | 20 | 57 | 13 | 17 | 14,5 | 18 | | | 13.26 € | | | B0550.121 | LH thread | steel | 50 | 32 | 6,5 | 12 | M12x1,75 | 17,5 | 22 | 16 | 12 | 22,225 | 22 | 66 | 13 | 19 | 17 | 24 | | | 14.43 € | | | B0550.121251 | LH thread | steel | 50 | 32 | 6,5 | 12 | M12x1,25 | 17,5 | 22 | 16 | 12 | 22,225 | 22 | 66 | 13 | 19 | 17 | 24 | | | 14.43 € | | | B0550.161 | LH thread | QT steel | 64 | 42 | 8 | 16 | M16x2,0 | 22 | 27 | 21 | 15 | 28,575 | 28 | 85 | 15 | 22 | 28,5 | 39 | | | 17.99 € | | | B0550.16151 | LH thread | QT steel | 64 | 42 | 8 | 16 | M16x1,5 | 22 | 27 | 21 | 15 | 28,575 | 28 | 85 | 15 | 22 | 28,5 | 39 | | | 17.99 € | | | B0550.201 | LH thread | QT steel | 77 | 50 | 10 | 20 | M20x1,5 | 27,5 | 34 | 25 | 18 | 34,925 | 33 | 102 | 14 | 30 | 42,5 | 57 | | | 30.03 € | | | B0550.221 | LH thread | QT steel | 84 | 54 | 12 | 22 | M22x1,5 | 30 | 38 | 28 | 20 | 38,10 | 37 | 11 | 15 | 32 | 57 | 68 | | | 40.39 € | | | B0550.251 | LH thread | QT steel | 91 | 60 | 12 | 25 | M24x2,0 | 33,5 | 42 | 31 | 22 | 42,86 | 42 | 124 | 15 | 36 | 68 | 85 | | | 50.20 € | | | B0550.301 | LH thread | QT steel | 110 | 70 | 15 | 30 | M30x2,0 | 40 | 50 | 37 | 25 | 50,8 | 51 | 145 | 17 | 41 | 88 | 114 | | | 62.12 € | | | B0550.351 | LH thread | QT steel | 125 | 81 | 17 | 35 | M36x2,0 | 46 | 58 | 43 | 28 | 57,15 | 56 | 165,5 | 16 | 50 | 106 | 142 | | | 86.93 € | | | B0550.401 | LH thread | QT steel | 142 | 91 | 19 | 40 | M42x2,0 | 53 | 65 | 49 | 33 | 66,67 | 60 | 187,5 | 16 | 55 | 125 | 171 | | | 118.48 € | |
