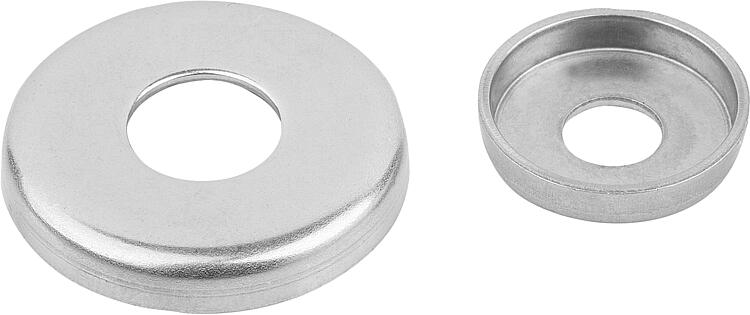

B0570Stainless steel washer for cam lever |
go back |
|
Item description/product images |
|
|

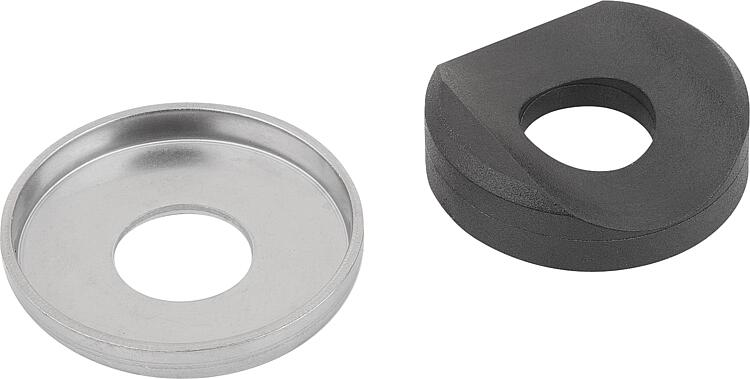

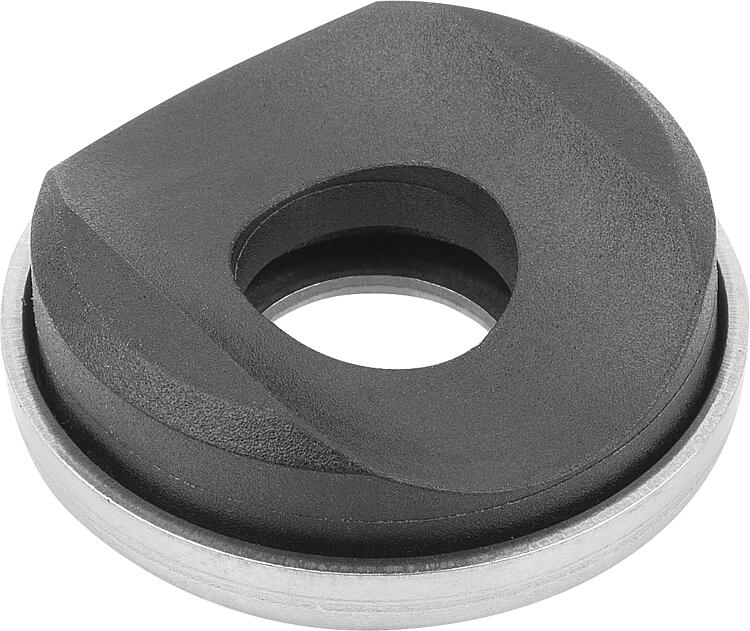

DescriptionProduct description:The washer can be fitted between the thrust washer and the contact face.Material:Stainless steel 1.4305. Version:Bright.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

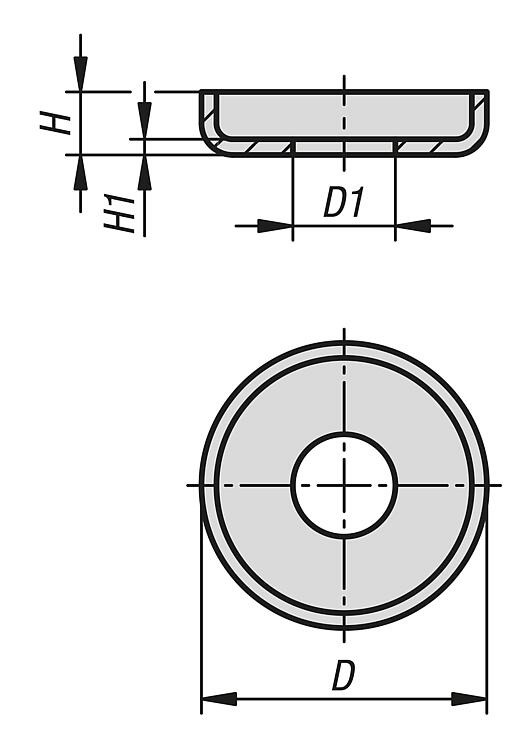

| Order No. | Size | D
| D1 | H | H1 | CAD | Acc. | Price | Order |
|---|
| B0570.112 | 9 | 12 | 4,3 | 2,2 | 0,5 | | | 0.26 € | | | B0570.115 | 0 | 15,4 | 5,3 | 3,2 | 0,7 | | | 0.31 € | | | B0570.118 | 1 | 18,1 | 6,5 | 4 | 1 | | | 0.31 € | | | B0570.127 | 2 | 27,1 | 10,2 | 4 | 1 | | | 0.36 € | |
