B0309

Spherical knobs with internal thread

go back

Products
- Product overview
  - Handles and knobs
    - Ball knobs, spherical knobs
      - Spherical knobs

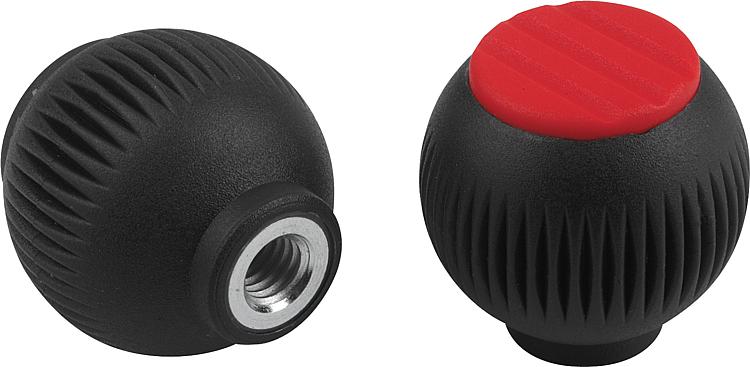

        Spherical knobs with internal thread

Item description/product images

DescriptionMaterial:

Black thermoplastic.
Bush grade 5.8 steel or 1.4305 stainless steel.

Version:Steel trivalent blue passivated, stainless steel bright.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet B0309 Spherical knobs with internal thread

254 kB

Drawings

Item selection/filter

Order No.	Component material	Colour Cap	D	D1	D2	D3	H	H1	H2	T	Price
B0309.106	steel	black grey RAL 7021	M6	25	12	17	25	3	2	10	3.00 €
B0309.1061	steel	orange RAL 2004	M6	25	12	17	25	3	2	10	3.00 €
B0309.1062	steel	signal green RAL6032	M6	25	12	17	25	3	2	10	3.00 €
B0309.1063	steel	blue RAL5017	M6	25	12	17	25	3	2	10	3.00 €
B0309.1065	steel	light grey RAL 7035	M6	25	12	17	25	3	2	10	3.00 €
B0309.1066	steel	traffic red RAL 3020	M6	25	12	17	25	3	2	10	3.00 €
B0309.1067	steel	colza yellow RAL 1021	M6	25	12	17	25	3	2	10	3.00 €
B0309.208	steel	black grey RAL 7021	M8	32	15,5	19	33	3,5	2,6	14	3.39 €
B0309.2081	steel	orange RAL 2004	M8	32	15,5	19	33	3,5	2,6	14	3.39 €
B0309.2082	steel	signal green RAL6032	M8	32	15,5	19	33	3,5	2,6	14	3.39 €
B0309.2083	steel	blue RAL5017	M8	32	15,5	19	33	3,5	2,6	14	3.39 €
B0309.2085	steel	light grey RAL 7035	M8	32	15,5	19	33	3,5	2,6	14	3.39 €
B0309.2086	steel	traffic red RAL 3020	M8	32	15,5	19	33	3,5	2,6	14	3.39 €
B0309.2087	steel	colza yellow RAL 1021	M8	32	15,5	19	33	3,5	2,6	14	3.39 €
B0309.310	steel	black grey RAL 7021	M10	40	19	23	41	4	3	14	3.93 €
B0309.3101	steel	orange RAL 2004	M10	40	19	23	41	4	3	14	3.93 €
B0309.3102	steel	signal green RAL6032	M10	40	19	23	41	4	3	14	3.93 €
B0309.3103	steel	blue RAL5017	M10	40	19	23	41	4	3	14	3.93 €
B0309.3105	steel	light grey RAL 7035	M10	40	19	23	41	4	3	14	3.93 €
B0309.3106	steel	traffic red RAL 3020	M10	40	19	23	41	4	3	14	3.93 €
B0309.3107	steel	colza yellow RAL 1021	M10	40	19	23	41	4	3	14	3.93 €
B0309.410	steel	black grey RAL 7021	M10	50	24	31	51	5,5	4,5	14	6.02 €
B0309.4101	steel	orange RAL 2004	M10	50	24	31	51	5,5	4,5	14	6.02 €
B0309.4102	steel	signal green RAL6032	M10	50	24	31	51	5,5	4,5	14	6.02 €
B0309.4103	steel	blue RAL5017	M10	50	24	31	51	5,5	4,5	14	6.02 €
B0309.4105	steel	light grey RAL 7035	M10	50	24	31	51	5,5	4,5	14	6.02 €
B0309.4106	steel	traffic red RAL 3020	M10	50	24	31	51	5,5	4,5	14	6.02 €
B0309.4107	steel	colza yellow RAL 1021	M10	50	24	31	51	5,5	4,5	14	6.02 €
B0309.412	steel	black grey RAL 7021	M12	50	24	31	51	5,5	4,5	18	6.02 €
B0309.4121	steel	orange RAL 2004	M12	50	24	31	51	5,5	4,5	18	6.02 €
B0309.4122	steel	signal green RAL6032	M12	50	24	31	51	5,5	4,5	18	6.02 €
B0309.4123	steel	blue RAL5017	M12	50	24	31	51	5,5	4,5	18	6.02 €
B0309.4125	steel	light grey RAL 7035	M12	50	24	31	51	5,5	4,5	18	6.02 €
B0309.4126	steel	traffic red RAL 3020	M12	50	24	31	51	5,5	4,5	18	6.02 €
B0309.4127	steel	colza yellow RAL 1021	M12	50	24	31	51	5,5	4,5	18	6.02 €
B0309.0106	stainless steel	black grey RAL 7021	M6	25	12	17	25	3	2	10	3.96 €
B0309.01061	stainless steel	orange RAL 2004	M6	25	12	17	25	3	2	10	3.96 €
B0309.01062	stainless steel	signal green RAL6032	M6	25	12	17	25	3	2	10	3.96 €
B0309.01063	stainless steel	blue RAL5017	M6	25	12	17	25	3	2	10	3.96 €
B0309.01065	stainless steel	light grey RAL 7035	M6	25	12	17	25	3	2	10	3.96 €
B0309.01066	stainless steel	traffic red RAL 3020	M6	25	12	17	25	3	2	10	3.96 €
B0309.01067	stainless steel	colza yellow RAL 1021	M6	25	12	17	25	3	2	10	3.96 €
B0309.0208	stainless steel	black grey RAL 7021	M8	32	15,5	19	33	3,5	2,6	14	4.75 €
B0309.02081	stainless steel	orange RAL 2004	M8	32	15,5	19	33	3,5	2,6	14	4.75 €
B0309.02082	stainless steel	signal green RAL6032	M8	32	15,5	19	33	3,5	2,6	14	4.75 €
B0309.02083	stainless steel	blue RAL5017	M8	32	15,5	19	33	3,5	2,6	14	4.75 €
B0309.02085	stainless steel	light grey RAL 7035	M8	32	15,5	19	33	3,5	2,6	14	4.75 €
B0309.02086	stainless steel	traffic red RAL 3020	M8	32	15,5	19	33	3,5	2,6	14	4.75 €
B0309.02087	stainless steel	colza yellow RAL 1021	M8	32	15,5	19	33	3,5	2,6	14	4.75 €
B0309.0310	stainless steel	black grey RAL 7021	M10	40	19	23	41	4	3	14	5.47 €
B0309.03101	stainless steel	orange RAL 2004	M10	40	19	23	41	4	3	14	5.47 €
B0309.03102	stainless steel	signal green RAL6032	M10	40	19	23	41	4	3	14	5.47 €
B0309.03103	stainless steel	blue RAL5017	M10	40	19	23	41	4	3	14	5.47 €
B0309.03105	stainless steel	light grey RAL 7035	M10	40	19	23	41	4	3	14	5.47 €
B0309.03106	stainless steel	traffic red RAL 3020	M10	40	19	23	41	4	3	14	5.47 €
B0309.03107	stainless steel	colza yellow RAL 1021	M10	40	19	23	41	4	3	14	5.47 €
B0309.0410	stainless steel	black grey RAL 7021	M10	50	24	31	51	5,5	4,5	14	7.56 €
B0309.04101	stainless steel	orange RAL 2004	M10	50	24	31	51	5,5	4,5	14	7.56 €
B0309.04102	stainless steel	signal green RAL6032	M10	50	24	31	51	5,5	4,5	14	7.56 €
B0309.04103	stainless steel	blue RAL5017	M10	50	24	31	51	5,5	4,5	14	7.56 €
B0309.04105	stainless steel	light grey RAL 7035	M10	50	24	31	51	5,5	4,5	14	7.56 €
B0309.04106	stainless steel	traffic red RAL 3020	M10	50	24	31	51	5,5	4,5	14	7.56 €
B0309.04107	stainless steel	colza yellow RAL 1021	M10	50	24	31	51	5,5	4,5	14	7.56 €
B0309.0412	stainless steel	black grey RAL 7021	M12	50	24	31	51	5,5	4,5	18	7.56 €
B0309.04121	stainless steel	orange RAL 2004	M12	50	24	31	51	5,5	4,5	18	7.56 €
B0309.04122	stainless steel	signal green RAL6032	M12	50	24	31	51	5,5	4,5	18	7.56 €
B0309.04123	stainless steel	blue RAL5017	M12	50	24	31	51	5,5	4,5	18	7.56 €
B0309.04125	stainless steel	light grey RAL 7035	M12	50	24	31	51	5,5	4,5	18	7.56 €
B0309.04126	stainless steel	traffic red RAL 3020	M12	50	24	31	51	5,5	4,5	18	7.56 €
B0309.04127	stainless steel	colza yellow RAL 1021	M12	50	24	31	51	5,5	4,5	18	7.56 €
