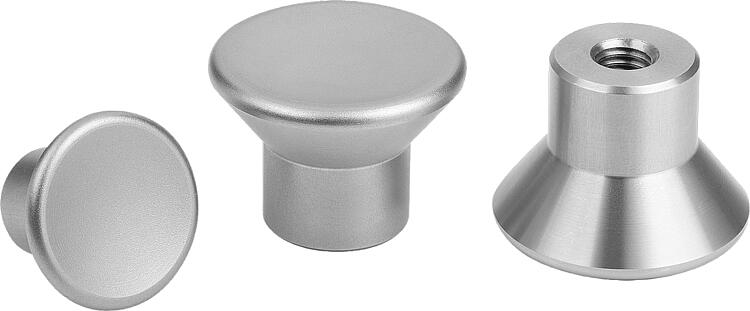

B0559Mushroom knobs stainless steel with internal thread and low... |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Stainless steel 1.4305, stainless steel 1.4404.Version:Fine turned or abrasive blasted.On request:With external threads.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Size | Steel
code | Surface finish
body | D
| D1 | D2 | H | H1 | T | CAD | Acc. | Price | Order |
|---|
| B0559.1902 | 9 | 1.4305 | bright | M2 | 14 | 8 | 11 | 5,8 | 4 |  | | 5.38 € | | | B0559.1003 | 0 | 1.4305 | bright | M3 | 18 | 10 | 13,5 | 6,6 | 8 | | | 4.90 € | | | B0559.1104 | 1 | 1.4305 | bright | M4 | 21 | 13 | 14,5 | 7,2 | 9 | | | 5.38 € | | | B0559.1105 | 1 | 1.4305 | bright | M5 | 21 | 13 | 14,5 | 7,2 | 9 | | | 5.38 € | | | B0559.1206 | 2 | 1.4305 | bright | M6 | 25 | 14 | 17,7 | 8,7 | 10 | | | 6.00 € | | | B0559.1308 | 3 | 1.4305 | bright | M8 | 33 | 19 | 24 | 12,4 | 14 | | | 8.73 € | | | B0559.1410 | 4 | 1.4305 | bright | M10 | 40 | 27 | 30 | 18,5 | 20 | | | 8.73 € | | | B0559.2902 | 9 | 1.4305 | blasted | M2 | 14 | 8 | 11 | 5,8 | 4 | | | 5.38 € | | | B0559.2003 | 0 | 1.4305 | blasted | M3 | 18 | 10 | 13,5 | 6,6 | 8 | | | 4.90 € | | | B0559.2104 | 1 | 1.4305 | blasted | M4 | 21 | 13 | 14,5 | 7,2 | 9 | | | 5.38 € | | | B0559.2105 | 1 | 1.4305 | blasted | M5 | 21 | 13 | 14,5 | 7,2 | 9 | | | 5.38 € | | | B0559.2206 | 2 | 1.4305 | blasted | M6 | 25 | 14 | 17,7 | 8,7 | 10 | | | 6.00 € | | | B0559.2308 | 3 | 1.4305 | blasted | M8 | 33 | 19 | 24 | 12,4 | 14 | | | 8.73 € | | | B0559.2410 | 4 | 1.4305 | blasted | M10 | 40 | 27 | 30 | 18,5 | 20 | | | 8.73 € | | | B0559.3902 | 9 | 1.4404 | bright | M2 | 14 | 8 | 11 | 5,8 | 4 | | | 7.79 € | | | B0559.3003 | 0 | 1.4404 | bright | M3 | 18 | 10 | 13,5 | 6,6 | 8 | | | 7.08 € | | | B0559.3104 | 1 | 1.4404 | bright | M4 | 21 | 13 | 14,5 | 7,2 | 9 | | | 8.39 € | | | B0559.3105 | 1 | 1.4404 | bright | M5 | 21 | 13 | 14,5 | 7,2 | 9 | | | 8.39 € | | | B0559.3206 | 2 | 1.4404 | bright | M6 | 25 | 14 | 17,7 | 8,7 | 10 | | | 8.63 € | | | B0559.3308 | 3 | 1.4404 | bright | M8 | 33 | 19 | 24 | 12,4 | 14 | | | 12.60 € | | | B0559.3410 | 4 | 1.4404 | bright | M10 | 40 | 27 | 30 | 18,5 | 20 | | | 13.58 € | | | B0559.4902 | 9 | 1.4404 | blasted | M2 | 14 | 8 | 11 | 5,8 | 4 | | | 7.79 € | | | B0559.4003 | 0 | 1.4404 | blasted | M3 | 18 | 10 | 13,5 | 6,6 | 8 | | | 7.08 € | | | B0559.4104 | 1 | 1.4404 | blasted | M4 | 21 | 13 | 14,5 | 7,2 | 9 | | | 8.39 € | | | B0559.4105 | 1 | 1.4404 | blasted | M5 | 21 | 13 | 14,5 | 7,2 | 9 | | | 8.39 € | | | B0559.4206 | 2 | 1.4404 | blasted | M6 | 25 | 14 | 17,7 | 8,7 | 10 | | | 8.63 € | | | B0559.4308 | 3 | 1.4404 | blasted | M8 | 33 | 19 | 24 | 12,4 | 14 | | | 12.60 € | | | B0559.4410 | 4 | 1.4404 | blasted | M10 | 40 | 27 | 30 | 18,5 | 20 | | | 13.58 € | |
