B0300Mushroom knobs internal thread |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Steel, stainless steel or aluminium.Version:Steel trivalent blue passivated.
Stainless steel electropolished or blasted.
Aluminium natural tone anodised.On request:With external threads.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

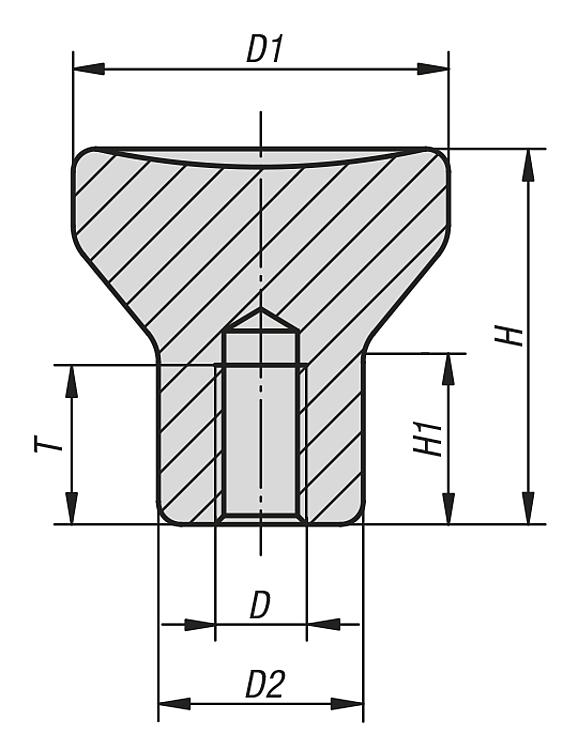

| Order No. | Main
material | Steel
code | Surface finish
body | D
| D1 | D2 | H | H1 | T | CAD | Acc. | Price | Order |
|---|
| B0300.0902 | steel | - | blue-passivated | M2 | 14 | 8 | 14 | 6,7 | 4 |  | | 4.70 € | | | B0300.0003 | steel | - | blue-passivated | M3 | 18 | 10 | 18 | 8,6 | 7,5 | | | 4.30 € | | | B0300.0104 | steel | - | blue-passivated | M4 | 21 | 12 | 21 | 10 | 10 | | | 4.70 € | | | B0300.0105 | steel | - | blue-passivated | M5 | 21 | 12 | 21 | 10 | 12,5 | | | 4.70 € | | | B0300.0206 | steel | - | blue-passivated | M6 | 25 | 14 | 25 | 12 | 12 | | | 5.22 € | | | B0300.0308 | steel | - | blue-passivated | M8 | 33 | 18 | 33 | 16 | 16 | | | 8.27 € | | | B0300.0410 | steel | - | blue-passivated | M10 | 40 | 24 | 40 | 18,7 | 20 | | | 8.66 € | | | B0300.902 | stainless steel | 1.4305 | - | M2 | 14 | 8 | 14 | 6,7 | 4 | | | 5.54 € | | | B0300.003 | stainless steel | 1.4305 | - | M3 | 18 | 10 | 18 | 8,6 | 7,5 | | | 5.05 € | | | B0300.104 | stainless steel | 1.4305 | - | M4 | 21 | 12 | 21 | 10 | 10 | | | 5.54 € | | | B0300.105 | stainless steel | 1.4305 | - | M5 | 21 | 12 | 21 | 10 | 12,5 | | | 5.54 € | | | B0300.206 | stainless steel | 1.4305 | - | M6 | 25 | 14 | 25 | 12 | 12 | | | 6.18 € | | | B0300.308 | stainless steel | 1.4305 | - | M8 | 33 | 18 | 33 | 16 | 16 | | | 8.99 € | | | B0300.410 | stainless steel | 1.4305 | - | M10 | 40 | 24 | 40 | 18,7 | 20 | | | 8.99 € | | | B0300.2902 | stainless steel | 1.4305 | blasted | M2 | 14 | 8 | 14 | 6,7 | 4 | | | 5.54 € | | | B0300.2003 | stainless steel | 1.4305 | blasted | M3 | 18 | 10 | 18 | 8,6 | 7,5 | | | 5.05 € | | | B0300.2104 | stainless steel | 1.4305 | blasted | M4 | 21 | 12 | 21 | 10 | 10 | | | 5.54 € | | | B0300.2105 | stainless steel | 1.4305 | blasted | M5 | 21 | 12 | 21 | 10 | 12,5 | | | 5.54 € | | | B0300.2206 | stainless steel | 1.4305 | blasted | M6 | 25 | 14 | 25 | 12 | 12 | | | 6.18 € | | | B0300.2308 | stainless steel | 1.4305 | blasted | M8 | 33 | 18 | 33 | 16 | 16 | | | 8.99 € | | | B0300.2410 | stainless steel | 1.4305 | blasted | M10 | 40 | 24 | 40 | 18,7 | 20 | | | 8.99 € | | | B0300.1902 | aluminium | - | anodised | M2 | 14 | 8 | 14 | 6,7 | 4 | | | 4.60 € | | | B0300.1003 | aluminium | - | anodised | M3 | 18 | 10 | 18 | 8,6 | 7,5 | | | 4.19 € | | | B0300.1104 | aluminium | - | anodised | M4 | 21 | 12 | 21 | 10 | 10 | | | 4.60 € | | | B0300.1105 | aluminium | - | anodised | M5 | 21 | 12 | 21 | 10 | 12,5 | | | 4.60 € | | | B0300.1206 | aluminium | - | anodised | M6 | 25 | 14 | 25 | 12 | 12 | | | 5.11 € | | | B0300.1308 | aluminium | - | anodised | M8 | 33 | 18 | 33 | 16 | 16 | | | 7.46 € | | | B0300.1410 | aluminium | - | anodised | M10 | 40 | 24 | 40 | 18,7 | 20 | | | 7.46 € | |
