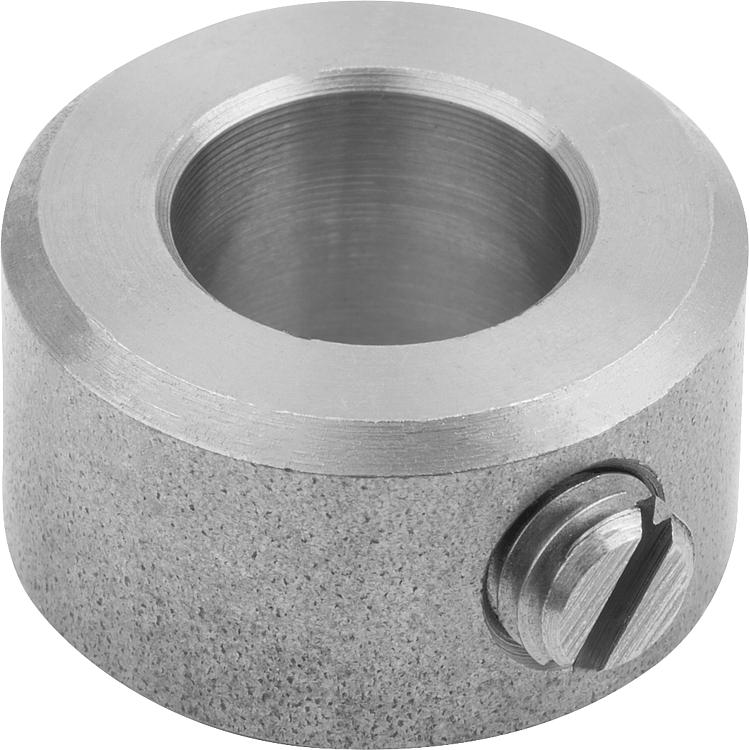

Shaft collars set screw DIN 705, steel , Form A, recess
B0143

Shaft collars set screw DIN 705, steel , Form A, recess

go back

Item description/product images

DescriptionMaterial:Steel.Version:Shaft collar bright steel.
Grub screw steel grade 15H, bright.
Drawing reference:
1) Second grub screw from D1 ≥ 75
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet B0143 Shaft collars set screw DIN 705, steel , Form A, recess 280 kB

Drawings

Shaft collars set screw DIN 705, steel , Form A, recess

Item selection/filter

Order No.Component
material
Surface finish
body
FormD1BD2D3
grub screw
CADAcc.PriceOrder
B0143.100301steelbrightA357M2x3 0.42 €
B0143.100401steelbrightA458M2,5x3 0.42 €
B0143.100501steelbrightA5610M3x4 0.42 €
B0143.100601steelbrightA6812M4x5 0.43 €
B0143.100701steelbrightA7812M4x5 0.43 €
B0143.100801steelbrightA8816M4x6 0.50 €
B0143.100901steelbrightA91018M5x8 0.63 €
B0143.101001steelbrightA101020M5x8 0.63 €
B0143.101101steelbrightA111020M5x8 0.63 €
B0143.101201steelbrightA121222M6x8 0.79 €
B0143.101401steelbrightA141225M6x8 0.88 €
B0143.101501steelbrightA151225M6x8 0.88 €
B0143.101601steelbrightA161228M6x8 0.92 €
B0143.101801steelbrightA181432M6x8 1.18 €
B0143.102001steelbrightA201432M6x8 1.18 €
B0143.102401steelbrightA241640M8x12 1.85 €
B0143.102501steelbrightA251640M8x10 1.85 €
B0143.102601steelbrightA261640M8x10 1.85 €
B0143.102801steelbrightA281645M8x12 2.39 €
B0143.103001steelbrightA301645M8x10 2.46 €
B0143.103201steelbrightA321650M8x12 2.95 €
B0143.103501steelbrightA351656M8x12 3.36 €
B0143.103601steelbrightA361656M8x12 3.36 €
B0143.103801steelbrightA381656M8x12 3.65 €
B0143.104001steelbrightA401863M10x16 4.97 €
B0143.104201steelbrightA421863M10x16 4.97 €
B0143.104501steelbrightA451870M10x16 5.97 €
B0143.104801steelbrightA481870M10x16 5.97 €
B0143.105001steelbrightA501880M10x16 7.53 €
B0143.105201steelbrightA521880M10x16 7.53 €
B0143.105501steelbrightA551880M10x16 7.53 €
B0143.105601steelbrightA561880M10x16 7.53 €
B0143.105801steelbrightA582090M10x16 11.17 €
B0143.106001steelbrightA602090M10x16 11.17 €
B0143.106301steelbrightA632090M10x16 11.17 €
B0143.106501steelbrightA6520100M10x20 13.77 €
B0143.106801steelbrightA6820100M10x20 13.77 €
B0143.107001steelbrightA7020100M10x20 13.77 €
B0143.107201steelbrightA7220100M10x20 18.38 €
B0143.107501steelbrightA7522110M12x20 18.38 €
B0143.108001steelbrightA8022110M12x20 18.38 €
B0143.108501steelbrightA8522125M12x25 35.73 €
B0143.109001steelbrightA9022125M12x20 35.73 €
B0143.110001steelbrightA10025140M12x25 41.85 €
