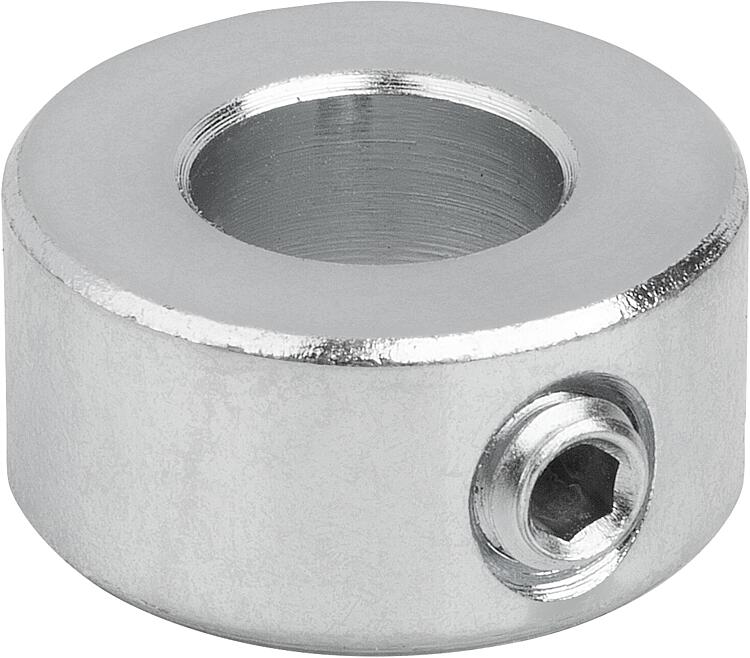

B0143Shaft collars set screw DIN 705, steel , Form E, hexagon socket |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Steel.Version:Shaft collar bright or electro zinc-plated, blue passivated.
Grub screw grade 45H, bright (black) or electro zinc-plated, blue passivated.
Drawing reference:1) Second grub screw from D1 ≥ 75 DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Component
material | Surface finish
body | Form | D1 | B | D2 | D3
grub screw | CAD | Acc. | Price | Order |
|---|
| B0143.300301 | steel | bright | E | 3 | 5 | 7 | M2x3 |  | | 0.54 € | | | B0143.300401 | steel | bright | E | 4 | 5 | 8 | M2,5x3 | | | 0.54 € | | | B0143.300501 | steel | bright | E | 5 | 6 | 10 | M3x4 | | | 0.55 € | | | B0143.300601 | steel | bright | E | 6 | 8 | 12 | M4x5 | | | 0.55 € | | | B0143.300701 | steel | bright | E | 7 | 8 | 12 | M4x5 | | | 0.55 € | | | B0143.300801 | steel | bright | E | 8 | 8 | 16 | M4x6 | | | 0.60 € | | | B0143.300901 | steel | bright | E | 9 | 10 | 18 | M5x8 | | | 0.65 € | | | B0143.301001 | steel | bright | E | 10 | 10 | 20 | M5x8 | | | 0.75 € | | | B0143.301101 | steel | bright | E | 11 | 10 | 20 | M5x8 | | | 0.75 € | | | B0143.301201 | steel | bright | E | 12 | 12 | 22 | M6x8 | | | 0.85 € | | | B0143.301401 | steel | bright | E | 14 | 12 | 25 | M6x8 | | | 0.94 € | | | B0143.301501 | steel | bright | E | 15 | 12 | 25 | M6x8 | | | 0.94 € | | | B0143.301601 | steel | bright | E | 16 | 12 | 28 | M6x8 | | | 0.99 € | | | B0143.301801 | steel | bright | E | 18 | 14 | 32 | M6x8 | | | 1.30 € | | | B0143.302001 | steel | bright | E | 20 | 14 | 32 | M6x8 | | | 1.30 € | | | B0143.302401 | steel | bright | E | 24 | 16 | 40 | M8x12 | | | 1.96 € | | | B0143.302501 | steel | bright | E | 25 | 16 | 40 | M8x10 | | | 1.96 € | | | B0143.302601 | steel | bright | E | 26 | 16 | 40 | M8x10 | | | 1.96 € | | | B0143.302801 | steel | bright | E | 28 | 16 | 45 | M8x12 | | | 2.53 € | | | B0143.303001 | steel | bright | E | 30 | 16 | 45 | M8x10 | | | 2.60 € | | | B0143.303201 | steel | bright | E | 32 | 16 | 50 | M8x12 | | | 3.10 € | | | B0143.303501 | steel | bright | E | 35 | 16 | 56 | M8x12 | | | 3.49 € | | | B0143.303601 | steel | bright | E | 36 | 16 | 56 | M8x12 | | | 3.49 € | | | B0143.303801 | steel | bright | E | 38 | 16 | 56 | M8x12 | | | 3.74 € | | | B0143.304001 | steel | bright | E | 40 | 18 | 63 | M10x16 | | | 5.09 € | | | B0143.304201 | steel | bright | E | 42 | 18 | 63 | M10x16 | | | 5.09 € | | | B0143.304501 | steel | bright | E | 45 | 18 | 70 | M10x16 | | | 6.03 € | | | B0143.304801 | steel | bright | E | 48 | 18 | 70 | M10x16 | | | 6.03 € | | | B0143.305001 | steel | bright | E | 50 | 18 | 80 | M10x16 | | | 7.63 € | | | B0143.305201 | steel | bright | E | 52 | 18 | 80 | M10x16 | | | 7.63 € | | | B0143.305501 | steel | bright | E | 55 | 18 | 80 | M10x16 | | | 7.63 € | | | B0143.305601 | steel | bright | E | 56 | 18 | 80 | M10x16 | | | 7.63 € | | | B0143.305801 | steel | bright | E | 58 | 20 | 90 | M10x16 | | | 11.64 € | | | B0143.306001 | steel | bright | E | 60 | 20 | 90 | M10x16 | | | 11.64 € | | | B0143.306301 | steel | bright | E | 63 | 20 | 90 | M10x16 | | | 11.64 € | | | B0143.306501 | steel | bright | E | 65 | 20 | 100 | M10x20 | | | 14.37 € | | | B0143.306801 | steel | bright | E | 68 | 20 | 100 | M10x20 | | | 14.37 € | | | B0143.307001 | steel | bright | E | 70 | 20 | 100 | M10x20 | | | 14.37 € | | | B0143.307201 | steel | bright | E | 72 | 20 | 100 | M10x20 | | | 19.73 € | | | B0143.307501 | stainless steel A2 | bright | E | 75 | 22 | 110 | M12x20 | | | 19.73 € | | | B0143.308001 | stainless steel A2 | bright | E | 80 | 22 | 110 | M12x20 | | | 19.73 € | | | B0143.308501 | stainless steel A2 | bright | E | 85 | 22 | 125 | M12x25 | | | 36.02 € | | | B0143.309001 | stainless steel A2 | bright | E | 90 | 22 | 125 | M12x20 | | | 36.02 € | | | B0143.310001 | stainless steel A2 | bright | E | 100 | 25 | 140 | M12x25 | | | 42.65 € | | | B0143.300303 | steel | galvanized, blue-passivated | E | 3 | 5 | 7 | M2x3 | | | 0.84 € | | | B0143.300403 | steel | galvanized, blue-passivated | E | 4 | 5 | 8 | M2,5x3 | | | 0.84 € | | | B0143.300503 | steel | galvanized, blue-passivated | E | 5 | 6 | 10 | M3x4 | | | 0.87 € | | | B0143.300603 | steel | galvanized, blue-passivated | E | 6 | 8 | 12 | M4x5 | | | 0.87 € | | | B0143.300703 | steel | galvanized, blue-passivated | E | 7 | 8 | 12 | M4x5 | | | 0.93 € | | | B0143.300803 | steel | galvanized, blue-passivated | E | 8 | 8 | 16 | M4x6 | | | 0.95 € | | | B0143.300903 | steel | galvanized, blue-passivated | E | 9 | 10 | 18 | M5x8 | | | 1.03 € | | | B0143.301003 | steel | galvanized, blue-passivated | E | 10 | 10 | 20 | M5x8 | | | 1.12 € | | | B0143.301103 | steel | galvanized, blue-passivated | E | 11 | 10 | 20 | M5x8 | | | 1.12 € | | | B0143.301203 | steel | galvanized, blue-passivated | E | 12 | 12 | 22 | M6x8 | | | 1.16 € | | | B0143.301403 | steel | galvanized, blue-passivated | E | 14 | 12 | 25 | M6x8 | | | 1.17 € | | | B0143.301503 | steel | galvanized, blue-passivated | E | 15 | 12 | 25 | M6x8 | | | 1.17 € | | | B0143.301603 | steel | galvanized, blue-passivated | E | 16 | 12 | 28 | M6x8 | | | 1.24 € | | | B0143.301803 | steel | galvanized, blue-passivated | E | 18 | 14 | 32 | M6x8 | | | 1.32 € | | | B0143.302003 | steel | galvanized, blue-passivated | E | 20 | 14 | 32 | M6x8 | | | 1.32 € | | | B0143.302403 | steel | galvanized, blue-passivated | E | 24 | 16 | 40 | M8x12 | | | 2.01 € | | | B0143.302503 | steel | galvanized, blue-passivated | E | 25 | 16 | 40 | M8x10 | | | 2.01 € | | | B0143.302603 | steel | galvanized, blue-passivated | E | 26 | 16 | 40 | M8x10 | | | 2.01 € | | | B0143.302803 | steel | galvanized, blue-passivated | E | 28 | 16 | 45 | M8x12 | | | 2.53 € | | | B0143.303003 | steel | galvanized, blue-passivated | E | 30 | 16 | 45 | M8x10 | | | 2.60 € | | | B0143.303203 | steel | galvanized, blue-passivated | E | 32 | 16 | 50 | M8x12 | | | 3.79 € | | | B0143.303503 | steel | galvanized, blue-passivated | E | 35 | 16 | 56 | M8x12 | | | 4.41 € | | | B0143.303603 | steel | galvanized, blue-passivated | E | 36 | 16 | 56 | M8x12 | | | 5.12 € | | | B0143.303803 | steel | galvanized, blue-passivated | E | 38 | 16 | 56 | M8x12 | | | 6.08 € | | | B0143.304003 | steel | galvanized, blue-passivated | E | 40 | 18 | 63 | M10x16 | | | 5.78 € | | | B0143.304203 | steel | galvanized, blue-passivated | E | 42 | 18 | 63 | M10x16 | | | 6.19 € | | | B0143.304503 | steel | galvanized, blue-passivated | E | 45 | 18 | 70 | M10x16 | | | 7.84 € | | | B0143.304803 | steel | galvanized, blue-passivated | E | 48 | 18 | 70 | M10x16 | | | 8.57 € | | | B0143.305003 | steel | galvanized, blue-passivated | E | 50 | 18 | 80 | M10x16 | | | 8.70 € | | | B0143.305203 | steel | galvanized, blue-passivated | E | 52 | 18 | 80 | M10x16 | | | 8.70 € | | | B0143.305503 | steel | galvanized, blue-passivated | E | 55 | 18 | 80 | M10x16 | | | 8.70 € | | | B0143.305603 | steel | galvanized, blue-passivated | E | 56 | 18 | 80 | M10x16 | | | 12.57 € | | | B0143.305803 | steel | galvanized, blue-passivated | E | 58 | 20 | 90 | M10x16 | | | 17.21 € | | | B0143.306003 | steel | galvanized, blue-passivated | E | 60 | 20 | 90 | M10x16 | | | 14.77 € | | | B0143.306303 | steel | galvanized, blue-passivated | E | 63 | 20 | 90 | M10x16 | | | 17.21 € | | | B0143.306503 | steel | galvanized, blue-passivated | E | 65 | 20 | 100 | M10x20 | | | 19.42 € | | | B0143.306803 | steel | galvanized, blue-passivated | E | 68 | 20 | 100 | M10x20 | | | 19.42 € | | | B0143.307003 | steel | galvanized, blue-passivated | E | 70 | 20 | 100 | M10x20 | | | 19.42 € | | | B0143.307203 | steel | galvanized, blue-passivated | E | 72 | 20 | 100 | M10x20 | | | 25.40 € | | | B0143.307503 | steel | galvanized, blue-passivated | E | 75 | 22 | 110 | M12x20 | | | 25.40 € | | | B0143.308003 | steel | galvanized, blue-passivated | E | 80 | 22 | 110 | M12x20 | | | 25.40 € | | | B0143.308503 | steel | galvanized, blue-passivated | E | 85 | 22 | 125 | M12x25 | | | 39.47 € | | | B0143.309003 | steel | galvanized, blue-passivated | E | 90 | 22 | 125 | M12x20 | | | 39.47 € | | | B0143.310003 | steel | galvanized, blue-passivated | E | 100 | 25 | 140 | M12x25 | | | 42.72 € | |
