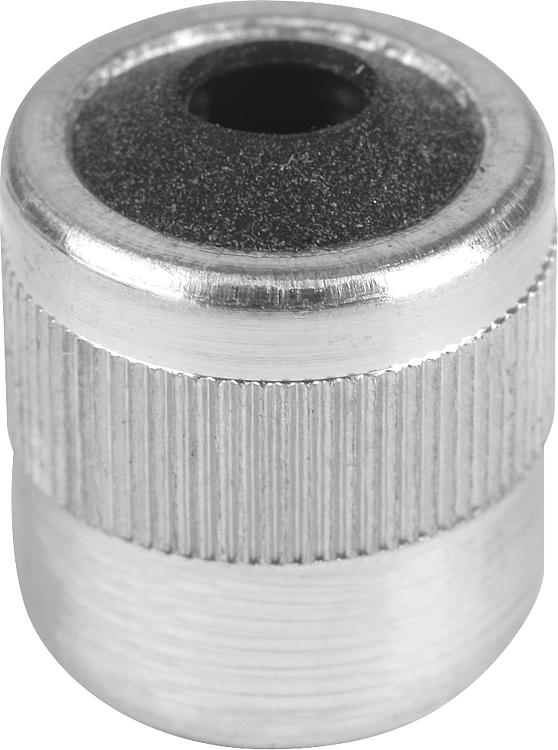

B0040Lateral spring plungers without thrust pin, Form B with seal |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Sleeve aluminium.
Receiving washer steel.
Spring steel.Version:Sleeve blue electro zinc-plated.Note:The thrust pin can be made to suit the required circumstances and screwed into the tapped hole in the locating washer.
The required lateral thrust (F) can be achieved through the stroke (S) and length (L1).
Form B has a seal to keep swarf and dirt out.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Form
| D | D1 | D2 | L | L1 | S | F
ca.N | CAD | Acc. | Price | Order |
|---|
| B0040.32054 | B | 10 | M4 | 10 | 12 | 4 | 1,6 | 20 |  | | 6.92 € | | | B0040.32056 | B | 10 | M4 | 10 | 12 | 4 | 1,6 | 50 | | | 6.92 € | | | B0040.32058 | B | 10 | M4 | 10 | 12 | 4 | 1,6 | 100 | | | 6.92 € | | | B0040.32064 | B | 10 | M4 | 10 | 12 | 7,5 | 2 | 40 | | | 7.32 € | | | B0040.32066 | B | 10 | M4 | 10 | 12 | 7,5 | 2 | 75 | | | 7.32 € | | | B0040.32068 | B | 10 | M4 | 10 | 12 | 7,5 | 2 | 100 | | | 7.32 € | | | B0040.32104 | B | 16 | M6 | 16 | 18 | 11,5 | 3,2 | 100 | | | 8.37 € | | | B0040.32106 | B | 16 | M6 | 16 | 18 | 11,5 | 3,2 | 150 | | | 8.37 € | | | B0040.32108 | B | 16 | M6 | 16 | 18 | 11,5 | 3,2 | 200 | | | 8.37 € | |
