B0086Locking pins, stainless steel with plastic mushroom grip |
go back |
|

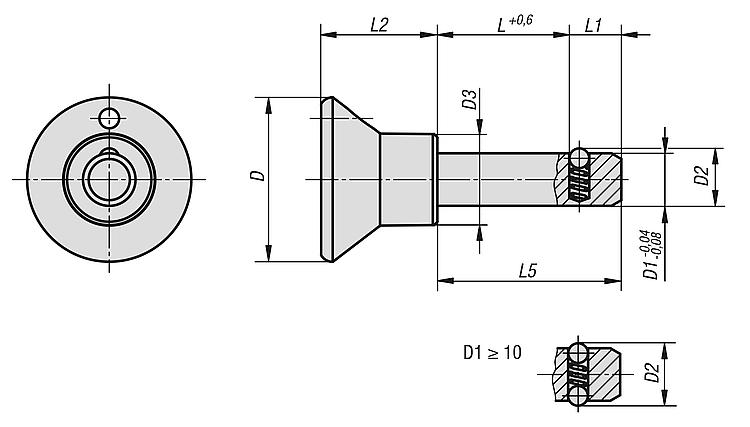

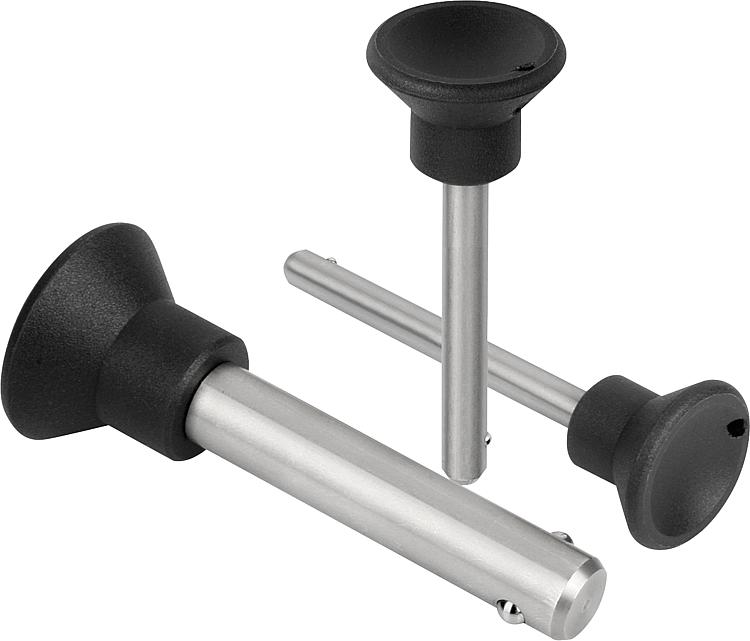

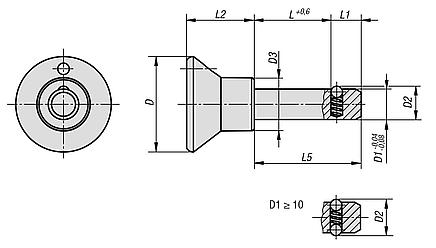

Item description/product images |
|
|
DescriptionMaterial:Grip thermoplastic.
Steel parts stainless steel.Version:Grip black.

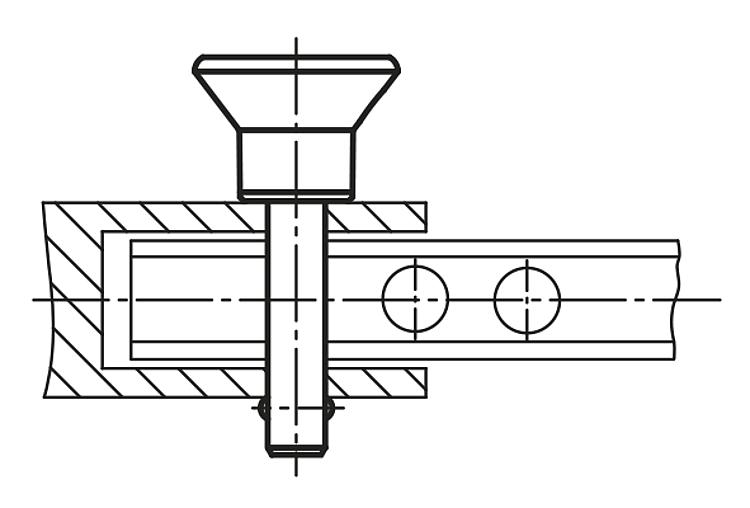

Stainless steel bright.Note:Locking pins are used for quick and easy fixating and joining of parts and workpieces.
Shearing force double-shear (F) = S · τ aB max.Accessory:Bushes for ball lock pins B0082
Safety spiral cable B0091
Retaining cable with loop B0092
Key ring B0090
Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | D | D1 | D2 | D3 | L | L1 | L2 | L5 | Receiving
hole
H11 | Shearing force
double shear
max.kN | CAD | Acc. | Price | Order |
|---|
| B0086.2506010 | 25 | 6 | 6,5 | 14 | 10 | 7 | 17,7 | 17 | 6 | 22 |  |  | 9.86 € | | | B0086.2506015 | 25 | 6 | 6,5 | 14 | 15 | 7 | 17,7 | 22 | 6 | 22 | | | 10.16 € | | | B0086.2506020 | 25 | 6 | 6,5 | 14 | 20 | 7 | 17,7 | 27 | 6 | 22 | | | 10.38 € | | | B0086.2506025 | 25 | 6 | 6,5 | 14 | 25 | 7 | 17,7 | 32 | 6 | 22 | | | 10.52 € | | | B0086.2506030 | 25 | 6 | 6,5 | 14 | 30 | 7 | 17,7 | 37 | 6 | 22 | | | 10.79 € | | | B0086.2506040 | 25 | 6 | 6,5 | 14 | 40 | 7 | 17,7 | 47 | 6 | 22 | | | 11.07 € | | | B0086.2506050 | 25 | 6 | 6,5 | 14 | 50 | 7 | 17,7 | 57 | 6 | 22 | | | 11.37 € | | | B0086.2508015 | 25 | 8 | 8,75 | 14 | 15 | 8 | 17,7 | 23 | 8 | 38 | | | 10.38 € | | | B0086.2508020 | 25 | 8 | 8,75 | 14 | 20 | 8 | 17,7 | 28 | 8 | 38 | | | 10.52 € | | | B0086.2508025 | 25 | 8 | 8,75 | 14 | 25 | 8 | 17,7 | 33 | 8 | 38 | | | 10.79 € | | | B0086.2508030 | 25 | 8 | 8,75 | 14 | 30 | 8 | 17,7 | 38 | 8 | 38 | | | 11.07 € | | | B0086.2508040 | 25 | 8 | 8,75 | 14 | 40 | 8 | 17,7 | 48 | 8 | 38 | | | 11.37 € | | | B0086.2508050 | 25 | 8 | 8,75 | 14 | 50 | 8 | 17,7 | 58 | 8 | 38 | | | 11.66 € | | | B0086.3310015 | 33 | 10 | 12 | 19 | 15 | 9 | 24 | 24 | 10 | 60 | | | 12.80 € | | | B0086.3310020 | 33 | 10 | 12 | 19 | 20 | 9 | 24 | 29 | 10 | 60 | | | 13.10 € | | | B0086.3310025 | 33 | 10 | 12 | 19 | 25 | 9 | 24 | 34 | 10 | 60 | | | 13.39 € | | | B0086.3310030 | 33 | 10 | 12 | 19 | 30 | 9 | 24 | 39 | 10 | 60 | | | 13.68 € | | | B0086.3310040 | 33 | 10 | 12 | 19 | 40 | 9 | 24 | 49 | 10 | 60 | | | 13.95 € | | | B0086.3310050 | 33 | 10 | 12 | 19 | 50 | 9 | 24 | 59 | 10 | 60 | | | 14.24 € | | | B0086.3312020 | 33 | 12 | 14,5 | 19 | 20 | 10 | 24 | 30 | 12 | 86 | | | 14.75 € | | | B0086.3312030 | 33 | 12 | 14,5 | 19 | 30 | 10 | 24 | 40 | 12 | 86 | | | 15.32 € | | | B0086.3312040 | 33 | 12 | 14,5 | 19 | 40 | 10 | 24 | 50 | 12 | 86 | | | 16.18 € | | | B0086.3312050 | 33 | 12 | 14,5 | 19 | 50 | 10 | 24 | 60 | 12 | 86 | | | 16.91 € | |
