B0089Locking pins with axial lock |
go back |
|
Item description/product images |
|
|

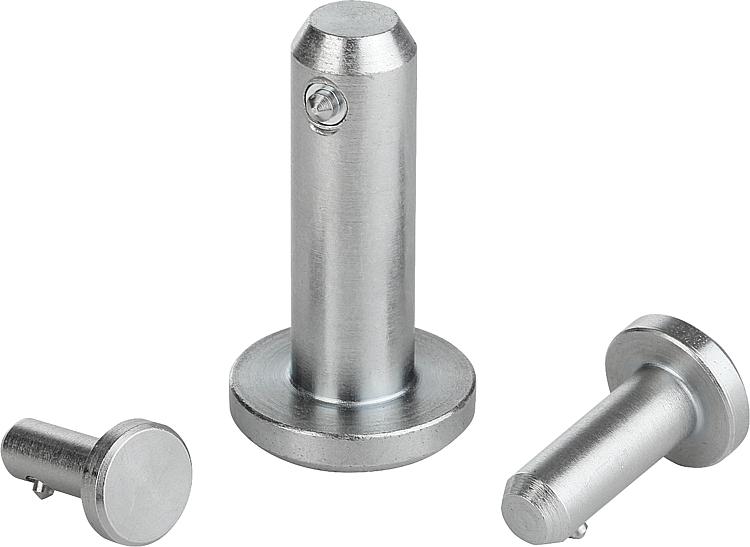

DescriptionMaterial:Steel.Version:Electro zinc-plated.Note:Locking pins are used for quick and easy fixating and joining of parts and workpieces.

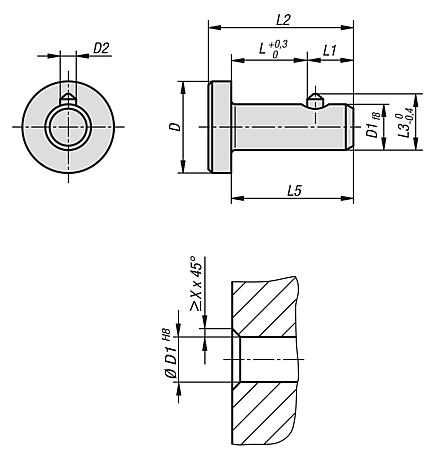

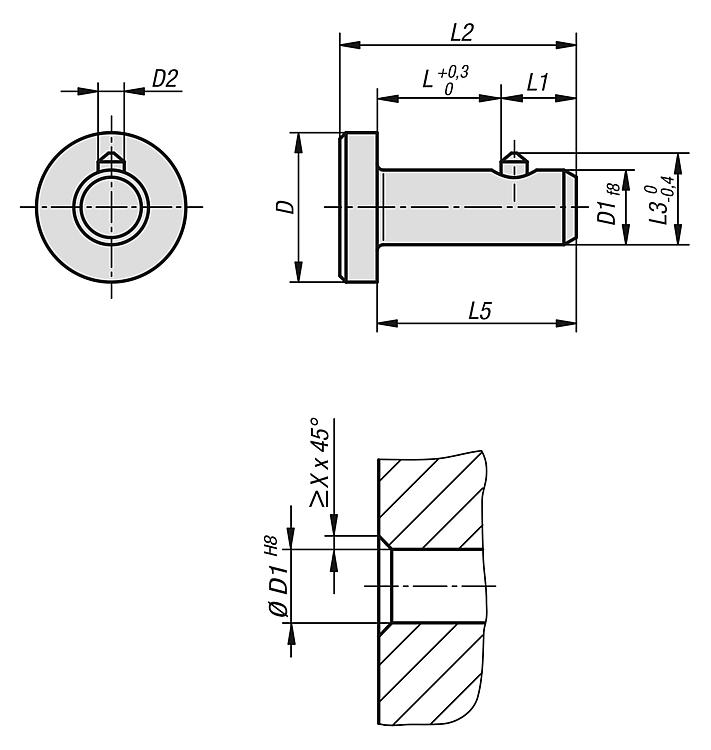

Shearing force double-shear (F) = S · τ aB max.Assembly:Observe the assembly aid dimension X in the workpiece.Drawing reference:Chamfer for counterpart Xmin. x 45° DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | D | D1 | D2 | L | L1 | L2 | L3 | L5 | X | Shearing force
double shear
max.kN | CAD | Acc. | Price | Order |
|---|
| B0089.1206010 | 12 | 6 | 2,1 | 10 | 6 | 19 | 7,4 | 16 | 1,1 | 12 |  | | 4.21 € | | | B0089.1206012 | 12 | 6 | 2,1 | 12 | 6 | 21 | 7,4 | 18 | 1,1 | 12 | | | 4.36 € | | | B0089.1206016 | 12 | 6 | 2,1 | 16 | 6 | 25 | 7,4 | 22 | 1,1 | 12 | | | 4.52 € | | | B0089.1206020 | 12 | 6 | 2,1 | 20 | 6 | 29 | 7,4 | 26 | 1,1 | 12 | | | 4.75 € | | | B0089.1608012 | 16 | 8 | 2,1 | 12 | 6 | 22 | 9,4 | 18 | 1,1 | 22 | | | 4.43 € | | | B0089.1608016 | 16 | 8 | 2,1 | 16 | 6 | 26 | 9,4 | 22 | 1,1 | 22 | | | 4.60 € | | | B0089.1608020 | 16 | 8 | 2,1 | 20 | 6 | 30 | 9,4 | 26 | 1,1 | 22 | | | 4.80 € | | | B0089.1608025 | 16 | 8 | 2,1 | 25 | 6 | 35 | 9,4 | 31 | 1,1 | 22 | | | 5.07 € | | | B0089.2010012 | 20 | 10 | 2,8 | 12 | 8 | 24 | 11,8 | 20 | 1,2 | 35 | | | 4.50 € | | | B0089.2010016 | 20 | 10 | 2,8 | 16 | 8 | 28 | 11,8 | 24 | 1,2 | 35 | | | 4.70 € | | | B0089.2010020 | 20 | 10 | 2,8 | 20 | 8 | 32 | 11,8 | 28 | 1,2 | 35 | | | 4.91 € | | | B0089.2010025 | 20 | 10 | 2,8 | 25 | 8 | 37 | 11,8 | 33 | 1,2 | 35 | | | 5.24 € | | | B0089.2412016 | 24 | 12 | 2,8 | 16 | 8 | 29 | 13,8 | 24 | 1,2 | 51 | | | 4.82 € | | | B0089.2412020 | 24 | 12 | 2,8 | 20 | 8 | 33 | 13,8 | 28 | 1,2 | 51 | | | 5.03 € | | | B0089.2412025 | 24 | 12 | 2,8 | 25 | 8 | 38 | 13,8 | 33 | 1,2 | 51 | | | 5.27 € | | | B0089.2412030 | 24 | 12 | 2,8 | 30 | 8 | 43 | 13,8 | 38 | 1,2 | 51 | | | 5.68 € | |
