B0511

Ring bolts DIN 580

go back

Products
- Product overview
  - Transport technology
    - Ring bolts and hoist rings
      - Ring bolts DIN 580

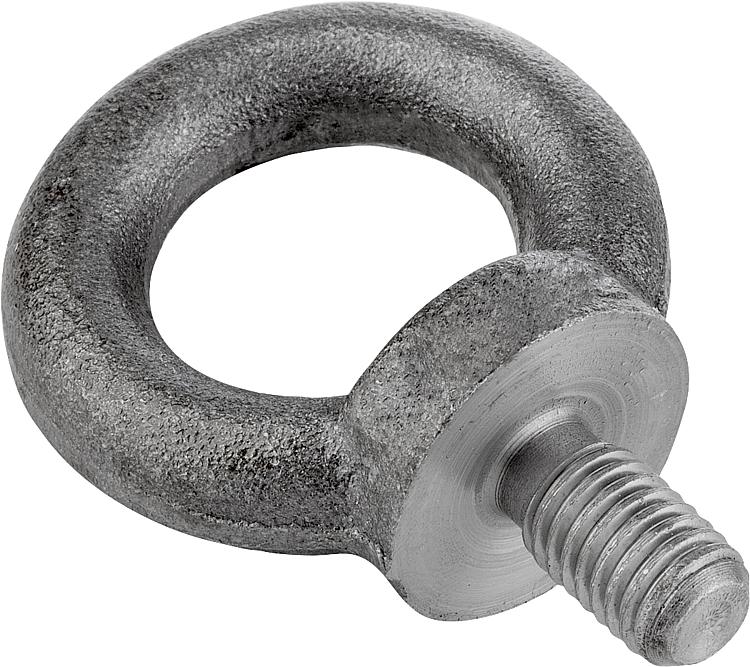

Item description/product images

DescriptionMaterial:

1.1141 steel, 1.4301 stainless steel or 1.4401 stainless steel.

Version:drop forged.Note:For high demand hoisting and carrying tasks in safety-relevant areas (machine construction, load handling equipment, lifting tackle).
The CE mark is impressed into the ring bolt.
F2 permissible load under max. 45° per ring bolt.On request:Certificate of conformity.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet B0511 Ring bolts DIN 580

310 kB

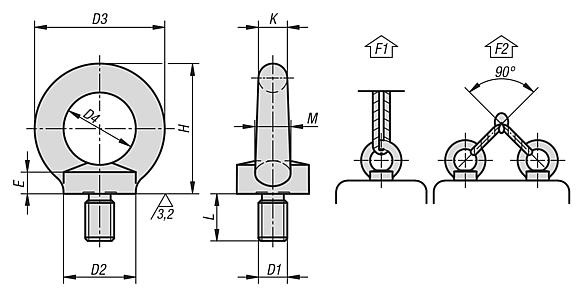

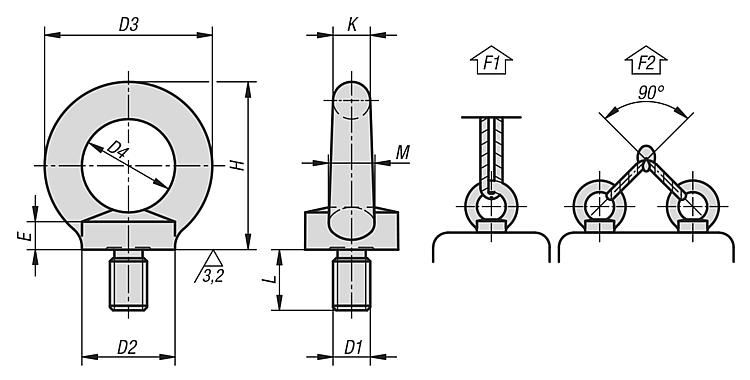

Drawings

Item selection/filter

Order No.	Main material	Steel code	Surface finish body	D1	L	D2	D3	D4	E	H	K	M	F1 max. kN	F2 max. kN	Price
B0511.08	steel	1.1141	bright	M8	13	20	36	20	6	36	8	10	1,4	0,95	1.12 €
B0511.10	steel	1.1141	bright	M10	17	25	45	25	8	45	10	12	2,3	1,7	1.44 €
B0511.12	steel	1.1141	bright	M12	20,5	30	54	30	10	53	12	14	3,4	2,4	1.95 €
B0511.16	steel	1.1141	bright	M16	27	35	63	35	12	62	14	16	7	5	2.88 €
B0511.20	steel	1.1141	bright	M20	30	40	72	40	14	71	16	19	12	8,3	3.88 €
B0511.24	steel	1.1141	bright	M24	36	50	90	50	18	90	20	24	18	12,7	7.47 €
B0511.008	steel	1.1141	galvanised	M8	13	20	36	20	6	36	8	10	1,4	0,95	1.12 €
B0511.010	steel	1.1141	galvanised	M10	17	25	45	25	8	45	10	12	2,3	1,7	1.44 €
B0511.012	steel	1.1141	galvanised	M12	20,5	30	54	30	10	53	12	14	3,4	2,4	1.95 €
B0511.016	steel	1.1141	galvanised	M16	27	35	63	35	12	62	14	16	7	5	2.88 €
B0511.020	steel	1.1141	galvanised	M20	30	40	72	40	14	71	16	19	12	8,3	3.88 €
B0511.024	steel	1.1141	galvanised	M24	36	50	90	50	18	90	20	24	18	12,7	7.47 €
B0511.108	stainless steel	1.4301	-	M8	13	20	36	20	6	36	8	10	1,4	0,95	3.72 €
B0511.110	stainless steel	1.4301	-	M10	17	25	45	25	8	45	10	12	2,3	1,7	5.95 €
B0511.112	stainless steel	1.4301	-	M12	20,5	30	54	30	10	53	12	14	3,4	2,4	8.66 €
B0511.116	stainless steel	1.4301	-	M16	27	35	63	35	12	62	14	16	7	5	12.33 €
B0511.120	stainless steel	1.4301	-	M20	30	40	72	40	14	71	16	19	12	8,3	19.11 €
B0511.124	stainless steel	1.4301	-	M24	36	50	90	50	18	90	20	24	18	12,7	33.86 €
B0511.208	stainless steel	1.4401	-	M8	13	20	36	20	6	36	8	10	1,4	0,95	5.26 €
B0511.210	stainless steel	1.4401	-	M10	17	25	45	25	8	45	10	12	2,3	1,7	7.22 €
B0511.212	stainless steel	1.4401	-	M12	20,5	30	54	30	10	53	12	14	3,4	2,4	11.92 €
B0511.216	stainless steel	1.4401	-	M16	27	35	63	35	12	62	14	16	7	5	19.15 €
B0511.220	stainless steel	1.4401	-	M20	30	40	72	40	14	71	16	19	12	8,3	24.76 €
B0511.224	stainless steel	1.4401	-	M24	36	50	90	50	18	90	20	24	18	12,7	52.34 €
