B0513

Ring nuts DIN 582

go back

Products
- Product overview
  - Transport technology
    - Ring bolts and hoist rings
      - Ring nuts DIN 582

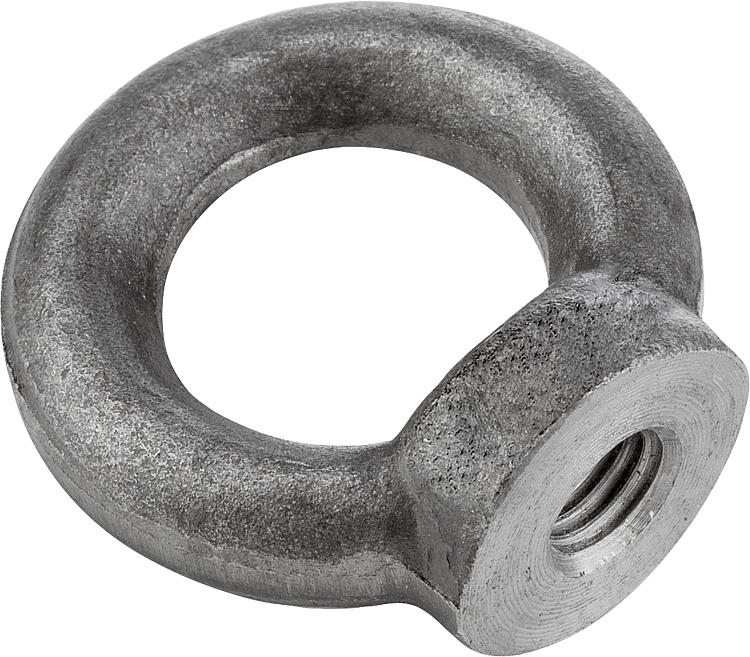

Item description/product images

DescriptionMaterial:

1.1141 steel, 1.4301 stainless steel or 1.4401 stainless steel.

Version:drop forged.Note:For high demand hoisting and carrying tasks in safety-relevant areas (machine construction, load handling equipment, lifting tackle).
The CE mark is impressed into the ring bolt.
F2 permissible load under max. 45° per ring bolt.On request:Certificate of conformity.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet B0513 Ring nuts DIN 582

286 kB

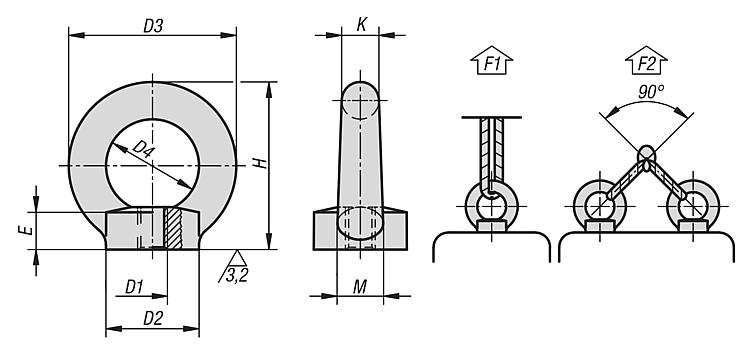

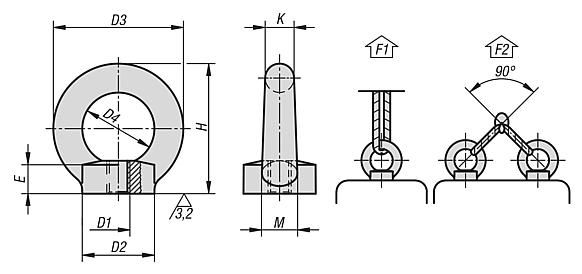

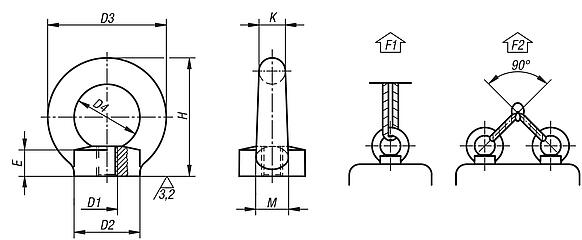

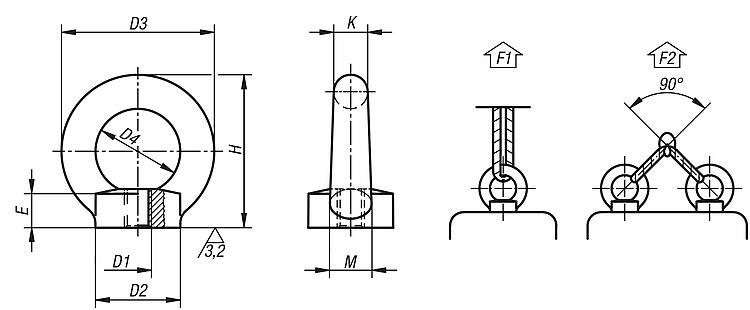

Drawings

Item selection/filter

Order No.	Main material	Surface finish body	Steel code	D1	D2	D3	D4	E	H	K	M	F1 max. kN	F2 max. kN	Price
B0513.08	steel	bright	1.1141	M8	20	36	20	8,5	36	8	10	1,4	0,95	1.04 €
B0513.10	steel	bright	1.1141	M10	25	45	25	10	45	10	12	2,3	1,7	1.53 €
B0513.12	steel	bright	1.1141	M12	30	54	30	11	53	12	14	3,4	2,4	1.79 €
B0513.16	steel	bright	1.1141	M16	35	63	35	13	62	14	16	7	5	2.89 €
B0513.20	steel	bright	1.1141	M20	40	72	40	16	71	16	19	12	8,3	4.08 €
B0513.24	steel	bright	1.1141	M24	50	90	50	20	90	20	24	18	12,7	7.70 €
B0513.008	steel	galvanised	1.1141	M8	20	36	20	8,5	36	8	10	1,4	0,95	1.04 €
B0513.010	steel	galvanised	1.1141	M10	25	45	25	10	45	10	12	2,3	1,7	1.53 €
B0513.012	steel	galvanised	1.1141	M12	30	54	30	11	53	12	14	3,4	2,4	1.79 €
B0513.016	steel	galvanised	1.1141	M16	35	63	35	13	62	14	16	7	5	2.89 €
B0513.020	steel	galvanised	1.1141	M20	40	72	40	16	71	16	19	12	8,3	4.08 €
B0513.024	steel	galvanised	1.1141	M24	50	90	50	20	90	20	24	18	12,7	7.70 €
B0513.108	stainless steel	-	1.4301	M8	20	36	20	8,5	36	8	10	1,4	0,95	3.72 €
B0513.110	stainless steel	-	1.4301	M10	25	45	25	10	45	10	12	2,3	1,7	5.09 €
B0513.112	stainless steel	-	1.4301	M12	30	54	30	11	53	12	14	3,4	2,4	7.73 €
B0513.116	stainless steel	-	1.4301	M16	35	63	35	13	62	14	16	7	5	10.93 €
B0513.120	stainless steel	-	1.4301	M20	40	72	40	16	71	16	19	12	8,3	15.81 €
B0513.124	stainless steel	-	1.4301	M24	50	90	50	20	90	20	24	18	12,7	31.45 €
B0513.208	stainless steel	-	1.4401	M8	20	36	20	8,5	36	8	10	1,4	0,95	4.99 €
B0513.210	stainless steel	-	1.4401	M10	25	45	25	10	45	10	12	2,3	1,7	6.83 €
B0513.212	stainless steel	-	1.4401	M12	30	54	30	11	53	12	14	3,4	2,4	11.18 €
B0513.216	stainless steel	-	1.4401	M16	35	63	35	13	62	14	16	7	5	17.99 €
B0513.220	stainless steel	-	1.4401	M20	40	72	40	16	71	16	19	12	8,3	23.22 €
B0513.224	stainless steel	-	1.4401	M24	50	90	50	20	90	20	24	18	12,7	48.31 €
