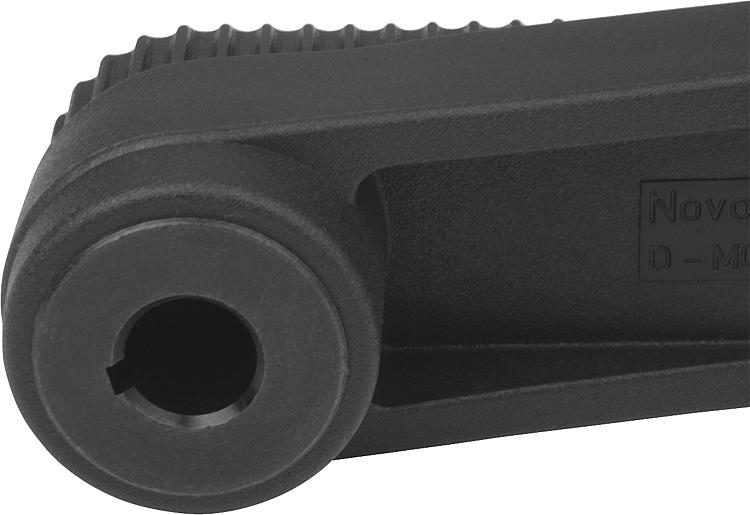

Crank handles with revolving cylinder grip, locating hole with slot
 B0341_PBMN

Crank handles with revolving cylinder grip, locating hole with...

 go back

Item description/product images
DescriptionMaterial:

Crank and grip thermoplastic.
Hub and grip axle steel, strength class 5.8, or stainless steel 1.4404.

Version:Thermoplastic black grey.
Steel parts black oxidised.
Stainless steel bright.Note:The hub cover and the revolving cylinder grip are supplied unassembled.
To assemble, screw the grip into the tapped hole provided.
The crank handles can be secured to the shaft by cross-pinning or by parallel key together with a DIN 6912 cap screw and DIN 7349 washer.
Versions with transverse bore are secured using the ISO 4027 (DIN 914) grub screw.Drawing reference:
1) Position of the transverse bore to the keyway is offset by 90°.
Special features:
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
Datasheet B0341_PBMN Crank handles with revolving cylinder grip, locating hole with slot 469 kB

Drawings

Crank handles with revolving cylinder grip, locating hole with slot
Crank handles with revolving cylinder grip, locating hole with slot

Item selection/filter
Order No.

Version 1Version 2Component
material		AB3DD2D7HH1H2H3H4LL2TCADAcc.PriceOrder
B0341.310802reamed hole with slotwithout transverse holesteel802248-85,849,128,513-10412,79 13.62 €
B0341.311003reamed hole with slotwithout transverse holesteel8032410-85,849,128,513-10412,711,4 13.62 €
B0341.321003reamed hole with slotwithout transverse holesteel10032910-107,161,435,513-12915,711,4 14.98 €
B0341.321204reamed hole with slotwithout transverse holesteel10042912-107,161,435,513-12915,713,8 14.98 €
B0341.331204reamed hole with slotwithout transverse holesteel12543612-139,582,54418,5-16119,513,8 19.72 €
B0341.331405reamed hole with slotwithout transverse holesteel12553614-139,582,54418,5-16119,516,3 19.72 €
B0341.0310802reamed hole with slotwithout transverse holestainless steel802248-85,849,128,513-10412,79 19.08 €
B0341.0311003reamed hole with slotwithout transverse holestainless steel8032410-85,849,128,513-10412,711,4 19.08 €
B0341.0321003reamed hole with slotwithout transverse holestainless steel10032910-107,161,435,513-12915,711,4 20.96 €
B0341.0321204reamed hole with slotwithout transverse holestainless steel10042912-107,161,435,513-12915,713,8 20.96 €
B0341.0331204reamed hole with slotwithout transverse holestainless steel12543612-139,582,54418,5-16119,513,8 27.61 €
B0341.0331405reamed hole with slotwithout transverse holestainless steel12553614-139,582,54418,5-16119,516,3 27.61 €
B0341.03108026reamed hole with slotwith transverse borestainless steel802248M685,849,128,5137,510412,79 25.13 €
B0341.03110036reamed hole with slotwith transverse borestainless steel8032410M685,849,128,5137,510412,711,4 25.13 €
B0341.03210036reamed hole with slotwith transverse borestainless steel10032910M6107,161,435,5137,512915,711,4 31.79 €
B0341.03212046reamed hole with slotwith transverse borestainless steel10042912M6107,161,435,5137,512915,713,8 31.79 €
B0341.03312046reamed hole with slotwith transverse borestainless steel12543612M6139,582,54418,57,516119,513,8 23.25 €
B0341.03314056reamed hole with slotwith transverse borestainless steel12553614M6139,582,54418,57,516119,516,3 23.25 €
