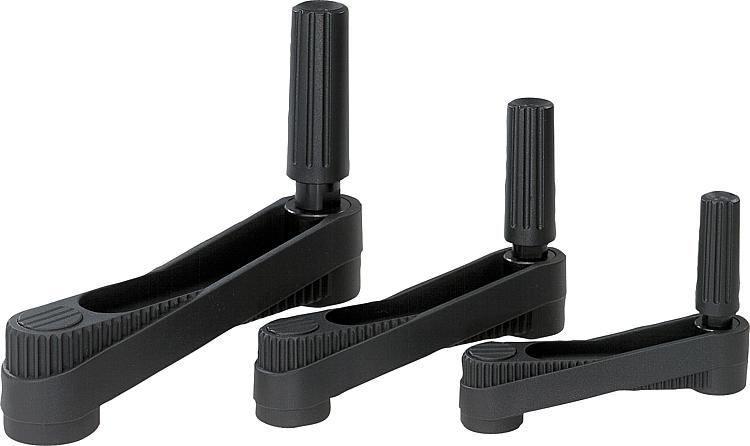

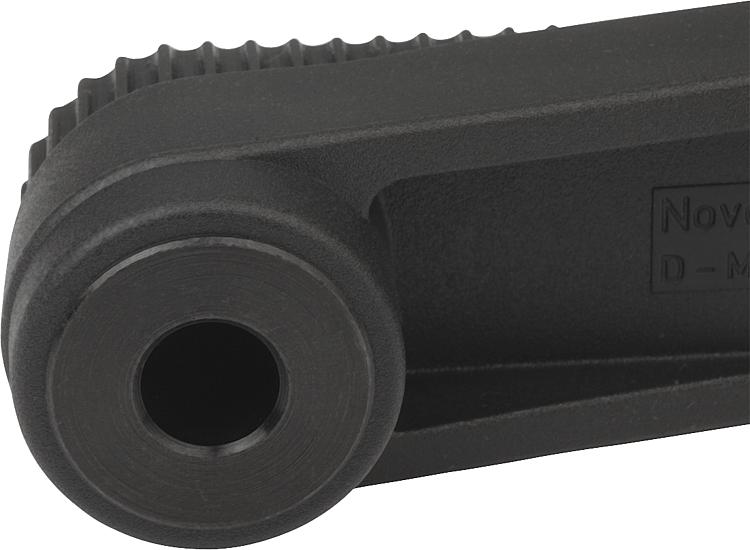

        Crank handles with revolving cylinder grip, locating hole without slot

Item description/product images

DescriptionMaterial:

Crank and grip thermoplastic.
Hub and grip axle steel, strength class 5.8, or stainless steel 1.4404.

Version:Thermoplastic black grey.
Steel parts black oxidised.
Stainless steel bright.Note:The hub cover and the revolving cylinder grip are supplied unassembled.
To assemble, screw the grip into the tapped hole provided.
Versions with transverse bore are secured using the ISO 4027 (DIN 914) grub screw.
Drawing reference:

1) Position of the transverse bore to the keyway is offset by 90°.

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet B0341_PBON Crank handles with revolving cylinder grip, locating hole without slot

398 kB

Drawings

Item selection/filter

Order No.	Version 1	Version 2	Component material	A	D	D2	D7	H	H1	H2	H3	H4	L	L2	Price
B0341.3108	reamed hole	without transverse hole	steel	80	24	8	-	85,8	49,1	28,5	13	-	104	12,7	11.30 €
B0341.3110	reamed hole	without transverse hole	steel	80	24	10	-	85,8	49,1	28,5	13	-	104	12,7	11.30 €
B0341.3210	reamed hole	without transverse hole	steel	100	29	10	-	107,1	61,4	35,5	13	-	129	15,7	12.63 €
B0341.3212	reamed hole	without transverse hole	steel	100	29	12	-	107,1	61,4	35,5	13	-	129	15,7	12.63 €
B0341.3312	reamed hole	without transverse hole	steel	125	36	12	-	139,5	82,5	44	18,5	-	161	19,5	17.40 €
B0341.3314	reamed hole	without transverse hole	steel	125	36	14	-	139,5	82,5	44	18,5	-	161	19,5	17.40 €
B0341.03108	reamed hole	without transverse hole	stainless steel	80	24	8	-	85,8	49,1	28,5	13	-	104	12,7	15.81 €
B0341.03110	reamed hole	without transverse hole	stainless steel	80	24	10	-	85,8	49,1	28,5	13	-	104	12,7	15.81 €
B0341.03210	reamed hole	without transverse hole	stainless steel	100	29	10	-	107,1	61,4	35,5	13	-	129	15,7	17.67 €
B0341.03212	reamed hole	without transverse hole	stainless steel	100	29	12	-	107,1	61,4	35,5	13	-	129	15,7	17.67 €
B0341.03312	reamed hole	without transverse hole	stainless steel	125	36	12	-	139,5	82,5	44	18,5	-	161	19,5	24.35 €
B0341.03314	reamed hole	without transverse hole	stainless steel	125	36	14	-	139,5	82,5	44	18,5	-	161	19,5	24.35 €
B0341.031086	reamed hole	with transverse bore	stainless steel	80	24	8	M6	85,8	49,1	28,5	13	7,5	104	12,7	19.99 €
B0341.031106	reamed hole	with transverse bore	stainless steel	80	24	10	M6	85,8	49,1	28,5	13	7,5	104	12,7	19.99 €
B0341.032106	reamed hole	with transverse bore	stainless steel	100	29	10	M6	107,1	61,4	35,5	13	7,5	129	15,7	21.86 €
B0341.032126	reamed hole	with transverse bore	stainless steel	100	29	12	M6	107,1	61,4	35,5	13	7,5	129	15,7	21.86 €
B0341.033126	reamed hole	with transverse bore	stainless steel	125	36	12	M6	139,5	82,5	44	18,5	7,5	161	19,5	28.52 €
B0341.033146	reamed hole	with transverse bore	stainless steel	125	36	14	M6	139,5	82,5	44	18,5	7,5	161	19,5	28.52 €
