Machine handles, fixed, DIN 39 Form E, stainless steel
B0336

Machine handles, fixed, DIN 39 Form E, stainless steel

go back

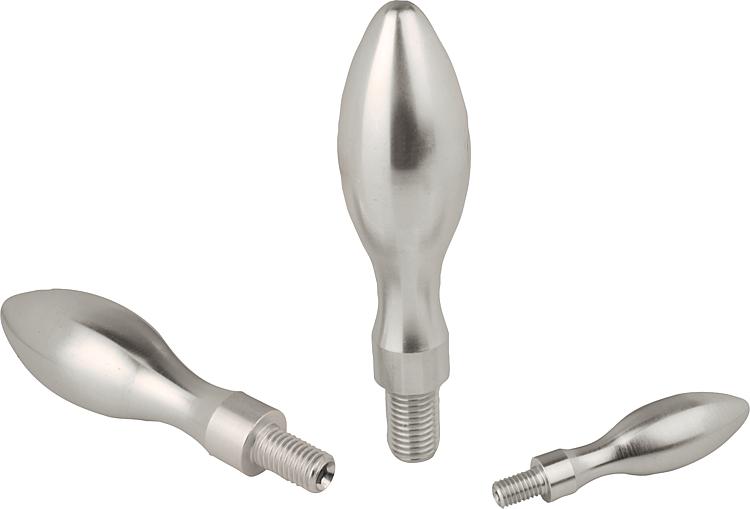

Item description/product images

DescriptionMaterial:

1.4305 or 1.4401 stainless steel.

Version:Electropolished.Note:1.4401 stainless steel, similar to DIN 39.
Grip suitable for DIN 950 handwheels.
Special features:
Stainless steelRoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet B0336 Machine handles fixed DIN 39 Form E, stainless steel 141 kB

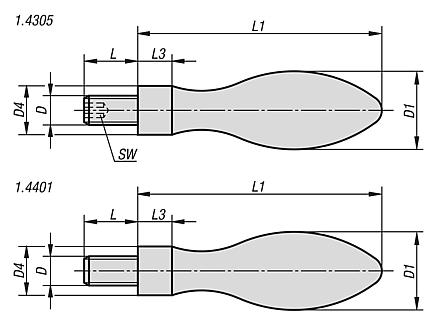

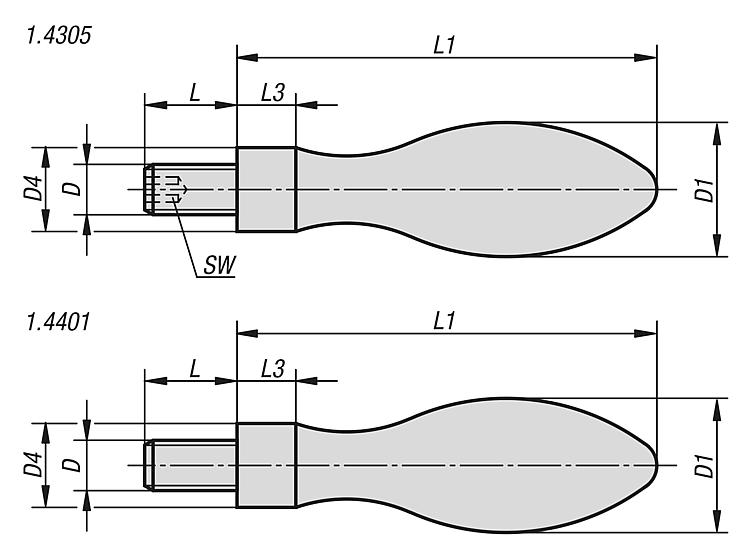

Drawings

Machine handles, fixed, DIN 39 Form E, stainless steel

Item selection/filter

Order No.Steel
code
Version 2DD1

D4LL1L3SWCADAcc.PriceOrder
B0336.06160501.4305with hexagon socketM616101150736.65 €
B0336.08200641.4305with hexagon socketM820131364848.45 €
B0336.10250801.4305with hexagon socketM102516148010511.38 €
B0336.106160501.4401without hexagon socketM6161113515,1-9.61 €
B0336.108200641.4401without hexagon socketM8211414678,75-10.56 €
B0336.110250801.4401without hexagon socketM10251618819,75-15.33 €
