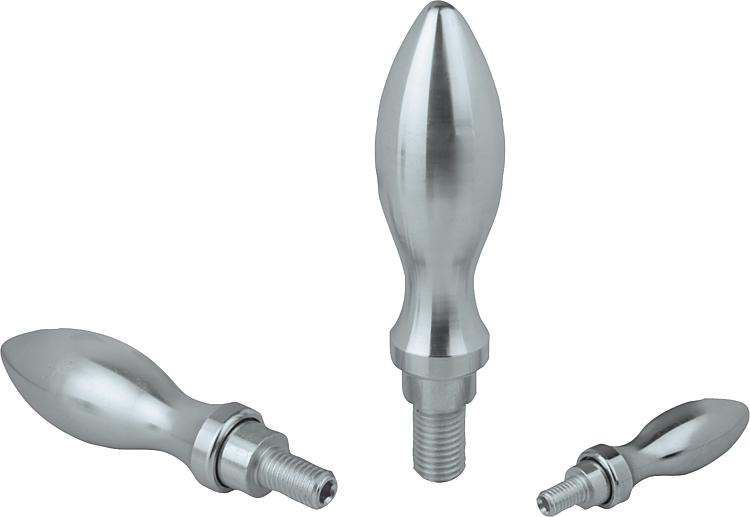

B0338Machine handles revolving similar to DIN 98 Form E, steel |
go back |
|
Item description/product images |
|
|

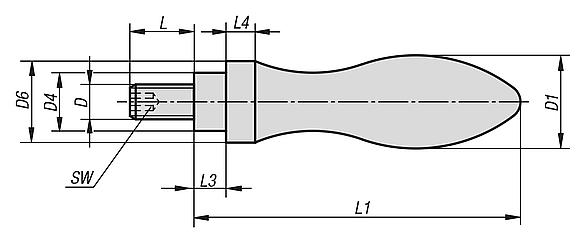

DescriptionMaterial:Grip and screw steel.Version:Grip and axle part trivalent blue passivated.Note:The handles with D1=25 mm and 32 mm have a thread length L2 that is shorter than the length specified in DIN 98. These machine handles are suitable for DIN 950 handwheels.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
