B0468Oil level sight glasses, aluminium |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Housing in aluminium.
Reflector in aluminium or white plastic.
Polyamide viewing lens.Version:Transparent viewing lens,
temperature-resistant with oil up to 100 °C,
with water up to 70 °C.

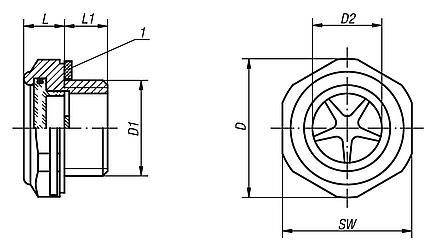

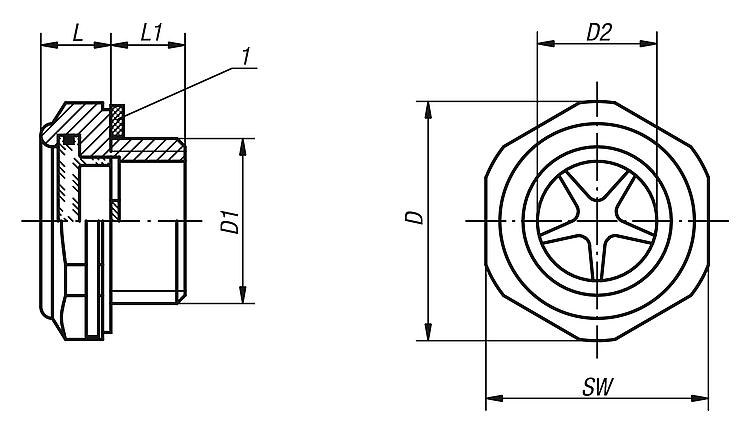

Flat seal, asbestos-free.Note:The G3/8" and M18x1.5 versions have a white plastic reflector.Drawing reference: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Order No.
| D | D1 | D2 | L | L1 | SW | Tightening
torque
max. Nm | Pressure load
max. bar | CAD | Acc. | Price | Order |
|---|
| B0468.20014 | 20 | G1/4 | 11 | 8 | 8 | 17 | 4 | 10 |  | | 1.53 € | | | B0468.24038 | 24,1 | G3/8 | 12,7 | 9,5 | 9 | 22 | 10 | 10 | | | 2.22 € | | | B0468.29012 | 29,7 | G1/2 | 15 | 10 | 9 | 27 | 15 | 10 | | | 2.99 € | | | B0468.36034 | 35,2 | G3/4 | 21,9 | 10 | 11 | 32 | 22 | 10 | | | 3.90 € | | | B0468.42100 | 44,1 | G1 | 25,1 | 11 | 11 | 40 | - | 10 | | | 8.27 € | | | B0468.52114 | 55 | G1 1/4 | 34 | 13,5 | 12 | 50 | - | 10 | | | 8.62 € | | | B0468.241815 | 24,5 | M18X1,5 | 13 | 10 | 9 | 22 | 12 | 10 | | | 2.76 € | | | B0468.292215 | 29,5 | M22X1,5 | 16 | 10 | 9 | 27 | 15 | 10 | | | 3.35 € | |
