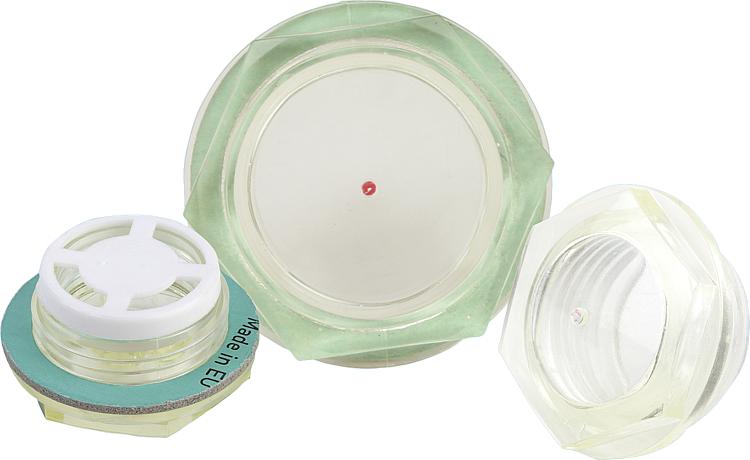

B0465Oil level sight glasses |
go back |
|
|
DescriptionMaterial:Housing in thermoplastic polyamide.
Plastic reflector.Version:Housing, transparent, high mechanical stability, non-ageing, temperature resistant with oil up to 90 °C, resistant to solvents but not to alcohol or frost.
Flat seal, asbestos-free.

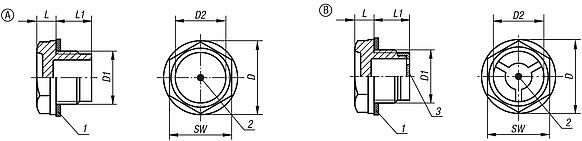

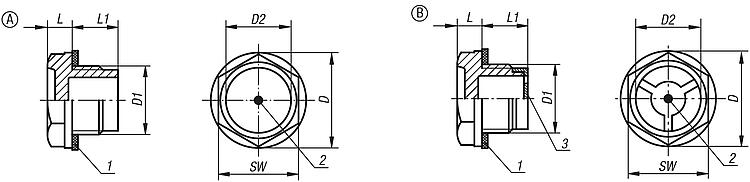

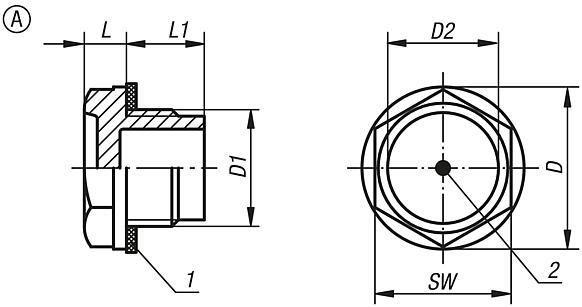

Reflector white.On request:Rubber gasket (NBR).Drawing reference:Form A: without reflector

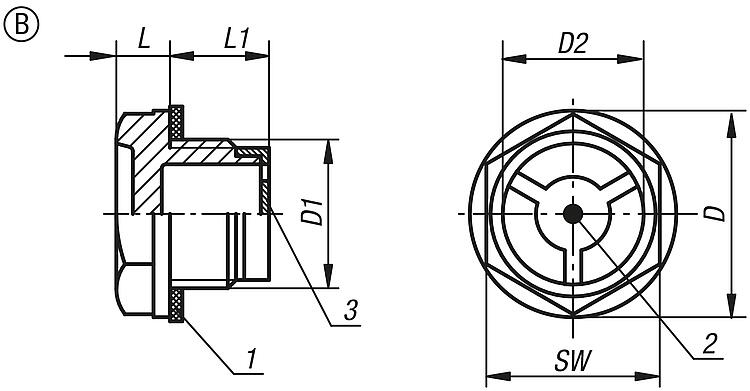

Form B: with reflector
1) flat seal
2) check mark
3) reflector DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Drawings (total overview) |
| | | | -
- G1/4
- G3/8
- G1/2
- G3/4
- G1
- G1 1/4
- G1 1/2
- G2
- M14X1,5
- M16X1,5
- M18X1,5
- M20X1,5
- M22X1,5
- M26X1,5
- M27X1,5
- M40X1,5
| | | | | | | | | Reset |
|---|
| Order No. | Form | D | D1 | D2 | L | L1 | SW | Tightening
torque
max. Nm | CAD | Acc. | Price | Order |
|---|
| B0465.120014 | A | 20,5 | G1/4 | 12 | 8 | 8,5 | 17 | 5 |  | | 0.71 € | | | B0465.122038 | A | 22 | G3/8 | 12 | 6,5 | 12 | 18 | 7 | | | 0.80 € | | | B0465.128012 | A | 28 | G1/2 | 16 | 8 | 12 | 24 | 15 | | | 0.88 € | | | B0465.135034 | A | 36 | G3/4 | 21 | 8,5 | 13,5 | 30 | 20 | | | 1.18 € | | | B0465.143100 | A | 42 | G1 | 30 | 9 | 16 | 36 | 25 | | | 1.63 € | | | B0465.151114 | A | 51 | G1 1/4 | 32 | 10 | 17 | 42 | - | | | 3.34 € | | | B0465.158112 | A | 58 | G1 1/2 | 39 | 10 | 21 | 50 | - | | | 4.04 € | | | B0465.174200 | A | 74 | G2 | 48 | 12 | 20 | 64 | - | | | 5.72 € | | | B0465.1201415 | A | 20 | M14X1,5 | 12 | 7,5 | 8 | 17 | 5 | | | 0.71 € | | | B0465.1221615 | A | 22 | M16X1,5 | 12 | 6,5 | 12,5 | 18 | 7 | | | 0.80 € | | | B0465.1251815 | A | 25,5 | M18X1,5 | 14 | 6 | 12,5 | 21 | 10 | | | 0.80 € | | | B0465.1282015 | A | 28 | M20X1,5 | 16 | 7,5 | 12 | 24 | 15 | | | 0.88 € | | | B0465.1282215 | A | 28 | M22X1,5 | 16 | 7,5 | 12,5 | 24 | 15 | | | 0.91 € | | | B0465.1362615 | A | 36 | M26X1,5 | 21 | 8,5 | 13,5 | 30 | 20 | | | 1.50 € | | | B0465.1362715 | A | 36 | M27X1,5 | 21 | 8,5 | 13,5 | 30 | 20 | | | 1.59 € | | | B0465.1514015 | A | 51 | M40X1,5 | 32 | 10 | 17 | 42 | - | | | 3.44 € | |
|
| | | | -
- G3/8
- G1/2
- G3/4
- G1
- G1 1/4
- G1 1/2
- G2
- M16X1,5
- M18X1,5
- M20X1,5
- M22X1,5
- M26X1,5
- M27X1,5
- M40X1,5
| | | | | | | | | Reset |
|---|
Order No.
| Form | D | D1 | D2 | L | L1 | SW | Tightening
torque
max. Nm | CAD | Acc. | Price | Order |
|---|
| B0465.222038 | B | 22 | G3/8 | 12 | 6,5 | 12 | 18 | 7 | | | 1.00 € | | | B0465.228012 | B | 28 | G1/2 | 16 | 8 | 12 | 24 | 15 | | | 1.14 € | | | B0465.235034 | B | 36 | G3/4 | 21 | 8,5 | 13,5 | 30 | 20 | | | 1.52 € | | | B0465.243100 | B | 42 | G1 | 30 | 9 | 16 | 36 | 25 | | | 2.11 € | | | B0465.251114 | B | 51 | G1 1/4 | 32 | 10 | 17 | 42 | - | | | 3.38 € | | | B0465.258112 | B | 58 | G1 1/2 | 39 | 10 | 21 | 50 | - | | | 4.26 € | | | B0465.274200 | B | 74 | G2 | 48 | 12 | 20 | 64 | - | | | 5.79 € | | | B0465.2221615 | B | 22 | M16X1,5 | 12 | 6,5 | 12,5 | 18 | 7 | | | 1.00 € | | | B0465.2251815 | B | 25,5 | M18X1,5 | 14 | 6 | 12,5 | 21 | 10 | | | 1.01 € | | | B0465.2282015 | B | 28 | M20X1,5 | 16 | 7,5 | 12 | 24 | 15 | | | 1.14 € | | | B0465.2282215 | B | 28 | M22X1,5 | 16 | 7,5 | 12,5 | 24 | 15 | | | 1.17 € | | | B0465.2362615 | B | 36 | M26X1,5 | 21 | 8,5 | 13,5 | 30 | 20 | | | 1.83 € | | | B0465.2362715 | B | 36 | M27X1,5 | 21 | 8,5 | 13,5 | 30 | 20 | | | 1.91 € | | | B0465.2514015 | B | 51 | M40X1,5 | 32 | 10 | 17 | 42 | - | | | 3.52 € | |
|
