B0472Screw plugs hex head with collar DIN 910 |
go back |
|

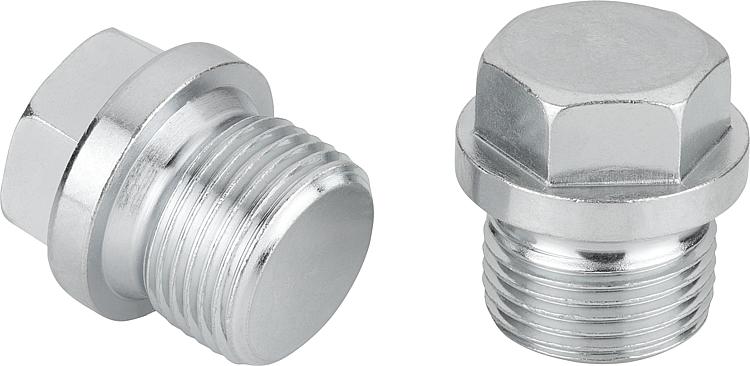

Item description/product images |
|
|
DescriptionMaterial:Steel.Version:Electro zinc-plated.Note:Screw plugs with collar and hexagonal head for plugging holes with parallel threads. DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

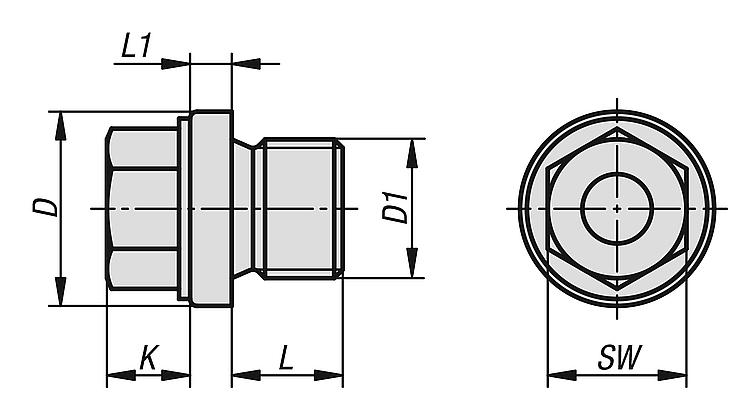

| Order No. | D
| D1 | K | L | L1 | SW | CAD | Acc. | Price | Order |
|---|
| B0472.101010 | 14 | M10X1 | 6 | 8 | 3 | 10 |  | | 0.67 € | | | B0472.101215 | 17 | M12X1,5 | 6 | 12 | 3 | 13 | | | 0.88 € | | | B0472.101415 | 19 | M14X1,5 | 6 | 12 | 3 | 13 | | | 0.91 € | | | B0472.101615 | 21 | M16X1,5 | 6 | 12 | 3 | 17 | | | 1.13 € | | | B0472.101815 | 23 | M18X1,5 | 8 | 12 | 4 | 17 | | | 1.44 € | | | B0472.102015 | 25 | M20X1,5 | 8 | 14 | 4 | 19 | | | 1.57 € | | | B0472.102215 | 27 | M22X1,5 | 8 | 14 | 4 | 19 | | | 1.78 € | | | B0472.102415 | 29 | M24X1,5 | 9 | 14 | 4 | 22 | | | 2.52 € | | | B0472.102615 | 31 | M26X1,5 | 10 | 16 | 4 | 24 | | | 2.94 € | | | B0472.102720 | 32 | M27X2 | 10 | 16 | 4 | 24 | | | 3.04 € | | | B0472.103015 | 36 | M30X1,5 | 10 | 16 | 4 | 24 | | | 3.51 € | | | B0472.103320 | 39 | M33X2 | 11 | 16 | 5 | 27 | | | 4.36 € | | | B0472.103615 | 42 | M36X1,5 | 11 | 16 | 5 | 27 | | | 6.67 € | | | B0472.104215 | 49 | M42X1,5 | 12 | 16 | 5 | 30 | | | 8.21 € | | | B0472.104220 | 49 | M42X2 | 12 | 16 | 5 | 30 | | | 8.21 € | | | B0472.104815 | 55 | M48X1,5 | 12 | 16 | 5 | 30 | | | 11.67 € | | | B0472.104820 | 55 | M48X2 | 12 | 16 | 5 | 30 | | | 11.68 € | | | B0472.10018 | 14 | G1/8 | 6 | 8 | 3 | 10 | | | 0.65 € | | | B0472.10014 | 18 | G1/4 | 6 | 12 | 3 | 13 | | | 0.91 € | | | B0472.10038 | 22 | G3/8 | 6 | 12 | 3 | 17 | | | 1.07 € | | | B0472.10012 | 26 | G1/2 | 8 | 14 | 4 | 19 | | | 1.62 € | | | B0472.10034 | 32 | G3/4 | 10 | 16 | 4 | 24 | | | 2.82 € | | | B0472.10100 | 39 | G1 | 11 | 16 | 5 | 27 | | | 3.69 € | | | B0472.10114 | 49 | G1 1/4 | 12 | 16 | 5 | 30 | | | 8.15 € | | | B0472.10112 | 55 | G1 1/2 | 12 | 16 | 5 | 30 | | | 10.58 € | |
