Screw plugs with hexagon socket DIN 906, tapered thread
B0470

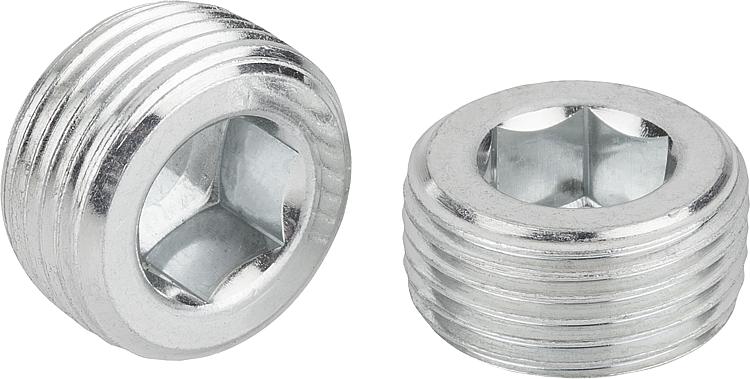

Screw plugs with hexagon socket DIN 906, tapered thread

go back

Item description/product images

DescriptionMaterial:

Steel or stainless steel 1.4571.

Version:Steel electro zinc-plated.
Stainless steel bright.
Note:Screw plugs with hexagon socket and tapered threads are suitable for plugging holes with parallel threads.
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet B0470 Screw plugs with hexagon socket DIN 906, tapered thread 207 kB

Drawings

Screw plugs with hexagon socket DIN 906, tapered thread

Overview of items (compressed)

Item selection/filter
Order No.
steel
Order No.
stainless steel
D1

LSWFilter
B0470.100810B0470.200810M8x184
B0470.101010B0470.201010M10X185
B0470.101215B0470.201215M12X1,5106
B0470.101415B0470.201415M14X1,5107
B0470.101615B0470.201615M16X1,5108
B0470.101015B0470.201815M18X1,5108
B0470.102015B0470.202015M20X1,51010
B0470.102215B0470.202215M22X1,51010
B0470.102415B0470.202415M24X1,51212
B0470.102615-M26X1,51212
B0470.103015-M30X1,51217
B0470.103615-M36X1,51519
B0470.104215-M42X1,51822
B0470.104815-M48X1,52024
B0470.10018B0470.2001815R1/885
B0470.10014B0470.2001415R1/4107
B0470.10038B0470.2003815R3/8108
B0470.10012B0470.2001215R1/21010
B0470.10034B0470.2003415R3/41212
B0470.10100B0470.2010015R11217
B0470.10114-R1 1/41822
B0470.10112-R1 1/22024
