Item description/product images |
|
|
DescriptionMaterial:Steel.Version:Case-hardened and black oxidised.Note:This is a quick-action side clamp where workpieces are clamped by rotating a cam wheel which exerts pressure on the swivel jaw, simultaneously producing a positive down force.

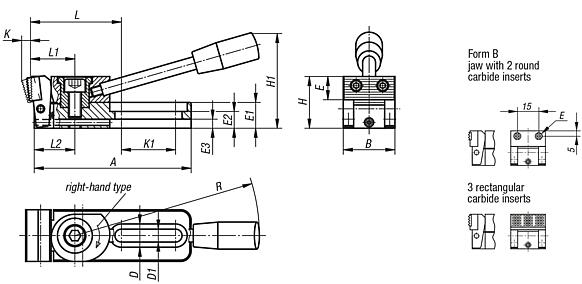

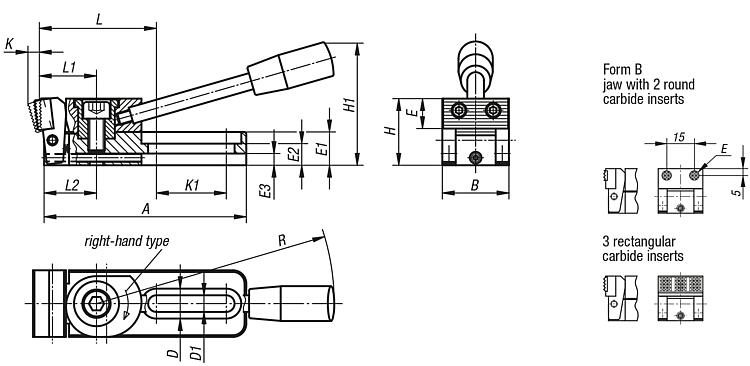

Using the stop screw and centring bush (see diagram), the side clamp can be mounted and positioned on a modular grid system.
The versions B0403.006010, B0403.006015, B0403.006030 and B0403.006035 have 2 round carbide inserts.Clamping force:B0403.006... = 3800 N
B0403.010... = 7200 N DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Form | Version 1 | A | B | D | D1 | E | E1 | E2 | E3 | H | H1 | K | K1 | L | L1 | L2 | R | F=Retaining
force N | CAD | Acc. | Price | Order |
|---|
| B0403.006010 | B | right | 78 | 25 | 12 | 6,2 | ø8 | 12 | 8 | 4 | 24 | 45 | 3,5 | 26 | 46,5 | 22 | 20 | 110 | 3800 |  | | 134.50 € | | | B0403.010010 | B | right | 121,5 | 40 | 18 | 10,2 | 12,7 | 20 | 13 | 7 | 39 | 74 | 5,5 | 42 | 73 | 35 | 31,5 | 143 | 7200 | | | 220.26 € | | | B0403.006030 | B | left | 78 | 25 | 12 | 6,2 | ø8 | 12 | 8 | 4 | 24 | 45 | 3,5 | 26 | 46,5 | 22 | 20 | 110 | 3800 | | | 134.50 € | | | B0403.010030 | B | left | 121,5 | 40 | 18 | 10,2 | 12,7 | 20 | 13 | 7 | 39 | 74 | 5,5 | 42 | 73 | 35 | 31,5 | 143 | 7200 | | | 220.26 € | |
