B0325Handwheels with revolving cylinder grip |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Handwheel body and grip thermoplastic.
Hub and grip axle steel, strength class 5.8, or stainless steel 1.4404. Version:Thermoplastic black grey.
Steel parts black oxidised.
Stainless steel bright.Note:The hub cover and the revolving cylinder grip are supplied unassembled. To assemble, screw the grip into the tapped hole.
The handwheels can be secured to a shaft using a transverse pin or by parallel key connection together with a DIN 6912 cap screw and a DIN 7349 washer.
Versions with transverse bore are secured using the ISO 4027 (DIN 914) grub screw.
Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

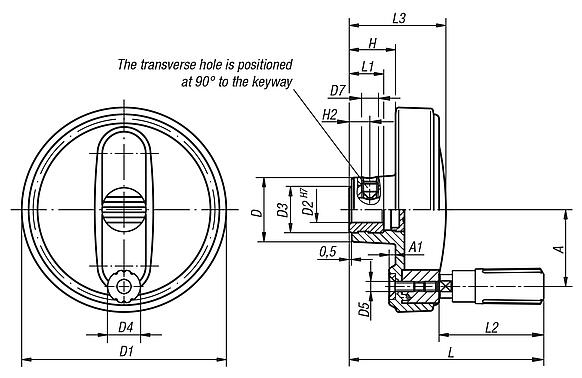

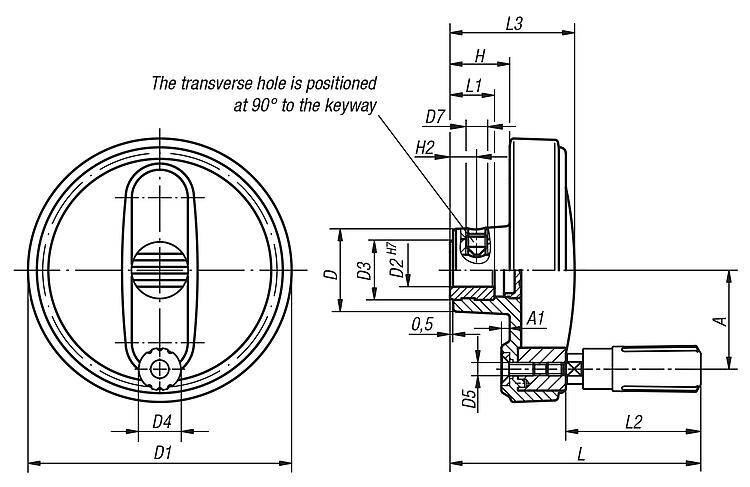

| Order No. | Version 1 | Version 2 | Component
material | D
| D1 | D2 | D3 | D4 | D5 | D7 | A | A1 | H | H2 | L | L1 | L2 | L3 | B3
| T
| CAD | Acc. | Price | Order |
|---|
| B0325.108008 | reamed hole | without transverse hole | steel | 25 | 80 | 8H7 | 19 | 14 | M4 | - | 30 | 2,5 | 17,6 | - | 74,6 | 13 | 40 | 36,7 | - | - |  | | 10.96 € | | | B0325.108010 | reamed hole | without transverse hole | steel | 25 | 80 | 10H7 | 19 | 14 | M4 | - | 30 | 2,5 | 17,6 | - | 74,6 | 13 | 40 | 36,7 | - | - | | | 10.96 € | | | B0325.108012 | reamed hole | without transverse hole | steel | 25 | 80 | 12H7 | 19 | 14 | M4 | - | 30 | 2,5 | 17,6 | - | 74,6 | 13 | 40 | 36,7 | - | - | | | 10.96 € | | | B0325.210010 | reamed hole | without transverse hole | steel | 28 | 100 | 10H7 | 19 | 16 | M5 | - | 38 | 3 | 20,1 | - | 90,2 | 13 | 49,1 | 43,5 | - | - | | | 13.23 € | | | B0325.210012 | reamed hole | without transverse hole | steel | 28 | 100 | 12H7 | 19 | 16 | M5 | - | 38 | 3 | 20,1 | - | 90,2 | 13 | 49,1 | 43,5 | - | - | | | 13.23 € | | | B0325.312512 | reamed hole | without transverse hole | steel | 35 | 125 | 12H7 | 25 | 20 | M6 | - | 47,5 | 4 | 23,3 | - | 110,7 | 18,5 | 61,4 | 52,1 | - | - | | | 17.92 € | | | B0325.312514 | reamed hole | without transverse hole | steel | 35 | 125 | 14H7 | 25 | 20 | M6 | - | 47,5 | 4 | 23,3 | - | 110,7 | 18,5 | 61,4 | 52,1 | - | - | | | 17.92 € | | | B0325.312516 | reamed hole | without transverse hole | steel | 35 | 125 | 16H7 | 25 | 20 | M6 | - | 47,5 | 4 | 23,3 | - | 110,7 | 18,5 | 61,4 | 52,1 | - | - | | | 17.92 € | | | B0325.416014 | reamed hole | without transverse hole | steel | 45 | 160 | 14H7 | 25 | 25 | M8 | - | 62 | 5,6 | 28 | - | 143 | 18,5 | 82,5 | 63,8 | - | - | | | 20.45 € | | | B0325.416016 | reamed hole | without transverse hole | steel | 45 | 160 | 16H7 | 25 | 25 | M8 | - | 62 | 5,6 | 28 | - | 143 | 18,5 | 82,5 | 63,8 | - | - | | | 20.45 € | | | B0325.10800802 | reamed hole with slot | without transverse hole | steel | 25 | 80 | 8H7 | 19 | 14 | M4 | - | 30 | 2,5 | 17,6 | - | 74,6 | 13 | 40 | 36,7 | 2 | 9 | | | 13.62 € | | | B0325.10801003 | reamed hole with slot | without transverse hole | steel | 25 | 80 | 10H7 | 19 | 14 | M4 | - | 30 | 2,5 | 17,6 | - | 74,6 | 13 | 40 | 36,7 | 3 | 11,4 | | | 13.62 € | | | B0325.10801204 | reamed hole with slot | without transverse hole | steel | 25 | 80 | 12H7 | 19 | 14 | M4 | - | 30 | 2,5 | 17,6 | - | 74,6 | 13 | 40 | 36,7 | 4 | 13,8 | | | 13.62 € | | | B0325.21001003 | reamed hole with slot | without transverse hole | steel | 28 | 100 | 10H7 | 19 | 16 | M5 | - | 38 | 3 | 20,1 | - | 90,2 | 13 | 49,1 | 43,5 | 3 | 11,4 | | | 15.88 € | | | B0325.21001204 | reamed hole with slot | without transverse hole | steel | 28 | 100 | 12H7 | 19 | 16 | M5 | - | 38 | 3 | 20,1 | - | 90,2 | 13 | 49,1 | 43,5 | 4 | 13,8 | | | 15.88 € | | | B0325.31251204 | reamed hole with slot | without transverse hole | steel | 35 | 125 | 12H7 | 25 | 20 | M6 | - | 47,5 | 4 | 23,3 | - | 110,7 | 18,5 | 61,4 | 52,1 | 4 | 13,8 | | | 20.60 € | | | B0325.31251405 | reamed hole with slot | without transverse hole | steel | 35 | 125 | 14H7 | 25 | 20 | M6 | - | 47,5 | 4 | 23,3 | - | 110,7 | 18,5 | 61,4 | 52,1 | 5 | 16,3 | | | 20.60 € | | | B0325.31251605 | reamed hole with slot | without transverse hole | steel | 35 | 125 | 16H7 | 25 | 20 | M6 | - | 47,5 | 4 | 23,3 | - | 110,7 | 18,5 | 61,4 | 52,1 | 5 | 18,3 | | | 20.60 € | | | B0325.41601405 | reamed hole with slot | without transverse hole | steel | 45 | 160 | 14H7 | 25 | 25 | M8 | - | 62 | 5,6 | 28 | - | 143 | 18,5 | 82,5 | 63,8 | 5 | 16,3 | | | 23.10 € | | | B0325.41601605 | reamed hole with slot | without transverse hole | steel | 45 | 160 | 16H7 | 25 | 25 | M8 | - | 62 | 5,6 | 28 | - | 143 | 18,5 | 82,5 | 63,8 | 5 | 18,3 | | | 23.10 € | | | B0325.1080086 | reamed hole | with transverse bore | steel | 25 | 80 | 8H7 | 19 | 14 | M4 | M6 | 30 | 2,5 | 17,6 | 7,5 | 74,6 | 13 | 40 | 36,7 | - | - | | | 14.32 € | | | B0325.1080106 | reamed hole | with transverse bore | steel | 25 | 80 | 10H7 | 19 | 14 | M4 | M6 | 30 | 2,5 | 17,6 | 7,5 | 74,6 | 13 | 40 | 36,7 | - | - | | | 14.32 € | | | B0325.1080126 | reamed hole | with transverse bore | steel | 25 | 80 | 12H7 | 19 | 14 | M4 | M6 | 30 | 2,5 | 17,6 | 7,5 | 74,6 | 13 | 40 | 36,7 | - | - | | | 14.32 € | | | B0325.2100106 | reamed hole | with transverse bore | steel | 28 | 100 | 10H7 | 19 | 16 | M5 | M6 | 38 | 3 | 20,1 | 7,5 | 90,2 | 13 | 49,1 | 43,5 | - | - | | | 16.58 € | | | B0325.2100126 | reamed hole | with transverse bore | steel | 28 | 100 | 12H7 | 19 | 16 | M5 | M6 | 38 | 3 | 20,1 | 7,5 | 90,2 | 13 | 49,1 | 43,5 | - | - | | | 16.58 € | | | B0325.3125126 | reamed hole | with transverse bore | steel | 35 | 125 | 12H7 | 25 | 20 | M6 | M6 | 47,5 | 4 | 23,3 | 7,5 | 110,7 | 18,5 | 61,4 | 52,1 | - | - | | | 21.26 € | | | B0325.3125146 | reamed hole | with transverse bore | steel | 35 | 125 | 14H7 | 25 | 20 | M6 | M6 | 47,5 | 4 | 23,3 | 7,5 | 110,7 | 18,5 | 61,4 | 52,1 | - | - | | | 21.26 € | | | B0325.3125166 | reamed hole | with transverse bore | steel | 35 | 125 | 16H7 | 25 | 20 | M6 | M6 | 47,5 | 4 | 23,3 | 7,5 | 110,7 | 18,5 | 61,4 | 52,1 | - | - | | | 21.26 € | | | B0325.4160146 | reamed hole | with transverse bore | steel | 45 | 160 | 14H7 | 25 | 25 | M8 | M6 | 62 | 5,6 | 28 | 7,5 | 143 | 18,5 | 82,5 | 63,8 | - | - | | | 23.81 € | | | B0325.4160166 | reamed hole | with transverse bore | steel | 45 | 160 | 16H7 | 25 | 25 | M8 | M6 | 62 | 5,6 | 28 | 7,5 | 143 | 18,5 | 82,5 | 63,8 | - | - | | | 23.81 € | | | B0325.108008026 | reamed hole with slot | with transverse bore | steel | 25 | 80 | 8H7 | 19 | 14 | M4 | M6 | 30 | 2,5 | 17,6 | 7,5 | 74,6 | 13 | 40 | 36,7 | 2 | 9 | | | 16.96 € | | | B0325.108010036 | reamed hole with slot | with transverse bore | steel | 25 | 80 | 10H7 | 19 | 14 | M4 | M6 | 30 | 2,5 | 17,6 | 7,5 | 74,6 | 13 | 40 | 36,7 | 3 | 11,4 | | | 16.96 € | | | B0325.108012046 | reamed hole with slot | with transverse bore | steel | 25 | 80 | 12H7 | 19 | 14 | M4 | M6 | 30 | 2,5 | 17,6 | 7,5 | 74,6 | 13 | 40 | 36,7 | 4 | 13,8 | | | 16.96 € | | | B0325.210010036 | reamed hole with slot | with transverse bore | steel | 28 | 100 | 10H7 | 19 | 16 | M5 | M6 | 38 | 3 | 20,1 | 7,5 | 90,2 | 13 | 49,1 | 43,5 | 3 | 11,4 | | | 19.22 € | | | B0325.210012046 | reamed hole with slot | with transverse bore | steel | 28 | 100 | 12H7 | 19 | 16 | M5 | M6 | 38 | 3 | 20,1 | 7,5 | 90,2 | 13 | 49,1 | 43,5 | 4 | 13,8 | | | 19.22 € | | | B0325.312512046 | reamed hole with slot | with transverse bore | steel | 35 | 125 | 12H7 | 25 | 20 | M6 | M6 | 47,5 | 4 | 23,3 | 7,5 | 110,7 | 18,5 | 61,4 | 52,1 | 4 | 13,8 | | | 23.93 € | | | B0325.312514056 | reamed hole with slot | with transverse bore | steel | 35 | 125 | 14H7 | 25 | 20 | M6 | M6 | 47,5 | 4 | 23,3 | 7,5 | 110,7 | 18,5 | 61,4 | 52,1 | 5 | 16,3 | | | 23.93 € | | | B0325.312516056 | reamed hole with slot | with transverse bore | steel | 35 | 125 | 16H7 | 25 | 20 | M6 | M6 | 47,5 | 4 | 23,3 | 7,5 | 110,7 | 18,5 | 61,4 | 52,1 | 5 | 18,3 | | | 23.93 € | | | B0325.416014056 | reamed hole with slot | with transverse bore | steel | 45 | 160 | 14H7 | 25 | 25 | M8 | M6 | 62 | 5,6 | 28 | 7,5 | 143 | 18,5 | 82,5 | 63,8 | 5 | 16,3 | | | 26.45 € | | | B0325.416016056 | reamed hole with slot | with transverse bore | steel | 45 | 160 | 16H7 | 25 | 25 | M8 | M6 | 62 | 5,6 | 28 | 7,5 | 143 | 18,5 | 82,5 | 63,8 | 5 | 18,3 | | | 26.45 € | | | B0325.0108008 | reamed hole | without transverse hole | stainless steel | 25 | 80 | 8H7 | 19 | 14 | M4 | - | 30 | 2,5 | 17,6 | - | 74,6 | 13 | 40 | 36,7 | - | - | | | 20.28 € | | | B0325.0108010 | reamed hole | without transverse hole | stainless steel | 25 | 80 | 10H7 | 19 | 14 | M4 | - | 30 | 2,5 | 17,6 | - | 74,6 | 13 | 40 | 36,7 | - | - | | | 20.28 € | | | B0325.0108012 | reamed hole | without transverse hole | stainless steel | 25 | 80 | 12H7 | 19 | 14 | M4 | - | 30 | 2,5 | 17,6 | - | 74,6 | 13 | 40 | 36,7 | - | - | | | 20.28 € | | | B0325.0210010 | reamed hole | without transverse hole | stainless steel | 28 | 100 | 10H7 | 19 | 16 | M5 | - | 38 | 3 | 20,1 | - | 90,2 | 13 | 49,1 | 43,5 | - | - | | | 24.47 € | | | B0325.0210012 | reamed hole | without transverse hole | stainless steel | 28 | 100 | 12H7 | 19 | 16 | M5 | - | 38 | 3 | 20,1 | - | 90,2 | 13 | 49,1 | 43,5 | - | - | | | 24.47 € | | | B0325.0312512 | reamed hole | without transverse hole | stainless steel | 35 | 125 | 12H7 | 25 | 20 | M6 | - | 47,5 | 4 | 23,3 | - | 110,7 | 18,5 | 61,4 | 52,1 | - | - | | | 33.17 € | | | B0325.0312514 | reamed hole | without transverse hole | stainless steel | 35 | 125 | 14H7 | 25 | 20 | M6 | - | 47,5 | 4 | 23,3 | - | 110,7 | 18,5 | 61,4 | 52,1 | - | - | | | 33.17 € | | | B0325.0312516 | reamed hole | without transverse hole | stainless steel | 35 | 125 | 16H7 | 25 | 20 | M6 | - | 47,5 | 4 | 23,3 | - | 110,7 | 18,5 | 61,4 | 52,1 | - | - | | | 33.17 € | | | B0325.0416014 | reamed hole | without transverse hole | stainless steel | 45 | 160 | 14H7 | 25 | 25 | M8 | - | 62 | 5,6 | 28 | - | 143 | 18,5 | 82,5 | 63,8 | - | - | | | 37.83 € | | | B0325.0416016 | reamed hole | without transverse hole | stainless steel | 45 | 160 | 16H7 | 25 | 25 | M8 | - | 62 | 5,6 | 28 | - | 143 | 18,5 | 82,5 | 63,8 | - | - | | | 37.83 € | | | B0325.010800802 | reamed hole with slot | without transverse hole | stainless steel | 25 | 80 | 8H7 | 19 | 14 | M4 | - | 30 | 2,5 | 17,6 | - | 74,6 | 13 | 40 | 36,7 | 2 | 9 | | | 23.15 € | | | B0325.010801003 | reamed hole with slot | without transverse hole | stainless steel | 25 | 80 | 10H7 | 19 | 14 | M4 | - | 30 | 2,5 | 17,6 | - | 74,6 | 13 | 40 | 36,7 | 3 | 11,4 | | | 23.15 € | | | B0325.010801204 | reamed hole with slot | without transverse hole | stainless steel | 25 | 80 | 12H7 | 19 | 14 | M4 | - | 30 | 2,5 | 17,6 | - | 74,6 | 13 | 40 | 36,7 | 4 | 13,8 | | | 23.15 € | | | B0325.021001003 | reamed hole with slot | without transverse hole | stainless steel | 28 | 100 | 10H7 | 19 | 16 | M5 | - | 38 | 3 | 20,1 | - | 90,2 | 13 | 49,1 | 43,5 | 3 | 11,4 | | | 27.00 € | | | B0325.021001204 | reamed hole with slot | without transverse hole | stainless steel | 28 | 100 | 12H7 | 19 | 16 | M5 | - | 38 | 3 | 20,1 | - | 90,2 | 13 | 49,1 | 43,5 | 4 | 13,8 | | | 27.00 € | | | B0325.031251204 | reamed hole with slot | without transverse hole | stainless steel | 35 | 125 | 12H7 | 25 | 20 | M6 | - | 47,5 | 4 | 23,3 | - | 110,7 | 18,5 | 61,4 | 52,1 | 4 | 13,8 | | | 35.02 € | | | B0325.031251405 | reamed hole with slot | without transverse hole | stainless steel | 35 | 125 | 14H7 | 25 | 20 | M6 | - | 47,5 | 4 | 23,3 | - | 110,7 | 18,5 | 61,4 | 52,1 | 5 | 16,3 | | | 35.02 € | | | B0325.031251605 | reamed hole with slot | without transverse hole | stainless steel | 35 | 125 | 16H7 | 25 | 20 | M6 | - | 47,5 | 4 | 23,3 | - | 110,7 | 18,5 | 61,4 | 52,1 | 5 | 18,3 | | | 35.02 € | | | B0325.041601405 | reamed hole with slot | without transverse hole | stainless steel | 45 | 160 | 14H7 | 25 | 25 | M8 | - | 62 | 5,6 | 28 | - | 143 | 18,5 | 82,5 | 63,8 | 5 | 16,3 | | | 39.26 € | | | B0325.041601605 | reamed hole with slot | without transverse hole | stainless steel | 45 | 160 | 16H7 | 25 | 25 | M8 | - | 62 | 5,6 | 28 | - | 143 | 18,5 | 82,5 | 63,8 | 5 | 18,3 | | | 39.26 € | | | B0325.01080086 | reamed hole | with transverse bore | stainless steel | 25 | 80 | 8H7 | 19 | 14 | M4 | M6 | 30 | 2,5 | 17,6 | 7,5 | 74,6 | 13 | 40 | 36,7 | - | - | | | 22.19 € | | | B0325.01080106 | reamed hole | with transverse bore | stainless steel | 25 | 80 | 10H7 | 19 | 14 | M4 | M6 | 30 | 2,5 | 17,6 | 7,5 | 74,6 | 13 | 40 | 36,7 | - | - | | | 22.19 € | | | B0325.01080126 | reamed hole | with transverse bore | stainless steel | 25 | 80 | 12H7 | 19 | 14 | M4 | M6 | 30 | 2,5 | 17,6 | 7,5 | 74,6 | 13 | 40 | 36,7 | - | - | | | 22.19 € | | | B0325.02100106 | reamed hole | with transverse bore | stainless steel | 28 | 100 | 10H7 | 19 | 16 | M5 | M6 | 38 | 3 | 20,1 | 7,5 | 90,2 | 13 | 49,1 | 43,5 | - | - | | | 25.70 € | | | B0325.02100126 | reamed hole | with transverse bore | stainless steel | 28 | 100 | 12H7 | 19 | 16 | M5 | M6 | 38 | 3 | 20,1 | 7,5 | 90,2 | 13 | 49,1 | 43,5 | - | - | | | 25.70 € | | | B0325.03125126 | reamed hole | with transverse bore | stainless steel | 35 | 125 | 12H7 | 25 | 20 | M6 | M6 | 47,5 | 4 | 23,3 | 7,5 | 110,7 | 18,5 | 61,4 | 52,1 | - | - | | | 32.95 € | | | B0325.03125146 | reamed hole | with transverse bore | stainless steel | 35 | 125 | 14H7 | 25 | 20 | M6 | M6 | 47,5 | 4 | 23,3 | 7,5 | 110,7 | 18,5 | 61,4 | 52,1 | - | - | | | 32.95 € | | | B0325.03125166 | reamed hole | with transverse bore | stainless steel | 35 | 125 | 16H7 | 25 | 20 | M6 | M6 | 47,5 | 4 | 23,3 | 7,5 | 110,7 | 18,5 | 61,4 | 52,1 | - | - | | | 32.95 € | | | B0325.04160146 | reamed hole | with transverse bore | stainless steel | 45 | 160 | 14H7 | 25 | 25 | M8 | M6 | 62 | 5,6 | 28 | 7,5 | 143 | 18,5 | 82,5 | 63,8 | - | - | | | 36.92 € | | | B0325.04160166 | reamed hole | with transverse bore | stainless steel | 45 | 160 | 16H7 | 25 | 25 | M8 | M6 | 62 | 5,6 | 28 | 7,5 | 143 | 18,5 | 82,5 | 63,8 | - | - | | | 36.92 € | | | B0325.0108008026 | reamed hole with slot | with transverse bore | stainless steel | 25 | 80 | 8H7 | 19 | 14 | M4 | M6 | 30 | 2,5 | 17,6 | 7,5 | 74,6 | 13 | 40 | 36,7 | 2 | 9 | | | 25.45 € | | | B0325.0108010036 | reamed hole with slot | with transverse bore | stainless steel | 25 | 80 | 10H7 | 19 | 14 | M4 | M6 | 30 | 2,5 | 17,6 | 7,5 | 74,6 | 13 | 40 | 36,7 | 3 | 11,4 | | | 25.45 € | | | B0325.0108012046 | reamed hole with slot | with transverse bore | stainless steel | 25 | 80 | 12H7 | 19 | 14 | M4 | M6 | 30 | 2,5 | 17,6 | 7,5 | 74,6 | 13 | 40 | 36,7 | 4 | 13,8 | | | 25.45 € | | | B0325.0210010036 | reamed hole with slot | with transverse bore | stainless steel | 28 | 100 | 10H7 | 19 | 16 | M5 | M6 | 38 | 3 | 20,1 | 7,5 | 90,2 | 13 | 49,1 | 43,5 | 3 | 11,4 | | | 27.87 € | | | B0325.0210012046 | reamed hole with slot | with transverse bore | stainless steel | 28 | 100 | 12H7 | 19 | 16 | M5 | M6 | 38 | 3 | 20,1 | 7,5 | 90,2 | 13 | 49,1 | 43,5 | 4 | 13,8 | | | 27.87 € | | | B0325.0312512046 | reamed hole with slot | with transverse bore | stainless steel | 35 | 125 | 12H7 | 25 | 20 | M6 | M6 | 47,5 | 4 | 23,3 | 7,5 | 110,7 | 18,5 | 61,4 | 52,1 | 4 | 13,8 | | | 34.70 € | | | B0325.0312514056 | reamed hole with slot | with transverse bore | stainless steel | 35 | 125 | 14H7 | 25 | 20 | M6 | M6 | 47,5 | 4 | 23,3 | 7,5 | 110,7 | 18,5 | 61,4 | 52,1 | 5 | 16,3 | | | 34.70 € | | | B0325.0312516056 | reamed hole with slot | with transverse bore | stainless steel | 35 | 125 | 16H7 | 25 | 20 | M6 | M6 | 47,5 | 4 | 23,3 | 7,5 | 110,7 | 18,5 | 61,4 | 52,1 | 5 | 18,3 | | | 34.70 € | | | B0325.0416014056 | reamed hole with slot | with transverse bore | stainless steel | 45 | 160 | 14H7 | 25 | 25 | M8 | M6 | 62 | 5,6 | 28 | 7,5 | 143 | 18,5 | 82,5 | 63,8 | 5 | 16,3 | | | 39.69 € | | | B0325.0416016056 | reamed hole with slot | with transverse bore | stainless steel | 45 | 160 | 16H7 | 25 | 25 | M8 | M6 | 62 | 5,6 | 28 | 7,5 | 143 | 18,5 | 82,5 | 63,8 | 5 | 18,3 | | | 39.69 € | |
