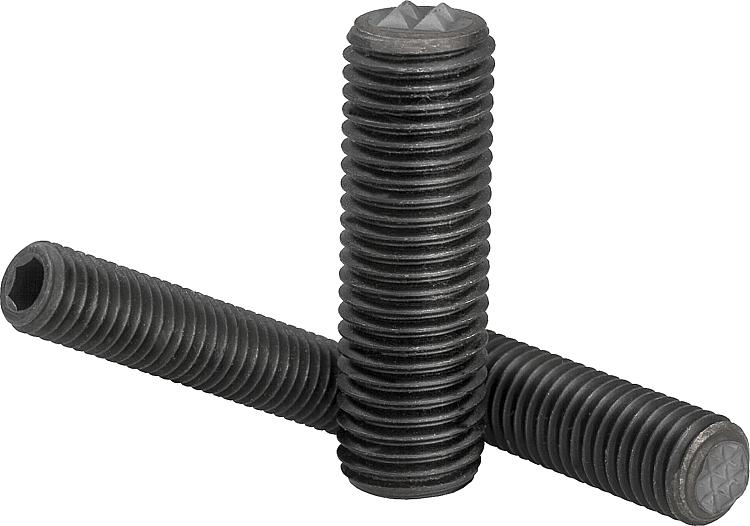

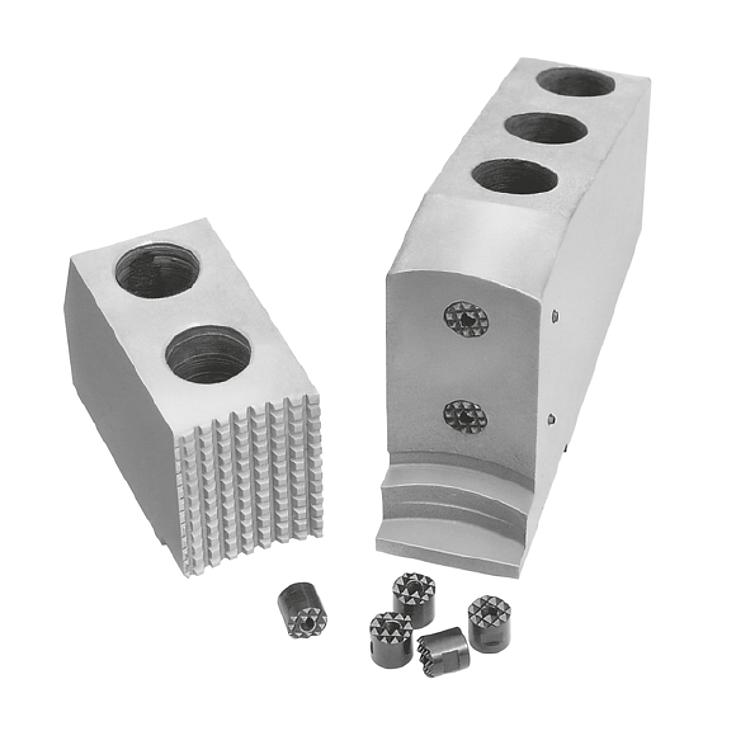

DescriptionMaterial:Hardened tool steel or carbide.Version:Black oxidised.Note:The full thread on the grippers allows exact adjustment to the clamping application.
The carbide tips are soldered in.

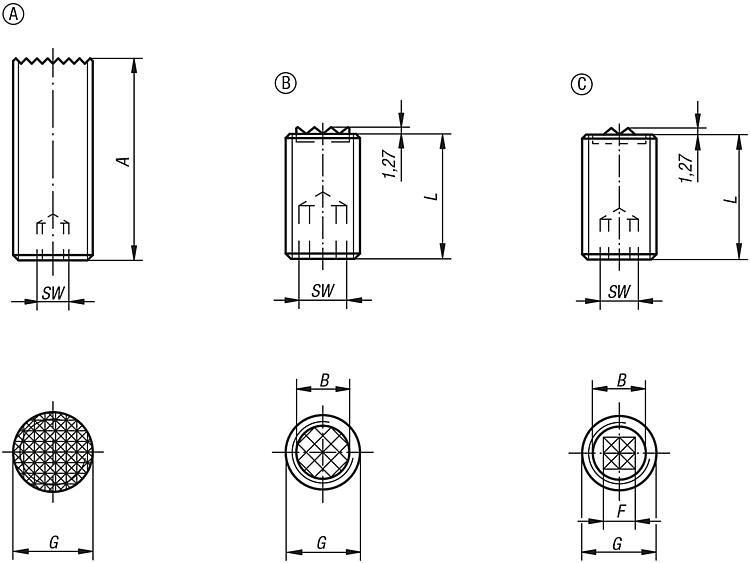

Drawing reference:
Form A: tool steel
Form B: tool steel, carbide diamond grip

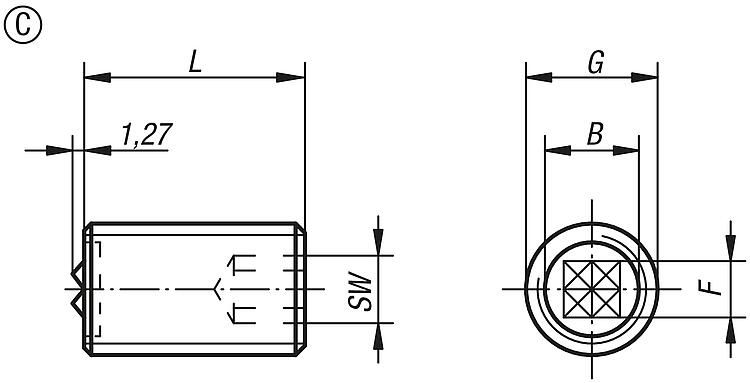

Form C: 4-point carbide insert
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
 Datasheet B0172 Gripper studs 239 kB

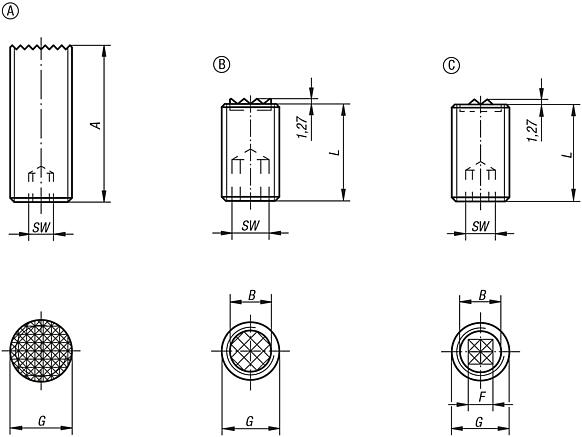

Drawings (total overview)

Gripper studs

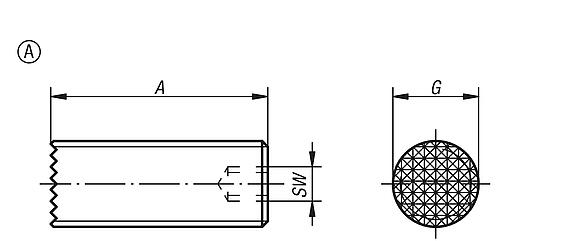

Gripper studs, Form A

More information

Drawings

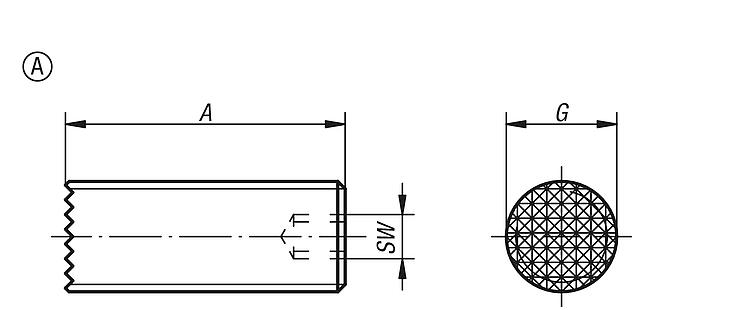

Gripper studs, Form A

Item selection/filter

Order No.Form

AGSWCADAcc.PriceOrder
B0172.4010A40M103 21.59 €
B0172.4012A40M125 21.59 €
B0172.4016A40M166 24.37 €
B0172.4020A40M208 26.81 €

Gripper studs, Form B

More information

Drawings

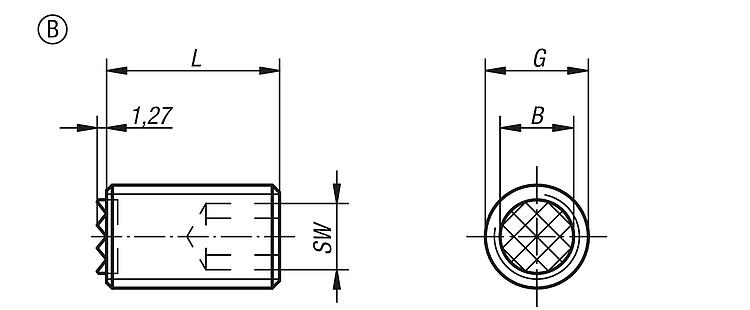

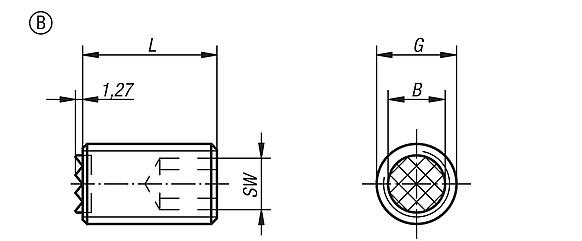

Gripper studs, Form B

Item selection/filter

Order No.Form

LBGSWCADAcc.PriceOrder
B0172.2510B256,4M105 24.04 €
B0172.5010B506,4M105 24.70 €
B0172.2512B257,9M126 24.86 €
B0172.5012B507,9M126 25.70 €
B0172.2516B2511,2M168 26.17 €
B0172.5016B5011,2M168 27.15 €
B0172.2520B2512,7M2010 28.46 €
B0172.5020B5012,7M2010 29.41 €

Gripper studs, Form C

More information

Drawings

Gripper studs, Form C

Item selection/filter

Order No.Form

LBGFSWCADAcc.PriceOrder
B0172.25124C257,9M126,56 23.90 €
B0172.50124C507,9M126,56 24.37 €
B0172.25164C2511,2M1688 25.37 €
B0172.50164C5011,2M1688 26.17 €
B0172.25204C2512,7M20810 26.81 €
B0172.50204C5012,7M20810 27.80 €
