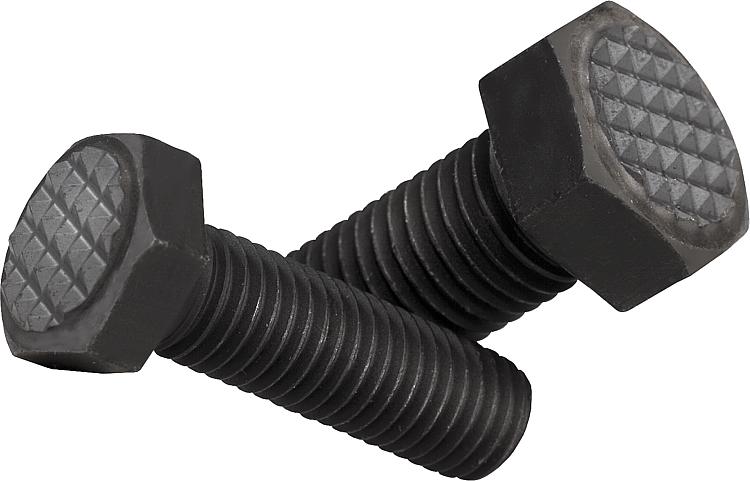

B0170Gripper screws hexagonal |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Hex head screw, grade 10.9.
Serrations carbide, hardness 72-74 HRC.Version:Black oxidised.Note:The serrated carbide tips are soldered in. DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Order No.

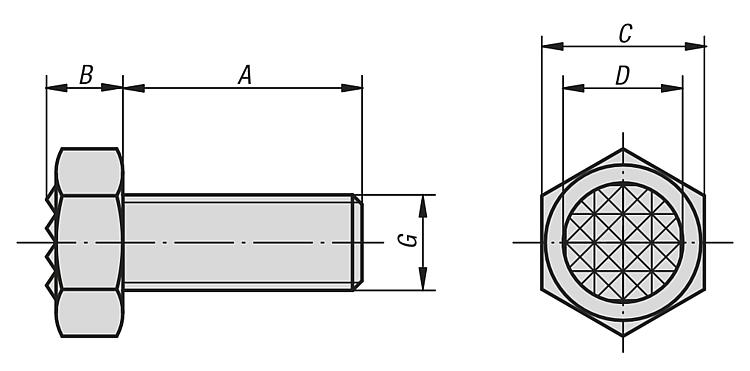

| C | A | B | D | G | Serration | CAD | Acc. | Price | Order |
|---|
| B0170.100612 | 10 | 12 | 5 | 7,9 | M6 | extra fine |  | | 14.00 € | | | B0170.1006 | 10 | 25 | 5 | 7,9 | M6 | extra fine | | | 14.00 € | | | B0170.130812 | 13 | 12 | 6,4 | 9,5 | M8 | fine | | | 14.15 € | | | B0170.130816 | 13 | 16 | 6,4 | 9,5 | M8 | fine | | | 14.37 € | | | B0170.1308 | 13 | 25 | 6,4 | 9,5 | M8 | fine | | | 14.46 € | | | B0170.130830 | 13 | 30 | 6,4 | 9,5 | M8 | fine | | | 15.23 € | | | B0170.130835 | 13 | 35 | 6,4 | 9,5 | M8 | fine | | | 15.23 € | | | B0170.1710140 | 17 | 40 | 7,5 | 12,7 | M10x1,25 | fine | | | 16.15 € | | | B0170.1710125 | 17 | 25 | 7,5 | 12,7 | M10x1,25 | fine | | | 16.15 € | | | B0170.171012 | 17 | 12 | 7,5 | 12,7 | M10 | fine | | | 16.82 € | | | B0170.1710 | 17 | 25 | 7,5 | 12,7 | M10 | fine | | | 16.15 € | | | B0170.17102 | 17 | 40 | 7,5 | 12,7 | M10 | fine | | | 16.82 € | | | B0170.1912 | 19 | 25 | 8,7 | 15,9 | M12 | fine | | | 20.39 € | | | B0170.19122 | 19 | 40 | 8,7 | 15,9 | M12 | fine | | | 21.07 € | | | B0170.2416 | 24 | 35 | 11 | 19 | M16 | fine | | | 26.34 € | | | B0170.24162 | 24 | 50 | 11 | 19 | M16 | fine | | | 27.02 € | | | B0170.3020 | 30 | 40 | 13,7 | 25,4 | M20 | extra fine | | | 43.51 € | | | B0170.30202 | 30 | 60 | 13,7 | 25,4 | M20 | extra fine | | | 45.69 € | |
