B0168Grippers and inserts round, with counterbore |
go back |
|
|
DescriptionMaterial:Form C, F tool steel
Form E, O stainless steel
Form K POMVersion:Form C, F hardened and black oxidised.
Form E, hardened, bright.
Form K white.
Form O with diamond impregnated surface comparable to 100 grade abrasive grit.Note:Grippers and inserts are ideal for use in clamping arms, gripping systems, clamping fixtures, clamping jaws and self-aligning pads. The use of grippers allows the transfer of very high torque values and above average grip, even with hard materials and surface irregularities.
Form O: The abrasive diamond surface is bonded firmly to the base. It is ideally suited to supporting smooth or slippery applications with a minimum of clamping pressure. This allows the diamond particles to get a firm grip on a very small area with minimum damage to the surface.
The diamond surface offers excellent wear resistance.
DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

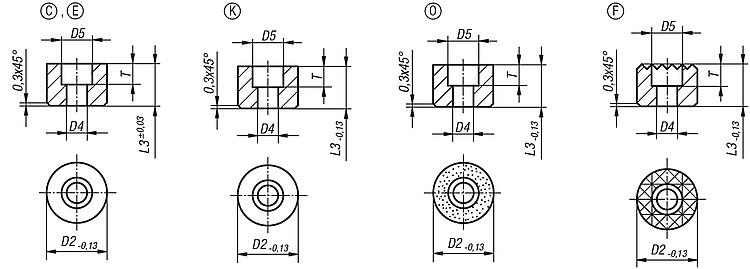

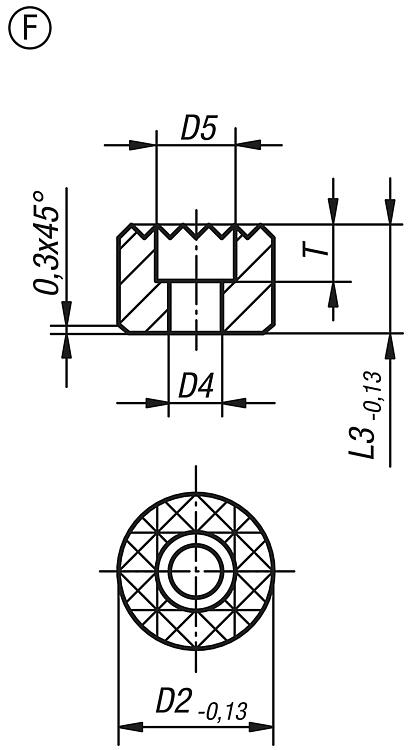

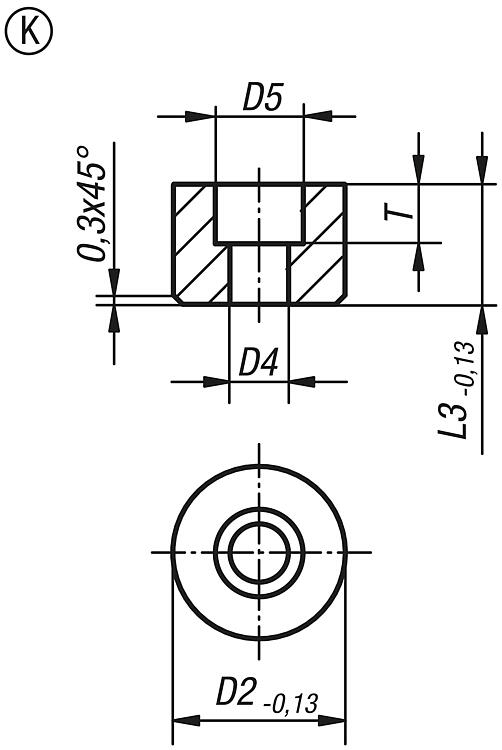

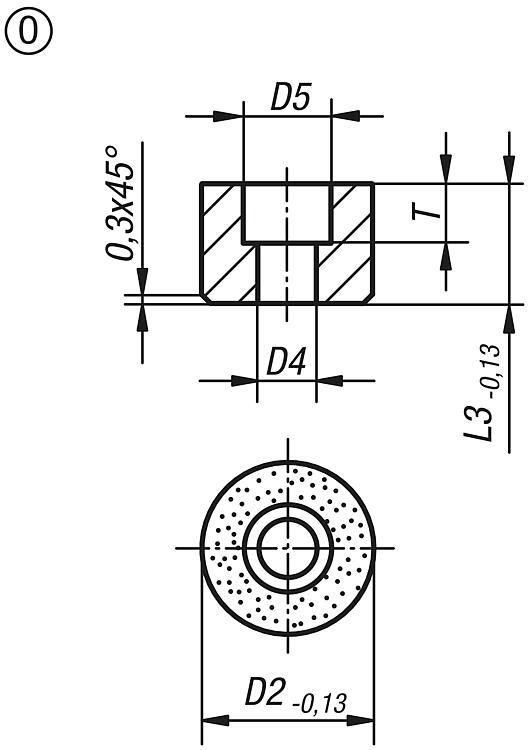

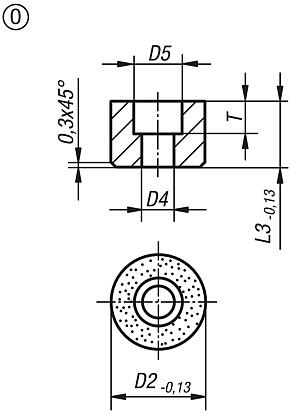

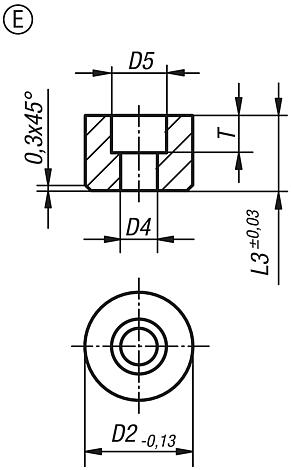

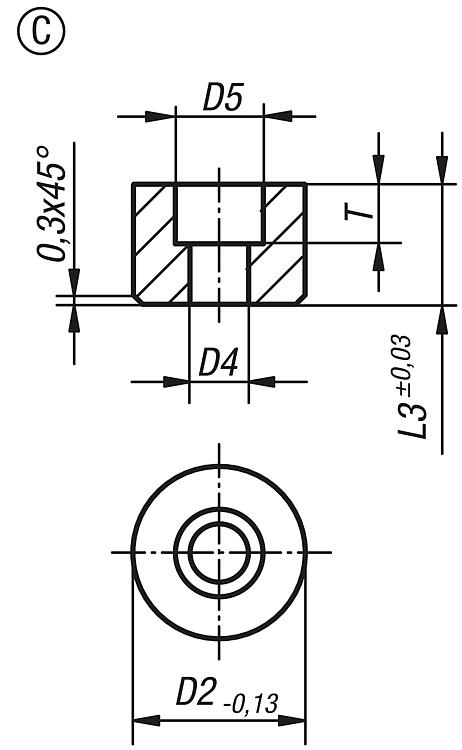

Drawings (total overview) |
| Order No. | Form | D2
| D4 | D5 | L3 | T | CAD | Acc. | Price | Order |
|---|
| B0168.110108 | C | 10 | 3,4 | 6 | 10 | 5 |  | | 6.61 € | | | B0168.110128 | C | 10 | 3,4 | 6 | 12 | 5 | | | 6.72 € | | | B0168.112108 | C | 12 | 4,5 | 9 | 10 | 5,6 | | | 6.99 € | | | B0168.112128 | C | 12 | 4,5 | 9 | 12 | 5,6 | | | 7.09 € | | | B0168.116108 | C | 16 | 5,5 | 11 | 10 | 6,6 | | | 7.59 € | | | B0168.116128 | C | 16 | 5,5 | 11 | 12 | 6,6 | | | 7.69 € | | | B0168.120108 | C | 20 | 6,6 | 11 | 10 | 7,6 | | | 7.01 € | | | B0168.120128 | C | 20 | 6,6 | 11 | 12 | 7,6 | | | 8.48 € | | | B0168.125108 | C | 25 | 6,6 | 11 | 10 | 7,6 | | | 8.82 € | | | B0168.125128 | C | 25 | 6,6 | 11 | 12 | 7,6 | | | 8.98 € | |
|
| Order No. | Form | D2
| D4 | D5 | L3 | T | CAD | Acc. | Price | Order |
|---|
| B0168.110102 | E | 10 | 3,4 | 6 | 10 | 5 | | | 7.27 € | | | B0168.110122 | E | 10 | 3,4 | 6 | 12 | 5 | | | 7.62 € | | | B0168.112102 | E | 12 | 4,5 | 9 | 10 | 5,6 | | | 7.92 € | | | B0168.112122 | E | 12 | 4,5 | 9 | 12 | 5,6 | | | 8.09 € | | | B0168.116102 | E | 16 | 5,5 | 11 | 10 | 6,6 | | | 8.68 € | | | B0168.116122 | E | 16 | 5,5 | 11 | 12 | 6,6 | | | 8.86 € | | | B0168.120102 | E | 20 | 6,6 | 11 | 10 | 7,6 | | | 8.18 € | | | B0168.120122 | E | 20 | 6,6 | 11 | 12 | 7,6 | | | 9.89 € | | | B0168.125102 | E | 25 | 6,6 | 11 | 10 | 7,6 | | | 10.35 € | | | B0168.125122 | E | 25 | 6,6 | 11 | 12 | 7,6 | | | 10.66 € | |
|
| Order No. | Form | D2
| D4 | D5 | L3 | T | CAD | Acc. | Price | Order |
|---|
| B0168.110109 | K | 10 | 3,4 | 6 | 10 | 5 | | | 6.34 € | | | B0168.110129 | K | 10 | 3,4 | 6 | 12 | 5 | | | 6.41 € | | | B0168.112109 | K | 12 | 4,5 | 9 | 10 | 5,6 | | | 6.67 € | | | B0168.112129 | K | 12 | 4,5 | 9 | 12 | 5,6 | | | 6.76 € | | | B0168.116109 | K | 16 | 5,5 | 11 | 10 | 6,6 | | | 7.37 € | | | B0168.116129 | K | 16 | 5,5 | 11 | 12 | 6,6 | | | 7.47 € | | | B0168.120109 | K | 20 | 6,6 | 11 | 10 | 7,6 | | | 8.20 € | | | B0168.120129 | K | 20 | 6,6 | 11 | 12 | 7,6 | | | 8.29 € | | | B0168.125109 | K | 25 | 6,6 | 11 | 10 | 7,6 | | | 8.65 € | | | B0168.125129 | K | 25 | 6,6 | 11 | 12 | 7,6 | | | 8.65 € | |
|
| Order No. | Form | D2
| D4 | D5 | L3 | T | CAD | Acc. | Price | Order |
|---|
| B0168.110105 | O | 10 | 3,4 | 6 | 10 | 5 | | | 12.46 € | | | B0168.110125 | O | 10 | 3,4 | 6 | 12 | 5 | | | 12.89 € | | | B0168.112105 | O | 12 | 4,5 | 8 | 10 | 5,6 | | | 13.92 € | | | B0168.112125 | O | 12 | 4,5 | 8 | 12 | 5,6 | | | 14.06 € | | | B0168.116105 | O | 16 | 5,5 | 11 | 10 | 6,6 | | | 18.23 € | | | B0168.116125 | O | 16 | 5,5 | 11 | 12 | 6,6 | | | 18.45 € | | | B0168.120105 | O | 20 | 6,6 | 11 | 10 | 7,6 | | | 18.24 € | | | B0168.120125 | O | 20 | 6,6 | 11 | 12 | 7,6 | | | 20.68 € | | | B0168.125105 | O | 25 | 6,6 | 11 | 10 | 7,6 | | | 23.67 € | | | B0168.125125 | O | 25 | 6,6 | 11 | 12 | 7,6 | | | 24.98 € | |
|
| Order No. | Form | D2
| D4 | D5 | L3 | T | CAD | Acc. | Price | Order |
|---|
| B0168.11210 | F | 12 | 4,5 | 8 | 10 | 5,6 | | | 10.54 € | | | B0168.11212 | F | 12 | 4,5 | 8 | 12 | 5,6 | | | 11.05 € | | | B0168.11610 | F | 16 | 4,5 | 8 | 10 | 5,6 | | | 14.48 € | | | B0168.11612 | F | 16 | 4,5 | 8 | 12 | 5,6 | | | 14.84 € | | | B0168.12010 | F | 20 | 5,5 | 10 | 10 | 6,6 | | | 16.07 € | | | B0168.12012 | F | 20 | 5,5 | 10 | 12 | 6,6 | | | 16.55 € | | | B0168.12510 | F | 25 | 6,6 | 11 | 10 | 7,6 | | | 19.53 € | | | B0168.12512 | F | 25 | 6,6 | 11 | 12 | 7,6 | | | 20.04 € | |
|
