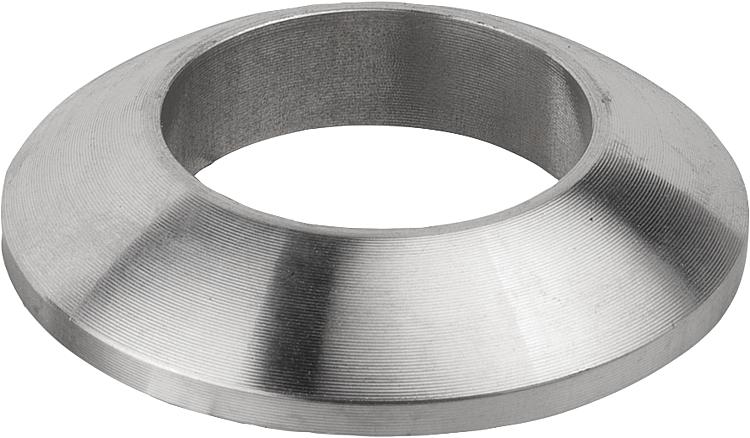

B0197Spherical washers, Form C DIN 6319, edition 10/01 |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Mild steel or stainless steel.Version:Case-hardened steel, manganese-phosphated.
Case-hardened depth (450 HV 1) 0.2+0.2.
Surface hardness (550 + 100) HV 10
Stainless steel, bright.
Note:Conical seat Form G should be used over slots. DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Main
material | Surface finish
body | Form | G=thread / for thread | D1 | D2 | H | H1 | R1 | Load rating
max. kN
(static load only) | CAD | Acc. | Price | Order |
|---|
| B0197.105 | mild steel | case-hardened | C | M5 | 5,25 | 10,5 | 2 | 0,4 | 7,5 | 6,5 |  | | 0.43 € | | | B0197.106 | mild steel | case-hardened | C | M6 | 6,4 | 12 | 2,3 | 0,7 | 9 | 9 | | | 0.34 € | | | B0197.108 | mild steel | case-hardened | C | M8 | 8,4 | 17 | 3,2 | 0,6 | 12 | 17 | | | 0.36 € | | | B0197.110 | mild steel | case-hardened | C | M10 | 10,5 | 21 | 4 | 0,8 | 15 | 26 | | | 0.54 € | | | B0197.112 | mild steel | case-hardened | C | M12 | 13 | 24 | 4,6 | 1,1 | 17 | 38 | | | 0.58 € | | | B0197.114 | mild steel | case-hardened | C | M14 | 15 | 28 | 5 | 1,2 | 22 | 53 | | | 0.89 € | | | B0197.116 | mild steel | case-hardened | C | M16 | 17 | 30 | 5,3 | 1,3 | 22 | 73 | | | 0.93 € | | | B0197.120 | mild steel | case-hardened | C | M20 | 21 | 36 | 6,3 | 2 | 27 | 117 | | | 1.32 € | | | B0197.124 | mild steel | case-hardened | C | M24 | 25 | 44 | 8,2 | 2,4 | 32 | 168 | | | 2.31 € | | | B0197.130 | mild steel | case-hardened | C | M30 | 31 | 56 | 11,2 | 3,6 | 41 | 269 | | | 3.88 € | | | B0197.136 | mild steel | case-hardened | C | M36 | 37 | 68 | 14 | 4,6 | 50 | 394 | | | 9.21 € | | | B0197.142 | mild steel | case-hardened | C | M42 | 43 | 78 | 17 | 6,5 | 58 | 542 | | | 13.08 € | | | B0197.148 | mild steel | case-hardened | C | M48 | 50 | 92 | 21 | 8 | 67 | 714 | | | 19.52 € | | | B0197.156 | mild steel | case-hardened | C | - | 58 | 103 | 23 | 9,5 | 79 | 960 | | | 33.29 € | | | B0197.164 | mild steel | case-hardened | C | - | 66 | 120 | 27 | 12 | 93 | 1269 | | | 45.14 € | | | B0197.0106 | stainless steel | bright | C | M6 | 6,4 | 12 | 2,3 | 0,7 | 9 | 6 | | | 1.00 € | | | B0197.0108 | stainless steel | bright | C | M8 | 8,4 | 17 | 3,2 | 0,6 | 12 | 12 | | | 1.42 € | | | B0197.0110 | stainless steel | bright | C | M10 | 10,5 | 21 | 4 | 0,8 | 15 | 16 | | | 1.93 € | | | B0197.0112 | stainless steel | bright | C | M12 | 13 | 24 | 4,6 | 1,1 | 17 | 24 | | | 2.28 € | | | B0197.0116 | stainless steel | bright | C | M16 | 17 | 30 | 5,3 | 1,3 | 22 | 45 | | | 3.51 € | | | B0197.0120 | stainless steel | bright | C | M20 | 21 | 36 | 6,3 | 2 | 27 | 71 | | | 4.84 € | | | B0197.0124 | stainless steel | bright | C | M24 | 25 | 44 | 8,2 | 2,4 | 32 | 105 | | | 7.71 € | | | B0197.0130 | stainless steel | bright | C | M30 | 31 | 56 | 11,2 | 3,6 | 41 | 191 | | | 12.54 € | | | B0197.0136 | stainless steel | bright | C | M36 | 37 | 68 | 14 | 4,6 | 50 | - | | | 19.06 € | | | B0197.0142 | stainless steel | bright | C | M42 | 43 | 78 | 17 | 6,5 | 58 | - | | | 36.74 € | | | B0197.0148 | stainless steel | bright | C | M48 | 50 | 92 | 21 | 8 | 67 | - | | | 53.46 € | |
