B0197Conical seats Form D DIN 6319, edition 10/01 |
go back |
|

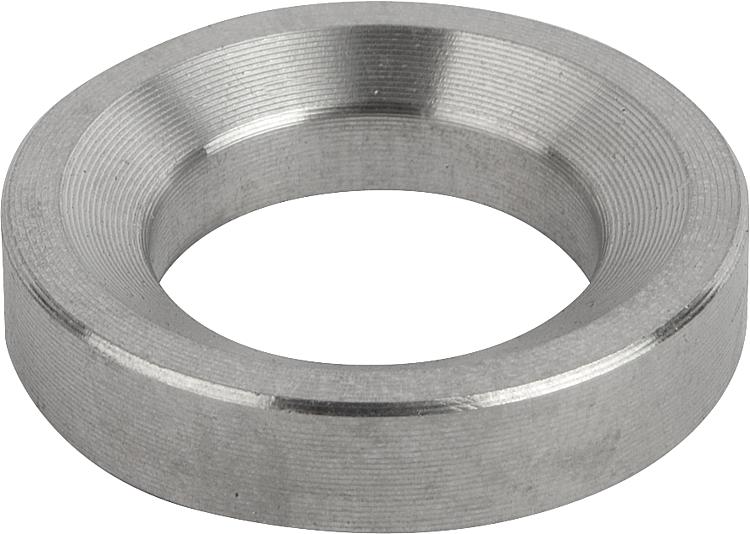

Item description/product images |
|
|
DescriptionMaterial:Mild steel or stainless steel.
Form G high carbon steel tempered to HV 390 ±40.Version:Steel version case hardened.
Stainless steel version bright, not hardened.Note:Conical seat Form G should be used over slots.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Main
material | Form | D1 | D2 | D5 | H | H2 | Load rating
max. kN
(static load only) | CAD | Acc. | Price | Order |
|---|
| B0197.205 | mild steel | D | 6 | 10,5 | 9,25 | 2,1 | 3,1 | 6,5 |  | | 0.41 € | | | B0197.206 | mild steel | D | 7,1 | 12 | 11 | 2,8 | 4,2 | 9 | | | 0.34 € | | | B0197.208 | mild steel | D | 9,6 | 17 | 14,5 | 3,5 | 5,6 | 17 | | | 0.38 € | | | B0197.210 | mild steel | D | 12 | 21 | 18,5 | 4,2 | 6,5 | 26 | | | 0.54 € | | | B0197.212 | mild steel | D | 14,2 | 24 | 20 | 5 | 8 | 38 | | | 0.58 € | | | B0197.214 | mild steel | D | 16,5 | 28 | 24,8 | 5,6 | 8,5 | 53 | | | 0.94 € | | | B0197.216 | mild steel | D | 19 | 30 | 26 | 6,2 | 9,5 | 73 | | | 0.97 € | | | B0197.220 | mild steel | D | 23,2 | 36 | 31 | 7,5 | 11,7 | 117 | | | 1.48 € | | | B0197.224 | mild steel | D | 28 | 44 | 37 | 9,5 | 15,2 | 168 | | | 2.47 € | | | B0197.230 | mild steel | D | 35 | 56 | 49 | 12 | 19,2 | 269 | | | 4.08 € | | | B0197.236 | mild steel | D | 42 | 68 | 60 | 15 | 23,5 | 394 | | | 9.31 € | | | B0197.242 | mild steel | D | 49 | 78 | 70 | 18 | 29 | 542 | | | 12.96 € | | | B0197.248 | mild steel | D | 56 | 92 | 82 | 22 | 35,5 | 714 | | | 19.43 € | | | B0197.256 | mild steel | D | 65 | 103 | 92 | 25 | 39,7 | 960 | | | 32.81 € | | | B0197.264 | mild steel | D | 75 | 120 | 110 | 30 | 46,5 | 1269 | | | 44.48 € | | | B0197.0206 | stainless steel | D | 7,1 | 12 | 11 | 2,8 | 4,2 | 6 | | | 1.00 € | | | B0197.0208 | stainless steel | D | 9,6 | 17 | 14,5 | 3,5 | 5,6 | 12 | | | 1.45 € | | | B0197.0210 | stainless steel | D | 12 | 21 | 18,5 | 4,2 | 6,5 | 16 | | | 1.93 € | | | B0197.0212 | stainless steel | D | 14,2 | 24 | 20 | 5 | 8 | 24 | | | 2.29 € | | | B0197.0216 | stainless steel | D | 19 | 30 | 26 | 6,2 | 9,5 | 45 | | | 3.52 € | | | B0197.0220 | stainless steel | D | 23,2 | 36 | 31 | 7,5 | 11,7 | 71 | | | 4.89 € | | | B0197.0224 | stainless steel | D | 28 | 44 | 37 | 9,5 | 15,2 | 105 | | | 7.78 € | | | B0197.0230 | stainless steel | D | 35 | 56 | 49 | 12 | 19,2 | 191 | | | 12.78 € | | | B0197.0236 | stainless steel | D | 42 | 68 | 60 | 15 | 23,5 | - | | | 19.13 € | | | B0197.0242 | stainless steel | D | 49 | 78 | 70 | 18 | 29 | - | | | 36.44 € | | | B0197.0248 | stainless steel | D | 56 | 92 | 82 | 22 | 35,5 | - | | | 52.39 € | |
