B0200

Levelling sets with locknut

go back

Products
- Product overview
  - Locating elements, stop elements, support elements
    - Height adjustment elements
      - Levelling sets with locknut

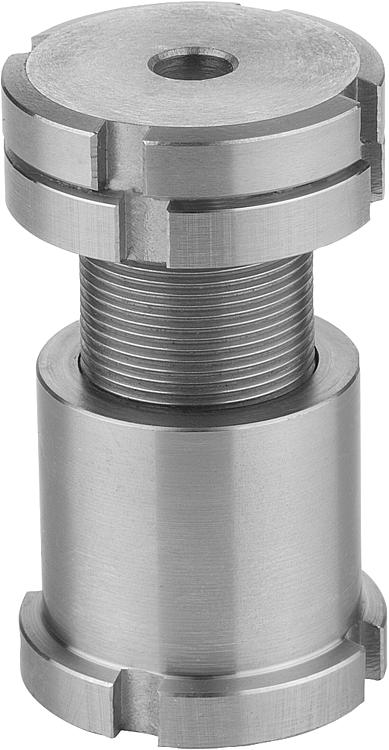

Item description/product images

DescriptionMaterial:

Steel 1.7225.
Stainless steel 1.4305.

Version:Seel version trivalent blue passivated.
Stainless steel version bright.Note:Levelling sets are used for mounting, levelling and aligning motors, aggregates, drive units and assembly lines. The locknut secures a prescribed setting. Other sizes available on request.
The static additional load F1 is effective after deducting the tensioning force (screw 8.8, µm = 0.125) from the total load F.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet B0200 Levelling sets with locknut

204 kB

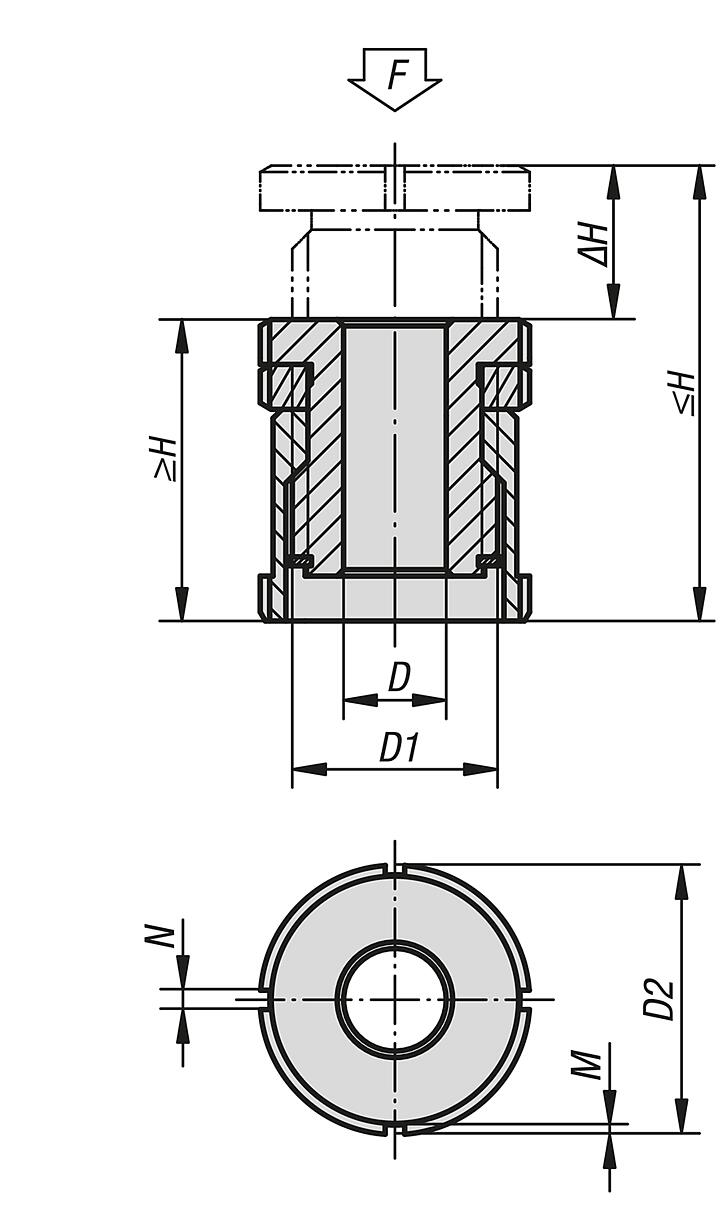

Drawings

Item selection/filter

Order No.	Main material	D	for screw	D1	D2	H min.	H max.	ΔH	N	M	F kN	F1 kN	Price
B0200.01004	QT steel	4,5	M4	M15x1	25	33	43	10	4	2	40	36	40.85 €
B0200.01005	QT steel	5,5	M5	M15x1	25	33	43	10	4	2	40	33,4	38.40 €
B0200.01006	QT steel	6,6	M6	M15x1	25	33	43	10	4	2	40	30,7	38.40 €
B0200.01406	QT steel	6,6	M6	M20x1	32	41	55	14	4	2	65	55,7	41.69 €
B0200.01408	QT steel	9	M8	M20x1	32	41	55	14	4	2	65	48	41.69 €
B0200.01410	QT steel	11	M10	M20x1	32	41	55	14	4	2	65	37,9	41.69 €
B0200.01810	QT steel	11	M10	M30x1,5	45	49	67	18	5	2	120	92,9	45.01 €
B0200.01812	QT steel	13,5	M12	M30x1,5	45	49	67	18	5	2	120	80,4	45.01 €
B0200.01816	QT steel	17,5	M16	M30x1,5	45	49	67	18	5	2	120	45,5	45.01 €
B0200.02316	QT steel	17,5	M16	M40x1,5	58	63	86	23	6	2,5	210	136	53.05 €
B0200.02320	QT steel	22	M20	M40x1,5	58	63	86	23	6	2,5	210	90	55.17 €
B0200.02324	QT steel	26	M24	M40x1,5	58	63	86	23	6	2,5	210	37	55.17 €
B0200.02920	QT steel	22	M20	M50x1,5	70	77	106	29	6	2,5	330	210	106.81 €
B0200.02924	QT steel	26	M24	M50x1,5	70	77	106	29	6	2,5	330	157	106.81 €
B0200.02930	QT steel	33	M30	M50x1,5	70	77	106	29	6	2,5	330	53	102.73 €
B0200.010041	stainless steel	4,5	M4	M15x1	25	33	43	10	4	2	27,1	24,14	60.28 €
B0200.010051	stainless steel	5,5	M5	M15x1	25	33	43	10	4	2	27,1	22,24	60.28 €
B0200.010061	stainless steel	6,6	M6	M15x1	25	33	43	10	4	2	27,1	20,26	60.28 €
B0200.014061	stainless steel	6,6	M6	M20x1	32	41	55	14	4	2	43,4	36,56	69.80 €
B0200.014081	stainless steel	9	M8	M20x1	32	41	55	14	4	2	43,4	30,86	69.80 €
B0200.014101	stainless steel	11	M10	M20x1	32	41	55	14	4	2	43,4	23,41	69.80 €
B0200.018101	stainless steel	11	M10	M30x1,5	45	49	67	18	5	2	84	64,01	81.90 €
B0200.018121	stainless steel	13,5	M12	M30x1,5	45	49	67	18	5	2	84	54,82	81.90 €
B0200.018161	stainless steel	17,5	M16	M30x1,5	45	49	67	18	5	2	84	28,9	81.90 €
B0200.023161	stainless steel	17,5	M16	M40x1,5	58	63	86	23	6	2,5	148	92,9	102.73 €
B0200.023201	stainless steel	22	M20	M40x1,5	58	63	86	23	6	2,5	148	59,08	102.73 €
B0200.023241	stainless steel	26	M24	M40x1,5	58	63	86	23	6	2,5	148	20,3	102.73 €
B0200.029201	stainless steel	22	M20	M50x1,5	70	77	106	29	6	2,5	225	136,08	187.35 €
B0200.029241	stainless steel	26	M24	M50x1,5	70	77	106	29	6	2,5	225	97,3	187.35 €
B0200.029301	stainless steel	33	M30	M50x1,5	70	77	106	29	6	2,5	225	20,6	187.35 €
