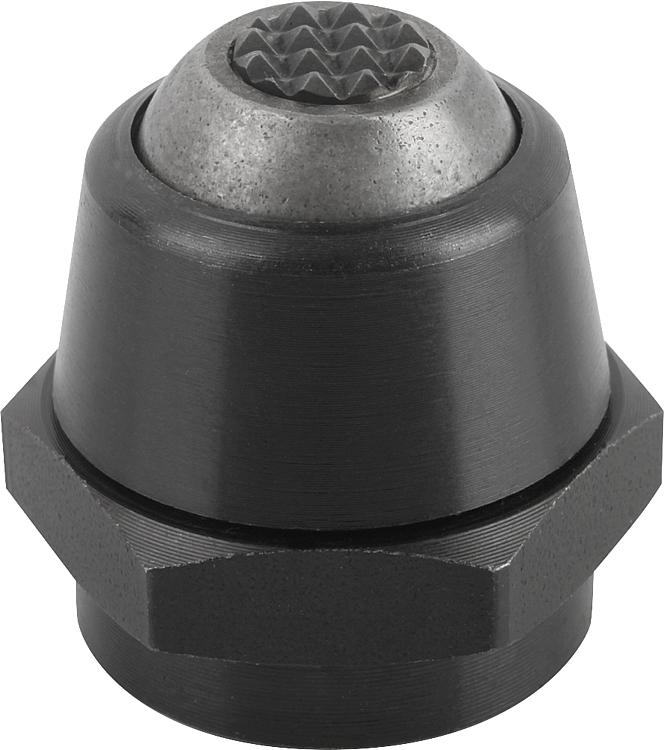

B0148Self-aligning pads, swivel angle 14° and 20°, Form M, flattened... |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Body steel.
Ball rust and acid resistant steel.
Form M with carbide insert.Version:Body black oxidised.
Ball bright.Note:Self-aligning pads are used to support and clamp unmachined and machined workpieces. They also serve as stops, supports and thrust pads in fixture and toolmaking.
Grub screws or threaded studs can be screwed and glued into thread D2 making a self-aligning pad with external thread.
Ball secured against rotation.Advantages:- Self-aligning pads can be swiveled.
- High load forces can be absorbed.
- The built-in o-ring keeps dirt and foreign particles out, which in turn guarantees reliable operation.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | Form | α | D1 | D2 | D3 | D4 | H | H1 | H2 | E | T | Ball-Ø | SW | Load rating
max. kN
(static load only) | CAD | Acc. | Price | Order |
|---|
| B0148.9061 | M | 14° | 12 | M6 | 7 | 6,35 | 17,5 | 0,6 | 12,5 | 19,6 | 6 | 10 | 17 | 14 |  | | 69.83 € | | | B0148.906 | M | 14° | 16 | M6 | 7 | 6,35 | 17,5 | 0,6 | - | 19,6 | 6 | 10 | 17 | 14 | | | 69.71 € | | | B0148.908 | M | 20° | 22 | M8 | 11 | 7,5 | 26 | 0,8 | - | 27,7 | 9 | 16 | 24 | 34 | | | 69.71 € | | | B0148.9101 | M | 20° | 18 | M10 | 11 | 7,5 | 26 | 0,8 | 20 | 27,7 | 9 | 16 | 24 | 34 | | | 90.06 € | | | B0148.910 | M | 20° | 22 | M10 | 11 | 7,5 | 26 | 0,8 | - | 27,7 | 9 | 16 | 24 | 34 | | | 89.66 € | | | B0148.912 | M | 20° | 22 | M12 | 11 | 7,5 | 26 | 0,8 | - | 27,7 | 9 | 16 | 24 | 34 | | | 89.66 € | | | B0148.9161 | M | 20° | 26 | M16 | 18 | 12,7 | 40 | 0,9 | 30 | 41,6 | 15 | 25 | 36 | 90 | | | 116.27 € | | | B0148.916 | M | 20° | 34 | M16 | 18 | 12,7 | 40 | 0,9 | - | 41,6 | 15 | 25 | 36 | 90 | | | 116.24 € | | | B0148.920 | M | 20° | 34 | M20 | 18 | 12,7 | 40 | 0,9 | - | 41,6 | 15 | 25 | 36 | 90 | | | 116.24 € | |
